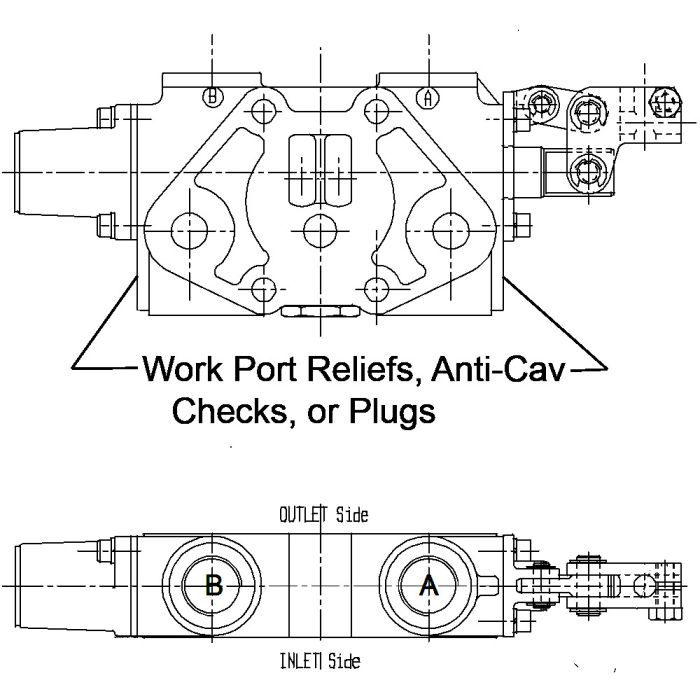

Salami VD10A-VD12A PP Kit 1/8 NPT PortS

This kit is good for a flow rating of 32 GPM.

For flow, the VD10A series PP kit is rated at 32 GPM, so it matches a 32 GPM system on paper.

4,000 PSI is the rated maximum on the P ports, so 3,800 PSI puts you comfortably inside that range. The A and B ports are rated even higher at 4,500 PSI. Technical data for this kit was validated using mineral oil at 16 cSt viscosity, so that fluid choice lines up well with how it was tested. Just keep your contamination level at ISO 4406 19/16 or cleaner and your viscosity between 12 and 75 cSt for best results.

Yes, this kit is specifically made for the Salami VD10A and VD12A series valves.

Ports A and B are rated to 4500 PSI, and the pressure port P is rated to 4000 PSI. Keep in mind the outlet port T has a maximum back pressure of 363 PSI, so that side needs a little more attention when you're sizing out the rest of the circuit. Those numbers are based on testing with mineral oil at 16 cSt viscosity and a contamination level of 19/16 per ISO 4406.

For ports, this kit is set up with 1/8 NPT connections. On pressure limits, the VD10A series data calls out 4000 PSI max on the “P” port, and 4500 PSI max on the “A” and “B” ports.
