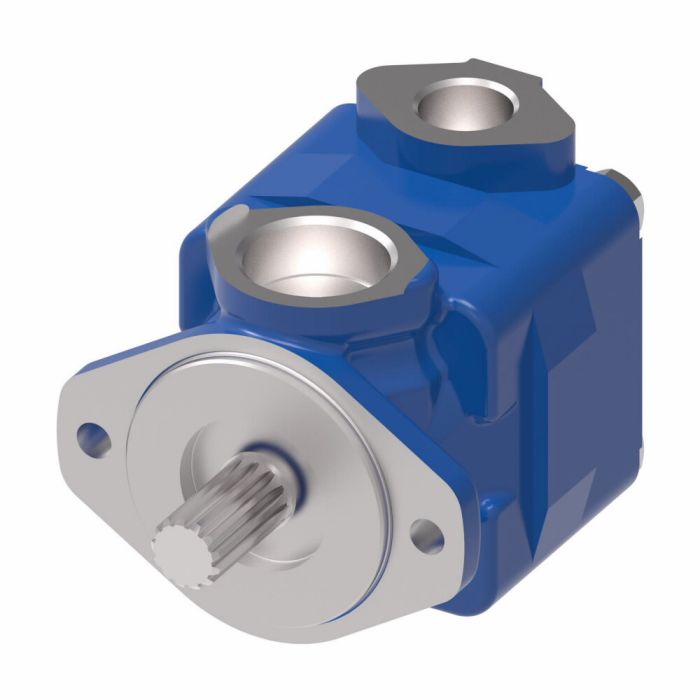

V20F Series Vane Pump, 11 Ring Size, 11 Tooth .590 Dia Shorter Length Shaft, Outlet Opposite inlet (A), CCW Rotation

Ask A Question
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.22
Displacement
2.22
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Maximum Pressure
2500
Maximum Pressure
2500
Port Location
Opposite inlet (A)
Rated Flow
8
Rated Flow
8
Relief Setting
2000
Ring Size
11
Ring Size
11
Rotation
CCW
Seal Material
Buna-N
Series
V20
Shaft
11 Tooth .590 Dia Shorter Length
Shaft
11 Tooth .590 Dia Shorter Length
Special Features
None
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
02-141809-5
Alternate Part Numbers
Alternate Part Number C1FH73, Alternate Part Number V20F1P11P38A8H22L
Product Weight
21.47 lbs
Product Questions & Answers 1

Product Questions & Answers

pump runs counterclockwise on my rig, this one set up that way from the factory or do I have to change something?
Question by: Marvin E on Nov 25, 2025, 5:31 PM
CCW rotation is factory set on this unit, so no changes needed on your end. That's how it ships and how it's meant to run. Just make sure your drive source matches that direction before you bolt it up, and you're good to go.
Answer by: Customer Support on Nov 27, 2025, 6:54 AM

Similar Products

Part Number Model Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Buy Now
02-141809-5 V20F-1P11P-38A8H-22L 11 Tooth .590 Dia Shorter Length 2.22 11 8 Opposite inlet (A) CCW 2500 2500 RPM
02-141854-7 V20F-1P13P-38C8H22L 11 Tooth .590 Dia Shorter Length 2.59 13 8 In-line with inlet (C) CCW 2200 2400 RPM
720AR00347A V20F-1P13P-38D6L-22 11 Tooth .590 Dia Shorter Length 2.59 13 6 90 Deg. CW from inlet (D) CW 2200 2400 RPM
720AR00348A V20F-1P13P-38C6L-22L 11 Tooth .590 Dia Shorter Length 2.59 13 6 In-line with inlet © CCW 2200 2400 RPM
720AR00349A V20F-1P13P-38D8L-22 11 Tooth .590 Dia Shorter Length 2.59 13 8 90 Deg. CW from inlet (D) CW 2200 2400 RPM
720AR00350A V20F-1P13P-38D8L-22L 11 Tooth .590 Dia Shorter Length 2.59 13 8 90 Deg. CW from inlet (D) CCW 2200 2400 RPM
