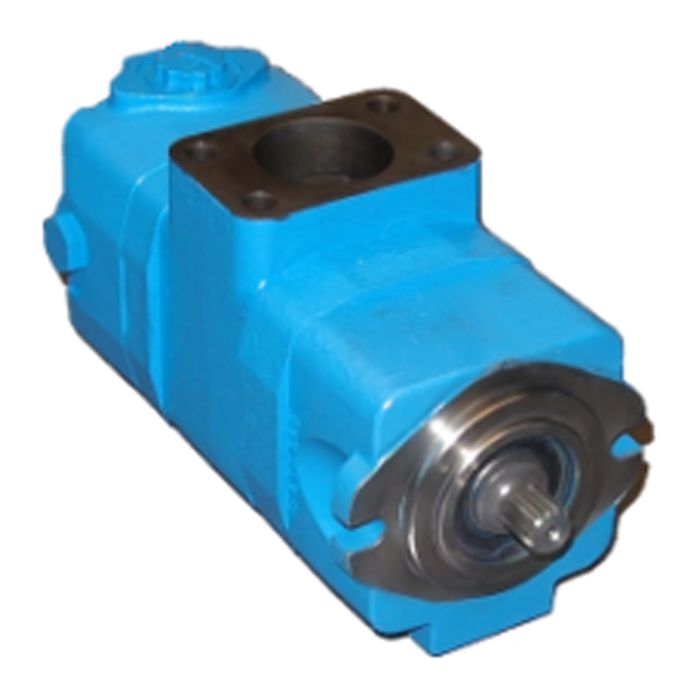

V2020 Series Double Vane Pumps, Up To 19.5/16.5 GPM @ 1800 RPM, Up To 2500 PSI, Up To 2800 RPM
Features |
Vickers balanced vane construction. Buna-N seals are standard, Viton seals are available as an option. Shaft rotation can be changed by changing the assembly of internal parts. |
Ports |
Inlet: 2 inch Code 61 Flange. Front Pump (Shaft End) Outlet: SAE-12 Straight Thread. Rear Pump (Cover End Outlet: SAE-12 Straight Thread. |
Products
| Part Number | Model Number | Shaft | Mount | Displacement | Ring Size | Rated Flow | Maximum Pressure | Speed Rating | Rotation | Rear Displacement | Front Displacement | Rear Rated Flow | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02-143649-3 | V2020-1F9S9S-11CC30-063 | 13 Tooth Splined | 2-bolt SAE B | 09/09 | 13.5 | 2500 | 2800 RPM | CW | 1.81 | 1.81 | 13.5 |
|
