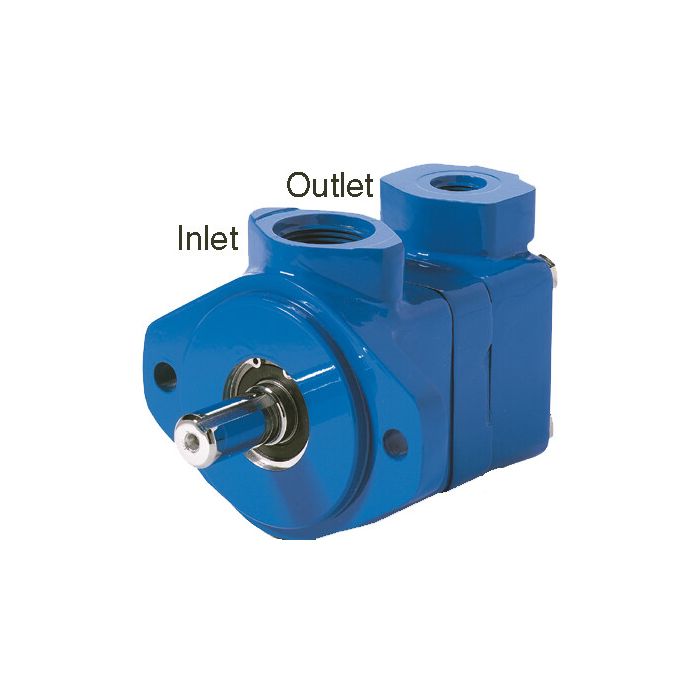

V10 Series Vane Pump, 06 Ring Size, 3/4 Straight Keyed Shaft, SAE Ports, Outlet Opposite Inlet Port, CW Rotation
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Port Location
Opposite Inlet Port
Supplier Part Number
387500-1
Reckon this'd be alright for a dump truck application?
Question by: Harold B on Oct 31, 2025, 11:34 AM
This V10 series vane pump is indeed well-suited for mobile equipment such as dump trucks, as mentioned in the product description.
Answer by: Customer Support on Nov 2, 2025, 10:59 AM
Got a plastic injection molding machine that's been running loud and we're looking to swap out the pump. This a good fit for that kind of application, and what's the flow rate we'd be working with?
Question by: Harvey E on Apr 7, 2025, 11:58 AM
Noise reduction is actually one of the stronger suits of this pump. The pressure-balanced 12-vane design keeps both sound levels and flow pulsation noticeably lower than a lot of comparable pumps, which makes it a solid choice for injection molding environments where that stuff matters. Rated flow on this unit comes in at 9 GPM, and it'll handle up to 2,200 PSI with a max speed of 3,000 RPM. Displacement is 1.19. For a medium-duty molding setup, those numbers land in a reasonable range.
Answer by: Customer Support on Apr 9, 2025, 11:37 AM
got a setup that needs the outlet on the opposite side from the inlet. is that how this one’s built?
Question by: Larry M on Feb 1, 2026, 2:59 PM
Porting is set up with the outlet opposite the inlet on this model, and it uses SAE straight thread connections. The inlet is 1-5/16-12 straight thread and the outlet is 3/4-16 straight thread.
Answer by: Customer Support on Feb 2, 2026, 6:09 PM
Similar Products
Part Number
Model Number
Shaft
Ports
Displacement
Ring Size
Rated Flow
Rotation
Maximum Pressure
Speed Rating
Price
Buy Now
375655-3
V10-1P1P-1C20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-3
V10-1P1P-11C20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382074-4
V10-1S5S-1D20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382075-3
V10-1P2P-1C20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
382077-3
V10-1P3P-1C20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382082-3
V10-1P4P-1C20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-5
V10-1P4P-1A20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382084-3
V10-1P5P-1C20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-5
V10-1P5P-1A20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-2
V10-1P5P-11B20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382085-3
V10-1P5P-11C20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382086-3
V10-1P6P-1C20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382087-3
V10-1P7P-1C20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382095-4
V10-1S7S-1D20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
390099-3
V10-1S4S-11C20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
401055-3
V10-1S7S-12C20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
576291-2
V10-1P5P-38B20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
586405-3
V10-1P7P-38C20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
588681-3
V10-1S1S-11C20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
591059-7
V10-1P4P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
719AR00014A
V10-6S7S-12C20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
719AR00056A
V10-6S7S-12C20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
382062-3
V10-1P7P-11C20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
390099-7
V10-1S4S-11C20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
02-335181-3
V10-6S4S-12C20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
02-335181-5
V10-6S4S-12A20-LH
13 Tooth SAE B Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
02-346573-3
V10-6S5S-12C20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
02-346573-5
V10-6S5S-12A20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
02-346573-7
V10-6S5S-12C20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
02-347564-5
V10-6S3S-12A20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
02-347564-7
V10-6S3S-12C20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
02-347567-3
V10-6S6S-12C20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
02-347567-5
V10-6S6S-12A20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
02-347567-7
V10-6S6S-12C20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
02-348752-3
V10-6S2S-12C20
13 Tooth SAE B Splined
SAE
0.4
02
3
CW
2500
4500 RPM
02-348752-7
V10-6S2S-12C20-LH
13 Tooth SAE B Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
375655-2
V10-1P1P-1B20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
375655-4
V10-1P1P-1D20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
375655-5
V10-1P1P-1A20-LH
3/4 Straight Keyed
NPT
0.2
01
1.55
CCW
2500
4800 RPM
375655-7
V10-1P1P-1C20-LH
3/4 Straight Keyed
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-2
V10-1P1P-11B20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-4
V10-1P1P-11D20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-5
V10-1P1P-11A20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-6
V10-1P1P-11B20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-7
V10-1P1P-11C20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-8
V10-1P1P-11D20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382062-2
V10-1P7P-11B20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382062-4
V10-1P7P-11D20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382062-5
V10-1P7P-11A20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-6
V10-1P7P-11B20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-7
V10-1P7P-11C20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-8
V10-1P7P-11D20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382063-2
V10-1S2S-1B20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-3
V10-1S2S-1C20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-4
V10-1S2S-1D20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-5
V10-1S2S-1A20-LH
3/4 Straight Keyed
SAE
0.4
02
3
CCW
2500
4500 RPM
382063-7
V10-1S2S-1C20-LH
3/4 Straight Keyed
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-2
V10-1S2S-11B20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-3
V10-1S2S-11C20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-4
V10-1S2S-11D20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-5
V10-1S2S-11A20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-6
V10-1S2S-11B20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-7
V10-1S2S-11C20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382067-2
V10-1S3S-1B20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-3
V10-1S3S-1C20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-4
V10-1S3S-1D20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-5
V10-1S3S-1A20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-6
V10-1S3S-1B20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-7
V10-1S3S-1C20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-8
V10-1S3S-1D20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-2
V10-1S3S-11B20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-3
V10-1S3S-11C20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-4
V10-1S3S-11D20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-5
V10-1S3S-11A20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-7
V10-1S3S-11C20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-8
V10-1S3S-11D20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382071-2
V10-1S4S-1B20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-3
V10-1S4S-1C20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-4
V10-1S4S-1D20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-5
V10-1S4S-1A20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-6
V10-1S4S-1B20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-7
V10-1S4S-1C20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-8
V10-1S4S-1D20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382073-3
V10-1S4S-12C20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
382073-7
V10-1S4S-12C20-LH
13 Tooth SAE B Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
382074-2
V10-1S5S-1B20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382074-3
V10-1S5S-1C20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382074-5
V10-1S5S-1A20-LH
3/4 Straight Keyed
SAE
1
05
7.5
CCW
2500
3200 RPM
382074-7
V10-1S5S-1C20-LH
3/4 Straight Keyed
SAE
1
05
7.5
CCW
2500
3200 RPM
382075-5
V10-1P2P-1A20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382075-6
V10-1P2P-1B20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382075-7
V10-1P2P-1C20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382077-2
V10-1P3P-1B20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382077-4
V10-1P3P-1D20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382077-5
V10-1P3P-1A20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-6
V10-1P3P-1B20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-7
V10-1P3P-1C20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-8
V10-1P3P-1D20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-2
V10-1P3P-11B20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-3
V10-1P3P-11C20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-4
V10-1P3P-11D20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-5
V10-1P3P-11A20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-7
V10-1P3P-11C20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-8
V10-1P3P-11D20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382082-2
V10-1P4P-1B20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-4
V10-1P4P-1D20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-6
V10-1P4P-1B20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382082-7
V10-1P4P-1C20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382084-2
V10-1P5P-1B20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-4
V10-1P5P-1D20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-6
V10-1P5P-1B20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382084-7
V10-1P5P-1C20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382084-8
V10-1P5P-1D20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-4
V10-1P5P-11D20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382085-5
V10-1P5P-11A20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-6
V10-1P5P-11B20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-7
V10-1P5P-11C20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-8
V10-1P5P-11D20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382086-2
V10-1P6P-1B20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382086-4
V10-1P6P-1D20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382086-5
V10-1P6P-1A20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-6
V10-1P6P-1B20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-7
V10-1P6P-1C20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-8
V10-1P6P-1D20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382087-2
V10-1P7P-1B20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382087-4
V10-1P7P-1D20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382087-5
V10-1P7P-1A20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382087-6
V10-1P7P-1B20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382087-7
V10-1P7P-1C20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382089-2
V10-1P3P-12B20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-3
V10-1P3P-12C20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-4
V10-1P3P-12D20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-5
V10-1P3P-12A20-LH
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382089-7
V10-1P3P-12C20-LH
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382092-2
V10-1S5S-11B20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-3
V10-1S5S-11C20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-4
V10-1S5S-11D20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-5
V10-1S5S-11A20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382092-6
V10-1S5S-11B20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382092-7
V10-1S5S-11C20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382093-2
V10-1S5S-12B20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-3
V10-1S5S-12C20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-4
V10-1S5S-12D20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-5
V10-1S5S-12A20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382093-7
V10-1S5S-12C20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382094-2
V10-1S6S-11B20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-3
V10-1S6S-11C20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-4
V10-1S6S-11D20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-5
V10-1S6S-11A20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382094-7
V10-1S6S-11C20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382094-8
V10-1S6S-11D20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382095-2
V10-1S7S-1B20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
382095-3
V10-1S7S-1C20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
382095-5
V10-1S7S-1A20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
382095-7
V10-1S7S-1C20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
382095-8
V10-1S7S-1D20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
383515-2
V10-1P4P-11B20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-3
V10-1P4P-11C20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-4
V10-1P4P-11D20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-5
V10-1P4P-11A20-LH
9 Tooth SAE A Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
383515-7
V10-1P4P-11C20-LH
9 Tooth SAE A Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
385857-2
V10-1S7S-11B20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-3
V10-1S7S-11C20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-4
V10-1S7S-11D20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-5
V10-1S7S-11A20-LH
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
385857-7
V10-1S7S-11C20-LH
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
386496-2
V10-1S1S-1B20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-3
V10-1S1S-1C20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-4
V10-1S1S-1D20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-5
V10-1S1S-1A20-LH
3/4 Straight Keyed
SAE
0.2
01
1.55
CCW
2500
4800 RPM
386496-7
V10-1S1S-1C20-LH
3/4 Straight Keyed
SAE
0.2
01
1.55
CCW
2500
4800 RPM
386931-2
V10-1P6P-11B20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-3
V10-1P6P-11C20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-4
V10-1P6P-11D20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-5
V10-1P6P-11A20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
386931-6
V10-1P6P-11B20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
386931-7
V10-1P6P-11C20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
387500-2
V10-1S6S-1B20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-3
V10-1S6S-1C20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-4
V10-1S6S-1D20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-5
V10-1S6S-1A20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-6
V10-1S6S-1B20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-7
V10-1S6S-1C20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-8
V10-1S6S-1D20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387516-2
V10-1S6S-12B20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-3
V10-1S6S-12C20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-4
V10-1S6S-12D20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-5
V10-1S6S-12A20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
387516-7
V10-1S6S-12C20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
390099-2
V10-1S4S-11B20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390099-4
V10-1S4S-11D20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390099-5
V10-1S4S-11A20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
390099-8
V10-1S4S-11D20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
390102-2
V10-1P2P-1B20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390102-3
V10-1P2P-1C20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390102-4
V10-1P2P-1D20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390902-2
V10-1P2P-11B20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-3
V10-1P2P-11C20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-4
V10-1P2P-11D20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-5
V10-1P2P-11A20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
390902-6
V10-1P2P-11B20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
390902-7
V10-1P2P-11C20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
393720-2
V10-1P3P-38B20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-3
V10-1P3P-38C20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-4
V10-1P3P-38D20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-5
V10-1P3P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
393720-7
V10-1P3P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
397926-2
V10-1S3S-12B20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-3
V10-1S3S-12C20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-4
V10-1S3S-12D20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-5
V10-1S3S-12A20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
397926-7
V10-1S3S-12C20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
397945-2
V10-1P6P-38B20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-3
V10-1P6P-38C20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-4
V10-1P6P-38D20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-5
V10-1P6P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
397945-7
V10-1P6P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
401055-2
V10-1S7S-12B20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401055-4
V10-1S7S-12D20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401055-5
V10-1S7S-12A20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401055-6
V10-1S7S-12B20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401055-7
V10-1S7S-12C20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401086-2
V10-1P5P-12B20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-3
V10-1P5P-12C20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-4
V10-1P5P-12D20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-5
V10-1P5P-12A20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401086-6
V10-1P5P-12B20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401086-7
V10-1P5P-12C20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401938-2
V10-1P4P-12B20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-3
V10-1P4P-12C20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-4
V10-1P4P-12D20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-5
V10-1P4P-12A20-LH
13 Tooth SAE B Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
401938-7
V10-1P4P-12C20-LH
13 Tooth SAE B Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
408629-2
V10-1P7P-12B20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-3
V10-1P7P-12C20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-4
V10-1P7P-12D20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-5
V10-1P7P-12A20-LH
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
408629-7
V10-1P7P-12C20-LH
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
452099-2
V10-1P2P-12B20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-3
V10-1P2P-12C20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-4
V10-1P2P-12D20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-5
V10-1P2P-12A20-LH
13 Tooth SAE B Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
452099-7
V10-1P2P-12C20-LH
13 Tooth SAE B Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
452380-2
V10-1S7S-38B20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-3
V10-1S7S-38C20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-4
V10-1S7S-38D20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-5
V10-1S7S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
452380-7
V10-1S7S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
452380-8
V10-1S7S-38D20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
502495-2
V10-1S3S-38B20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-3
V10-1S3S-38C20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-4
V10-1S3S-38D20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-5
V10-1S3S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
502495-6
V10-1S3S-38B20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
502495-7
V10-1S3S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
503071-2
V10-1S5S-38B20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-3
V10-1S5S-38C20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-4
V10-1S5S-38D20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-5
V10-1S5S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
503071-7
V10-1S5S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
574644-2
V10-1P6P-12B20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-3
V10-1P6P-12C20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-4
V10-1P6P-12D20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-5
V10-1P6P-12A20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574644-7
V10-1P6P-12C20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574644-8
V10-1P6P-12D20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574699-2
V10-1S4S-38B20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-3
V10-1S4S-38C20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-4
V10-1S4S-38D20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-5
V10-1S4S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574699-6
V10-1S4S-38B20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574699-7
V10-1S4S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574736-2
V10-1P2P-38B20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-3
V10-1P2P-38C20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-4
V10-1P2P-38D20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-5
V10-1P2P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
574736-7
V10-1P2P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
574768-2
V10-1P1P-38B20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-3
V10-1P1P-38C20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-4
V10-1P1P-38D20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-5
V10-1P1P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
574768-7
V10-1P1P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
576291-3
V10-1P5P-38C20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
576291-4
V10-1P5P-38D20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
576291-5
V10-1P5P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
576291-6
V10-1P5P-38B20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
576291-7
V10-1P5P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
579781-2
V10-1S6S-38B20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-3
V10-1S6S-38C20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-4
V10-1S6S-38D20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-5
V10-1S6S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
579781-7
V10-1S6S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
586405-2
V10-1P7P-38B20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
586405-4
V10-1P7P-38D20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
586405-5
V10-1P7P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-6
V10-1P7P-38B20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-7
V10-1P7P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-8
V10-1P7P-38D20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
588681-2
V10-1S1S-11B20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588681-4
V10-1S1S-11D20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588681-5
V10-1S1S-11A20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588681-7
V10-1S1S-11C20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588681-8
V10-1S1S-11D20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588684-2
V10-1S2S-38B20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-3
V10-1S2S-38C20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-4
V10-1S2S-38D20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-5
V10-1S2S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
588684-7
V10-1S2S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
591059-2
V10-1P4P-38B20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-3
V10-1P4P-38C20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-4
V10-1P4P-38D20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-5
V10-1P4P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
02-347564-1
V10-6S3S-12A20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
02-347567-1
V10-6S6S-12A20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
375655-1
V10-1P1P-1A20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-1
V10-1P1P-11A20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382062-1
V10-1P7P-11A20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382063-1
V10-1S2S-1A20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382065-1
V10-1S2S-11A20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382067-1
V10-1S3S-1A20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-1
V10-1S3S-11A20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382071-1
V10-1S4S-1A20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382073-1
V10-1S4S-12A20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
382074-1
V10-1S5S-1A20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382077-1
V10-1P3P-1A20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-1
V10-1P3P-11A20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382082-1
V10-1P4P-1A20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382084-1
V10-1P5P-1A20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382085-1
V10-1P5P-11A20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382086-1
V10-1P6P-1A20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382087-1
V10-1P7P-1A20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382089-1
V10-1P3P-12A20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382092-1
V10-1S5S-11A20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-1
V10-1S5S-12A20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382094-1
V10-1S6S-11A20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382095-1
V10-1S7S-1A20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
383515-1
V10-1P4P-11A20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
385857-1
V10-1S7S-11A20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
386496-1
V10-1S1S-1A20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386931-1
V10-1P6P-11A20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
387500-1
V10-1S6S-1A20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387516-1
V10-1S6S-12A20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
390099-1
V10-1S4S-11A20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390102-1
V10-1P2P-1A20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390902-1
V10-1P2P-11A20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
393720-1
V10-1P3P-38A20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
397926-1
V10-1S3S-12A20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397945-1
V10-1P6P-38A20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
401055-1
V10-1S7S-12A20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401086-1
V10-1P5P-12A20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401938-1
V10-1P4P-12A20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
408629-1
V10-1P7P-12A20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
452099-1
V10-1P2P-12A20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452380-1
V10-1S7S-38A20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
502495-1
V10-1S3S-38A20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
503071-1
V10-1S5S-38A20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
574644-1
V10-1P6P-12A20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574699-1
V10-1S4S-38A20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574736-1
V10-1P2P-38A20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574768-1
V10-1P1P-38A20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
576291-1
V10-1P5P-38A20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
579781-1
V10-1S6S-38A20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
586405-1
V10-1P7P-38A20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
588681-1
V10-1S1S-11A20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588684-1
V10-1S2S-38A20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
591059-1
V10-1P4P-38A20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
