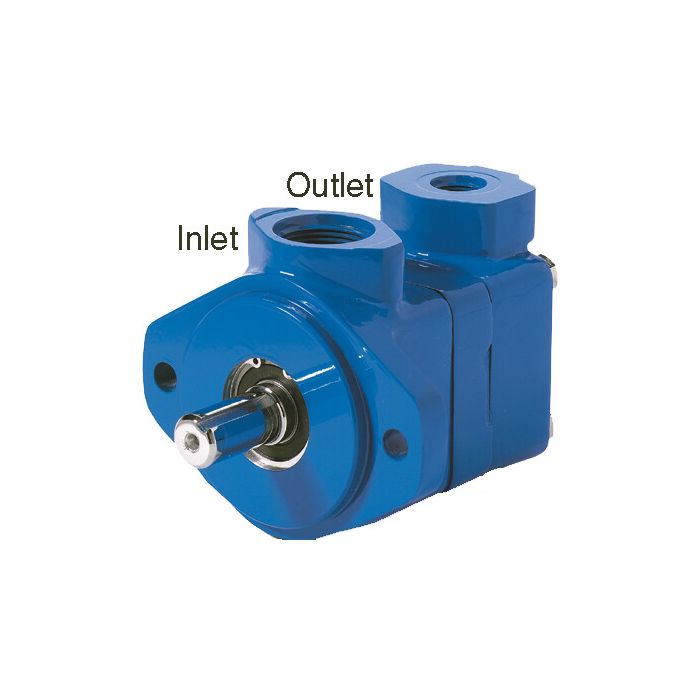

V10 Series Vane Pump, 03 Ring Size, 3/4 Straight Keyed Shaft, NPT Ports, Outlet in-Line with Inlet, CCW Rotation
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Brand
Danfoss (Power Solutions II LLC)
Brand
Danfoss Power Solutions
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Port Location
in-Line with Inlet
Supplier Part Number
382077-7
Alternate Part Numbers
Alternate Part Number
FMCHRP0004
runs on CCW rotation -- got a setup here that spins the wrong way for most pumps we've tried, would this one actually work for it?
Question by: Dale W on Oct 29, 2025, 7:46 PM
CCW is exactly what this pump runs. Counter-clockwise rotation is built into this unit, so if your system is already set up that way, you won't need to swap anything around or source an adapter. Just make sure your drive matches that direction and you're good to go.
Answer by: Customer Support on Oct 31, 2025, 6:23 AM
What kinda applications does this pump work for? I got a dump truck that needs a new one.
Question by: Phil B on Jun 17, 2025, 4:06 PM
This V10 series vane pump is used in oil and gas, metal cutting, plastic injection molding, dump trucks, and wheel loaders. So it sounds like it might be just what you need.
Answer by: Customer Support on Jun 19, 2025, 6:06 AM
got a setup that needs counter-clockwise rotation. is this pump actually CCW and not one of those that can go either way?
Question by: Rick P on Oct 11, 2025, 9:01 PM
Rotation is fixed as CCW for this model, so it matches a counter-clockwise requirement as specified.
Answer by: Customer Support on Oct 13, 2025, 11:50 AM
Similar Products
Part Number
Model Number
Shaft
Ports
Displacement
Ring Size
Rated Flow
Rotation
Maximum Pressure
Speed Rating
Price
Buy Now
375655-3
V10-1P1P-1C20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-3
V10-1P1P-11C20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382074-4
V10-1S5S-1D20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382075-3
V10-1P2P-1C20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
382077-3
V10-1P3P-1C20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382082-3
V10-1P4P-1C20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-5
V10-1P4P-1A20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382084-3
V10-1P5P-1C20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-5
V10-1P5P-1A20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-2
V10-1P5P-11B20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382085-3
V10-1P5P-11C20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382086-3
V10-1P6P-1C20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382087-3
V10-1P7P-1C20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382095-4
V10-1S7S-1D20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
390099-3
V10-1S4S-11C20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
401055-3
V10-1S7S-12C20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
576291-2
V10-1P5P-38B20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
586405-3
V10-1P7P-38C20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
588681-3
V10-1S1S-11C20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
591059-7
V10-1P4P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
719AR00014A
V10-6S7S-12C20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
719AR00056A
V10-6S7S-12C20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
382062-3
V10-1P7P-11C20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
390099-7
V10-1S4S-11C20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
02-335181-3
V10-6S4S-12C20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
02-335181-5
V10-6S4S-12A20-LH
13 Tooth SAE B Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
02-346573-3
V10-6S5S-12C20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
02-346573-5
V10-6S5S-12A20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
02-346573-7
V10-6S5S-12C20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
02-347564-5
V10-6S3S-12A20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
02-347564-7
V10-6S3S-12C20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
02-347567-3
V10-6S6S-12C20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
02-347567-5
V10-6S6S-12A20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
02-347567-7
V10-6S6S-12C20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
02-348752-3
V10-6S2S-12C20
13 Tooth SAE B Splined
SAE
0.4
02
3
CW
2500
4500 RPM
02-348752-7
V10-6S2S-12C20-LH
13 Tooth SAE B Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
375655-2
V10-1P1P-1B20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
375655-4
V10-1P1P-1D20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
375655-5
V10-1P1P-1A20-LH
3/4 Straight Keyed
NPT
0.2
01
1.55
CCW
2500
4800 RPM
375655-7
V10-1P1P-1C20-LH
3/4 Straight Keyed
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-2
V10-1P1P-11B20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-4
V10-1P1P-11D20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-5
V10-1P1P-11A20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-6
V10-1P1P-11B20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-7
V10-1P1P-11C20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-8
V10-1P1P-11D20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382062-2
V10-1P7P-11B20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382062-4
V10-1P7P-11D20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382062-5
V10-1P7P-11A20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-6
V10-1P7P-11B20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-7
V10-1P7P-11C20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-8
V10-1P7P-11D20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382063-2
V10-1S2S-1B20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-3
V10-1S2S-1C20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-4
V10-1S2S-1D20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-5
V10-1S2S-1A20-LH
3/4 Straight Keyed
SAE
0.4
02
3
CCW
2500
4500 RPM
382063-7
V10-1S2S-1C20-LH
3/4 Straight Keyed
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-2
V10-1S2S-11B20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-3
V10-1S2S-11C20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-4
V10-1S2S-11D20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-5
V10-1S2S-11A20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-6
V10-1S2S-11B20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-7
V10-1S2S-11C20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382067-2
V10-1S3S-1B20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-3
V10-1S3S-1C20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-4
V10-1S3S-1D20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-5
V10-1S3S-1A20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-6
V10-1S3S-1B20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-7
V10-1S3S-1C20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-8
V10-1S3S-1D20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-2
V10-1S3S-11B20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-3
V10-1S3S-11C20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-4
V10-1S3S-11D20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-5
V10-1S3S-11A20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-7
V10-1S3S-11C20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-8
V10-1S3S-11D20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382071-2
V10-1S4S-1B20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-3
V10-1S4S-1C20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-4
V10-1S4S-1D20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-5
V10-1S4S-1A20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-6
V10-1S4S-1B20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-7
V10-1S4S-1C20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-8
V10-1S4S-1D20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382073-3
V10-1S4S-12C20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
382073-7
V10-1S4S-12C20-LH
13 Tooth SAE B Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
382074-2
V10-1S5S-1B20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382074-3
V10-1S5S-1C20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382074-5
V10-1S5S-1A20-LH
3/4 Straight Keyed
SAE
1
05
7.5
CCW
2500
3200 RPM
382074-7
V10-1S5S-1C20-LH
3/4 Straight Keyed
SAE
1
05
7.5
CCW
2500
3200 RPM
382075-5
V10-1P2P-1A20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382075-6
V10-1P2P-1B20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382075-7
V10-1P2P-1C20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382077-2
V10-1P3P-1B20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382077-4
V10-1P3P-1D20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382077-5
V10-1P3P-1A20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-6
V10-1P3P-1B20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-7
V10-1P3P-1C20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-8
V10-1P3P-1D20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-2
V10-1P3P-11B20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-3
V10-1P3P-11C20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-4
V10-1P3P-11D20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-5
V10-1P3P-11A20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-7
V10-1P3P-11C20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-8
V10-1P3P-11D20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382082-2
V10-1P4P-1B20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-4
V10-1P4P-1D20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-6
V10-1P4P-1B20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382082-7
V10-1P4P-1C20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382084-2
V10-1P5P-1B20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-4
V10-1P5P-1D20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-6
V10-1P5P-1B20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382084-7
V10-1P5P-1C20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382084-8
V10-1P5P-1D20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-4
V10-1P5P-11D20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382085-5
V10-1P5P-11A20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-6
V10-1P5P-11B20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-7
V10-1P5P-11C20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-8
V10-1P5P-11D20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382086-2
V10-1P6P-1B20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382086-4
V10-1P6P-1D20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382086-5
V10-1P6P-1A20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-6
V10-1P6P-1B20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-7
V10-1P6P-1C20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-8
V10-1P6P-1D20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382087-2
V10-1P7P-1B20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382087-4
V10-1P7P-1D20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382087-5
V10-1P7P-1A20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382087-6
V10-1P7P-1B20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382087-7
V10-1P7P-1C20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382089-2
V10-1P3P-12B20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-3
V10-1P3P-12C20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-4
V10-1P3P-12D20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-5
V10-1P3P-12A20-LH
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382089-7
V10-1P3P-12C20-LH
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382092-2
V10-1S5S-11B20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-3
V10-1S5S-11C20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-4
V10-1S5S-11D20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-5
V10-1S5S-11A20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382092-6
V10-1S5S-11B20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382092-7
V10-1S5S-11C20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382093-2
V10-1S5S-12B20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-3
V10-1S5S-12C20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-4
V10-1S5S-12D20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-5
V10-1S5S-12A20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382093-7
V10-1S5S-12C20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382094-2
V10-1S6S-11B20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-3
V10-1S6S-11C20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-4
V10-1S6S-11D20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-5
V10-1S6S-11A20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382094-7
V10-1S6S-11C20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382094-8
V10-1S6S-11D20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382095-2
V10-1S7S-1B20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
382095-3
V10-1S7S-1C20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
382095-5
V10-1S7S-1A20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
382095-7
V10-1S7S-1C20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
382095-8
V10-1S7S-1D20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
383515-2
V10-1P4P-11B20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-3
V10-1P4P-11C20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-4
V10-1P4P-11D20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-5
V10-1P4P-11A20-LH
9 Tooth SAE A Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
383515-7
V10-1P4P-11C20-LH
9 Tooth SAE A Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
385857-2
V10-1S7S-11B20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-3
V10-1S7S-11C20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-4
V10-1S7S-11D20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-5
V10-1S7S-11A20-LH
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
385857-7
V10-1S7S-11C20-LH
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
386496-2
V10-1S1S-1B20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-3
V10-1S1S-1C20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-4
V10-1S1S-1D20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-5
V10-1S1S-1A20-LH
3/4 Straight Keyed
SAE
0.2
01
1.55
CCW
2500
4800 RPM
386496-7
V10-1S1S-1C20-LH
3/4 Straight Keyed
SAE
0.2
01
1.55
CCW
2500
4800 RPM
386931-2
V10-1P6P-11B20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-3
V10-1P6P-11C20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-4
V10-1P6P-11D20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-5
V10-1P6P-11A20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
386931-6
V10-1P6P-11B20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
386931-7
V10-1P6P-11C20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
387500-2
V10-1S6S-1B20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-3
V10-1S6S-1C20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-4
V10-1S6S-1D20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-5
V10-1S6S-1A20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-6
V10-1S6S-1B20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-7
V10-1S6S-1C20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-8
V10-1S6S-1D20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387516-2
V10-1S6S-12B20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-3
V10-1S6S-12C20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-4
V10-1S6S-12D20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-5
V10-1S6S-12A20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
387516-7
V10-1S6S-12C20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
390099-2
V10-1S4S-11B20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390099-4
V10-1S4S-11D20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390099-5
V10-1S4S-11A20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
390099-8
V10-1S4S-11D20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
390102-2
V10-1P2P-1B20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390102-3
V10-1P2P-1C20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390102-4
V10-1P2P-1D20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390902-2
V10-1P2P-11B20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-3
V10-1P2P-11C20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-4
V10-1P2P-11D20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-5
V10-1P2P-11A20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
390902-6
V10-1P2P-11B20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
390902-7
V10-1P2P-11C20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
393720-2
V10-1P3P-38B20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-3
V10-1P3P-38C20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-4
V10-1P3P-38D20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-5
V10-1P3P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
393720-7
V10-1P3P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
397926-2
V10-1S3S-12B20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-3
V10-1S3S-12C20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-4
V10-1S3S-12D20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-5
V10-1S3S-12A20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
397926-7
V10-1S3S-12C20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
397945-2
V10-1P6P-38B20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-3
V10-1P6P-38C20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-4
V10-1P6P-38D20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-5
V10-1P6P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
397945-7
V10-1P6P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
401055-2
V10-1S7S-12B20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401055-4
V10-1S7S-12D20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401055-5
V10-1S7S-12A20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401055-6
V10-1S7S-12B20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401055-7
V10-1S7S-12C20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401086-2
V10-1P5P-12B20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-3
V10-1P5P-12C20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-4
V10-1P5P-12D20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-5
V10-1P5P-12A20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401086-6
V10-1P5P-12B20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401086-7
V10-1P5P-12C20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401938-2
V10-1P4P-12B20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-3
V10-1P4P-12C20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-4
V10-1P4P-12D20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-5
V10-1P4P-12A20-LH
13 Tooth SAE B Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
401938-7
V10-1P4P-12C20-LH
13 Tooth SAE B Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
408629-2
V10-1P7P-12B20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-3
V10-1P7P-12C20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-4
V10-1P7P-12D20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-5
V10-1P7P-12A20-LH
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
408629-7
V10-1P7P-12C20-LH
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
452099-2
V10-1P2P-12B20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-3
V10-1P2P-12C20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-4
V10-1P2P-12D20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-5
V10-1P2P-12A20-LH
13 Tooth SAE B Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
452099-7
V10-1P2P-12C20-LH
13 Tooth SAE B Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
452380-2
V10-1S7S-38B20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-3
V10-1S7S-38C20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-4
V10-1S7S-38D20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-5
V10-1S7S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
452380-7
V10-1S7S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
452380-8
V10-1S7S-38D20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
502495-2
V10-1S3S-38B20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-3
V10-1S3S-38C20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-4
V10-1S3S-38D20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-5
V10-1S3S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
502495-6
V10-1S3S-38B20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
502495-7
V10-1S3S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
503071-2
V10-1S5S-38B20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-3
V10-1S5S-38C20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-4
V10-1S5S-38D20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-5
V10-1S5S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
503071-7
V10-1S5S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
574644-2
V10-1P6P-12B20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-3
V10-1P6P-12C20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-4
V10-1P6P-12D20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-5
V10-1P6P-12A20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574644-7
V10-1P6P-12C20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574644-8
V10-1P6P-12D20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574699-2
V10-1S4S-38B20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-3
V10-1S4S-38C20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-4
V10-1S4S-38D20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-5
V10-1S4S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574699-6
V10-1S4S-38B20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574699-7
V10-1S4S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574736-2
V10-1P2P-38B20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-3
V10-1P2P-38C20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-4
V10-1P2P-38D20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-5
V10-1P2P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
574736-7
V10-1P2P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
574768-2
V10-1P1P-38B20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-3
V10-1P1P-38C20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-4
V10-1P1P-38D20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-5
V10-1P1P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
574768-7
V10-1P1P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
576291-3
V10-1P5P-38C20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
576291-4
V10-1P5P-38D20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
576291-5
V10-1P5P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
576291-6
V10-1P5P-38B20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
576291-7
V10-1P5P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
579781-2
V10-1S6S-38B20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-3
V10-1S6S-38C20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-4
V10-1S6S-38D20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-5
V10-1S6S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
579781-7
V10-1S6S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
586405-2
V10-1P7P-38B20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
586405-4
V10-1P7P-38D20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
586405-5
V10-1P7P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-6
V10-1P7P-38B20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-7
V10-1P7P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-8
V10-1P7P-38D20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
588681-2
V10-1S1S-11B20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588681-4
V10-1S1S-11D20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588681-5
V10-1S1S-11A20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588681-7
V10-1S1S-11C20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588681-8
V10-1S1S-11D20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588684-2
V10-1S2S-38B20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-3
V10-1S2S-38C20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-4
V10-1S2S-38D20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-5
V10-1S2S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
588684-7
V10-1S2S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
591059-2
V10-1P4P-38B20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-3
V10-1P4P-38C20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-4
V10-1P4P-38D20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-5
V10-1P4P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
02-347564-1
V10-6S3S-12A20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
02-347567-1
V10-6S6S-12A20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
375655-1
V10-1P1P-1A20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-1
V10-1P1P-11A20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382062-1
V10-1P7P-11A20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382063-1
V10-1S2S-1A20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382065-1
V10-1S2S-11A20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382067-1
V10-1S3S-1A20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-1
V10-1S3S-11A20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382071-1
V10-1S4S-1A20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382073-1
V10-1S4S-12A20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
382074-1
V10-1S5S-1A20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382077-1
V10-1P3P-1A20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-1
V10-1P3P-11A20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382082-1
V10-1P4P-1A20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382084-1
V10-1P5P-1A20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382085-1
V10-1P5P-11A20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382086-1
V10-1P6P-1A20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382087-1
V10-1P7P-1A20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382089-1
V10-1P3P-12A20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382092-1
V10-1S5S-11A20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-1
V10-1S5S-12A20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382094-1
V10-1S6S-11A20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382095-1
V10-1S7S-1A20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
383515-1
V10-1P4P-11A20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
385857-1
V10-1S7S-11A20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
386496-1
V10-1S1S-1A20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386931-1
V10-1P6P-11A20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
387500-1
V10-1S6S-1A20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387516-1
V10-1S6S-12A20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
390099-1
V10-1S4S-11A20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390102-1
V10-1P2P-1A20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390902-1
V10-1P2P-11A20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
393720-1
V10-1P3P-38A20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
397926-1
V10-1S3S-12A20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397945-1
V10-1P6P-38A20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
401055-1
V10-1S7S-12A20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401086-1
V10-1P5P-12A20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401938-1
V10-1P4P-12A20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
408629-1
V10-1P7P-12A20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
452099-1
V10-1P2P-12A20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452380-1
V10-1S7S-38A20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
502495-1
V10-1S3S-38A20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
503071-1
V10-1S5S-38A20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
574644-1
V10-1P6P-12A20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574699-1
V10-1S4S-38A20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574736-1
V10-1P2P-38A20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574768-1
V10-1P1P-38A20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
576291-1
V10-1P5P-38A20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
579781-1
V10-1S6S-38A20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
586405-1
V10-1P7P-38A20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
588681-1
V10-1S1S-11A20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588684-1
V10-1S2S-38A20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
591059-1
V10-1P4P-38A20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
