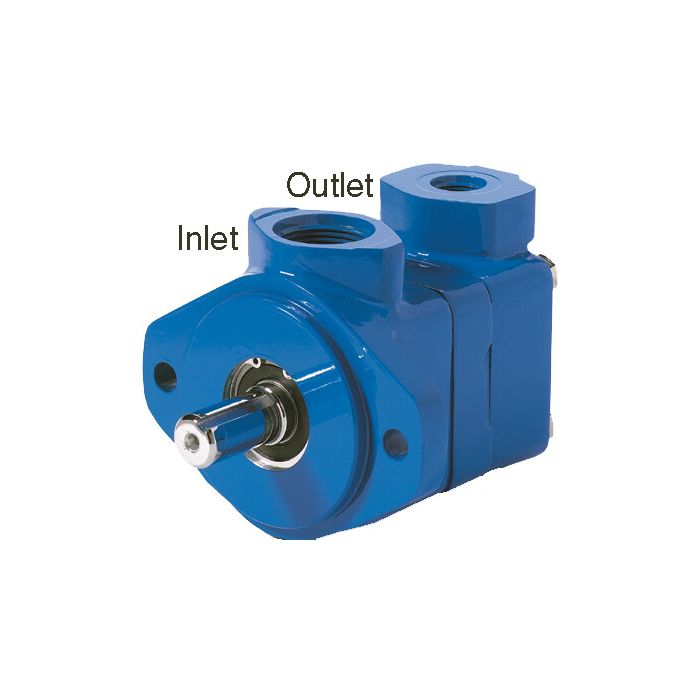

V10 Series Vane Pump, 02 Ring Size, 9 Tooth SAE A Splined Shaft, SAE Ports, Outlet in-Line with Inlet, CW Rotation
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Brand
Danfoss (Power Solutions II LLC)
Brand
Danfoss Power Solutions
Features
Pressure-balanced, modular 12-vane design|Reduces noise and flow pulsation|Wide range of available displacements
Port Location
in-Line with Inlet
Shaft
9 Tooth SAE A Splined
Supplier Part Number
382065-3
Alternate Part Numbers
Alternate Part Number
C1JZ48 ,
Alternate Part Number
V101S2S11C20
Reckon this pump'll hold up good on a dump truck application?
Question by: Tony G on May 14, 2025, 8:26 PM
This V10 series vane pump is definitely up to the task. It's designed for demanding industrial uses like dump trucks, wheel loaders, metal cutting, and plastic injection molding.
Answer by: Customer Support on May 16, 2025, 7:21 AM
got a pump spot that needs a clockwise rotation and the ports line up straight through. is this one set up that way?
Question by: Stan H on Sep 1, 2025, 9:54 AM
Clockwise rotation is the standard setup on this model, and the outlet is positioned in-line with the inlet. It also uses SAE straight thread ports, with a 1-5/16-12 inlet and a 3/4-16 outlet.
Answer by: Customer Support on Sep 2, 2025, 6:24 PM
got a V10 vane pump that's finally giving up the ghost on a dump truck circuit -- this one rated for that kind of work or is it more of a shop machine?
Question by: Randy C on May 2, 2025, 12:45 PM
Dump truck applications are actually one of the listed uses for this pump, so you're in the right place. It runs up to 2500 PSI and 4500 RPM, with a rated flow of 3 GPM. The 12-vane pressure-balanced design keeps noise and pulsation down, which matters on mobile equipment that runs regular cycles. Buna-N seals are standard, and mounting is 2-bolt SAE A or 2-bolt SAE B, so fitment on common truck setups is pretty straightforward.
Answer by: Customer Support on May 4, 2025, 6:08 AM
Similar Products
Part Number
Model Number
Shaft
Ports
Displacement
Ring Size
Rated Flow
Rotation
Maximum Pressure
Speed Rating
Price
Buy Now
375655-3
V10-1P1P-1C20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-3
V10-1P1P-11C20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382074-4
V10-1S5S-1D20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382075-3
V10-1P2P-1C20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
382077-3
V10-1P3P-1C20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382082-3
V10-1P4P-1C20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-5
V10-1P4P-1A20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382084-3
V10-1P5P-1C20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-5
V10-1P5P-1A20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-2
V10-1P5P-11B20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382085-3
V10-1P5P-11C20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382086-3
V10-1P6P-1C20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382087-3
V10-1P7P-1C20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382095-4
V10-1S7S-1D20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
390099-3
V10-1S4S-11C20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
401055-3
V10-1S7S-12C20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
576291-2
V10-1P5P-38B20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
586405-3
V10-1P7P-38C20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
588681-3
V10-1S1S-11C20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
591059-7
V10-1P4P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
719AR00014A
V10-6S7S-12C20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
719AR00056A
V10-6S7S-12C20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
382062-3
V10-1P7P-11C20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
390099-7
V10-1S4S-11C20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
02-335181-3
V10-6S4S-12C20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
02-335181-5
V10-6S4S-12A20-LH
13 Tooth SAE B Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
02-346573-3
V10-6S5S-12C20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
02-346573-5
V10-6S5S-12A20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
02-346573-7
V10-6S5S-12C20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
02-347564-5
V10-6S3S-12A20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
02-347564-7
V10-6S3S-12C20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
02-347567-3
V10-6S6S-12C20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
02-347567-5
V10-6S6S-12A20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
02-347567-7
V10-6S6S-12C20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
02-348752-3
V10-6S2S-12C20
13 Tooth SAE B Splined
SAE
0.4
02
3
CW
2500
4500 RPM
02-348752-7
V10-6S2S-12C20-LH
13 Tooth SAE B Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
375655-2
V10-1P1P-1B20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
375655-4
V10-1P1P-1D20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
375655-5
V10-1P1P-1A20-LH
3/4 Straight Keyed
NPT
0.2
01
1.55
CCW
2500
4800 RPM
375655-7
V10-1P1P-1C20-LH
3/4 Straight Keyed
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-2
V10-1P1P-11B20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-4
V10-1P1P-11D20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-5
V10-1P1P-11A20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-6
V10-1P1P-11B20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-7
V10-1P1P-11C20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382061-8
V10-1P1P-11D20-LH
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
382062-2
V10-1P7P-11B20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382062-4
V10-1P7P-11D20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382062-5
V10-1P7P-11A20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-6
V10-1P7P-11B20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-7
V10-1P7P-11C20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382062-8
V10-1P7P-11D20-LH
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382063-2
V10-1S2S-1B20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-3
V10-1S2S-1C20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-4
V10-1S2S-1D20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382063-5
V10-1S2S-1A20-LH
3/4 Straight Keyed
SAE
0.4
02
3
CCW
2500
4500 RPM
382063-7
V10-1S2S-1C20-LH
3/4 Straight Keyed
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-2
V10-1S2S-11B20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-3
V10-1S2S-11C20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-4
V10-1S2S-11D20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382065-5
V10-1S2S-11A20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-6
V10-1S2S-11B20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382065-7
V10-1S2S-11C20-LH
9 Tooth SAE A Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
382067-2
V10-1S3S-1B20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-3
V10-1S3S-1C20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-4
V10-1S3S-1D20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382067-5
V10-1S3S-1A20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-6
V10-1S3S-1B20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-7
V10-1S3S-1C20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382067-8
V10-1S3S-1D20-LH
3/4 Straight Keyed
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-2
V10-1S3S-11B20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-3
V10-1S3S-11C20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-4
V10-1S3S-11D20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-5
V10-1S3S-11A20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-7
V10-1S3S-11C20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382069-8
V10-1S3S-11D20-LH
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
382071-2
V10-1S4S-1B20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-3
V10-1S4S-1C20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-4
V10-1S4S-1D20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382071-5
V10-1S4S-1A20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-6
V10-1S4S-1B20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-7
V10-1S4S-1C20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382071-8
V10-1S4S-1D20-LH
3/4 Straight Keyed
SAE
0.8
04
6
CCW
2500
3400 RPM
382073-3
V10-1S4S-12C20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
382073-7
V10-1S4S-12C20-LH
13 Tooth SAE B Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
382074-2
V10-1S5S-1B20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382074-3
V10-1S5S-1C20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382074-5
V10-1S5S-1A20-LH
3/4 Straight Keyed
SAE
1
05
7.5
CCW
2500
3200 RPM
382074-7
V10-1S5S-1C20-LH
3/4 Straight Keyed
SAE
1
05
7.5
CCW
2500
3200 RPM
382075-5
V10-1P2P-1A20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382075-6
V10-1P2P-1B20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382075-7
V10-1P2P-1C20-LH
3/4 Straight Keyed
NPT
0.4
02
3
CCW
2500
4500 RPM
382077-2
V10-1P3P-1B20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382077-4
V10-1P3P-1D20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382077-5
V10-1P3P-1A20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-6
V10-1P3P-1B20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-7
V10-1P3P-1C20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382077-8
V10-1P3P-1D20-LH
3/4 Straight Keyed
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-2
V10-1P3P-11B20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-3
V10-1P3P-11C20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-4
V10-1P3P-11D20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-5
V10-1P3P-11A20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-7
V10-1P3P-11C20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382079-8
V10-1P3P-11D20-LH
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382082-2
V10-1P4P-1B20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-4
V10-1P4P-1D20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382082-6
V10-1P4P-1B20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382082-7
V10-1P4P-1C20-LH
3/4 Straight Keyed
NPT
0.8
04
6
CCW
2500
3400 RPM
382084-2
V10-1P5P-1B20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-4
V10-1P5P-1D20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382084-6
V10-1P5P-1B20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382084-7
V10-1P5P-1C20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382084-8
V10-1P5P-1D20-LH
3/4 Straight Keyed
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-4
V10-1P5P-11D20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382085-5
V10-1P5P-11A20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-6
V10-1P5P-11B20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-7
V10-1P5P-11C20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382085-8
V10-1P5P-11D20-LH
9 Tooth SAE A Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
382086-2
V10-1P6P-1B20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382086-4
V10-1P6P-1D20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382086-5
V10-1P6P-1A20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-6
V10-1P6P-1B20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-7
V10-1P6P-1C20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382086-8
V10-1P6P-1D20-LH
3/4 Straight Keyed
NPT
1.19
06
9
CCW
2200
3000 RPM
382087-2
V10-1P7P-1B20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382087-4
V10-1P7P-1D20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382087-5
V10-1P7P-1A20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382087-6
V10-1P7P-1B20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382087-7
V10-1P7P-1C20-LH
3/4 Straight Keyed
NPT
1.39
07
10.5
CCW
2000
2800 RPM
382089-2
V10-1P3P-12B20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-3
V10-1P3P-12C20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-4
V10-1P3P-12D20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382089-5
V10-1P3P-12A20-LH
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382089-7
V10-1P3P-12C20-LH
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
382092-2
V10-1S5S-11B20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-3
V10-1S5S-11C20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-4
V10-1S5S-11D20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382092-5
V10-1S5S-11A20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382092-6
V10-1S5S-11B20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382092-7
V10-1S5S-11C20-LH
9 Tooth SAE A Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382093-2
V10-1S5S-12B20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-3
V10-1S5S-12C20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-4
V10-1S5S-12D20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-5
V10-1S5S-12A20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382093-7
V10-1S5S-12C20-LH
13 Tooth SAE B Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
382094-2
V10-1S6S-11B20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-3
V10-1S6S-11C20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-4
V10-1S6S-11D20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382094-5
V10-1S6S-11A20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382094-7
V10-1S6S-11C20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382094-8
V10-1S6S-11D20-LH
9 Tooth SAE A Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
382095-2
V10-1S7S-1B20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
382095-3
V10-1S7S-1C20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
382095-5
V10-1S7S-1A20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
382095-7
V10-1S7S-1C20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
382095-8
V10-1S7S-1D20-LH
3/4 Straight Keyed
SAE
1.39
07
10.5
CCW
2000
2800 RPM
383515-2
V10-1P4P-11B20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-3
V10-1P4P-11C20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-4
V10-1P4P-11D20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
383515-5
V10-1P4P-11A20-LH
9 Tooth SAE A Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
383515-7
V10-1P4P-11C20-LH
9 Tooth SAE A Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
385857-2
V10-1S7S-11B20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-3
V10-1S7S-11C20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-4
V10-1S7S-11D20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
385857-5
V10-1S7S-11A20-LH
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
385857-7
V10-1S7S-11C20-LH
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
386496-2
V10-1S1S-1B20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-3
V10-1S1S-1C20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-4
V10-1S1S-1D20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386496-5
V10-1S1S-1A20-LH
3/4 Straight Keyed
SAE
0.2
01
1.55
CCW
2500
4800 RPM
386496-7
V10-1S1S-1C20-LH
3/4 Straight Keyed
SAE
0.2
01
1.55
CCW
2500
4800 RPM
386931-2
V10-1P6P-11B20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-3
V10-1P6P-11C20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-4
V10-1P6P-11D20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
386931-5
V10-1P6P-11A20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
386931-6
V10-1P6P-11B20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
386931-7
V10-1P6P-11C20-LH
9 Tooth SAE A Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
387500-2
V10-1S6S-1B20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-3
V10-1S6S-1C20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-4
V10-1S6S-1D20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387500-5
V10-1S6S-1A20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-6
V10-1S6S-1B20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-7
V10-1S6S-1C20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387500-8
V10-1S6S-1D20-LH
3/4 Straight Keyed
SAE
1.19
06
9
CCW
2200
3000 RPM
387516-2
V10-1S6S-12B20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-3
V10-1S6S-12C20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-4
V10-1S6S-12D20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
387516-5
V10-1S6S-12A20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
387516-7
V10-1S6S-12C20-LH
13 Tooth SAE B Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
390099-2
V10-1S4S-11B20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390099-4
V10-1S4S-11D20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390099-5
V10-1S4S-11A20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
390099-8
V10-1S4S-11D20-LH
9 Tooth SAE A Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
390102-2
V10-1P2P-1B20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390102-3
V10-1P2P-1C20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390102-4
V10-1P2P-1D20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390902-2
V10-1P2P-11B20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-3
V10-1P2P-11C20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-4
V10-1P2P-11D20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
390902-5
V10-1P2P-11A20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
390902-6
V10-1P2P-11B20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
390902-7
V10-1P2P-11C20-LH
9 Tooth SAE A Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
393720-2
V10-1P3P-38B20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-3
V10-1P3P-38C20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-4
V10-1P3P-38D20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
393720-5
V10-1P3P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
393720-7
V10-1P3P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CCW
2500
4000 RPM
397926-2
V10-1S3S-12B20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-3
V10-1S3S-12C20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-4
V10-1S3S-12D20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397926-5
V10-1S3S-12A20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
397926-7
V10-1S3S-12C20-LH
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
397945-2
V10-1P6P-38B20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-3
V10-1P6P-38C20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-4
V10-1P6P-38D20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
397945-5
V10-1P6P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
397945-7
V10-1P6P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
401055-2
V10-1S7S-12B20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401055-4
V10-1S7S-12D20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401055-5
V10-1S7S-12A20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401055-6
V10-1S7S-12B20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401055-7
V10-1S7S-12C20-LH
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
401086-2
V10-1P5P-12B20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-3
V10-1P5P-12C20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-4
V10-1P5P-12D20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401086-5
V10-1P5P-12A20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401086-6
V10-1P5P-12B20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401086-7
V10-1P5P-12C20-LH
13 Tooth SAE B Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
401938-2
V10-1P4P-12B20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-3
V10-1P4P-12C20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-4
V10-1P4P-12D20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
401938-5
V10-1P4P-12A20-LH
13 Tooth SAE B Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
401938-7
V10-1P4P-12C20-LH
13 Tooth SAE B Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
408629-2
V10-1P7P-12B20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-3
V10-1P7P-12C20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-4
V10-1P7P-12D20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
408629-5
V10-1P7P-12A20-LH
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
408629-7
V10-1P7P-12C20-LH
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
452099-2
V10-1P2P-12B20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-3
V10-1P2P-12C20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-4
V10-1P2P-12D20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452099-5
V10-1P2P-12A20-LH
13 Tooth SAE B Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
452099-7
V10-1P2P-12C20-LH
13 Tooth SAE B Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
452380-2
V10-1S7S-38B20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-3
V10-1S7S-38C20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-4
V10-1S7S-38D20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
452380-5
V10-1S7S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
452380-7
V10-1S7S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
452380-8
V10-1S7S-38D20-LH
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CCW
2000
2800 RPM
502495-2
V10-1S3S-38B20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-3
V10-1S3S-38C20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-4
V10-1S3S-38D20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
502495-5
V10-1S3S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
502495-6
V10-1S3S-38B20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
502495-7
V10-1S3S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CCW
2500
4000 RPM
503071-2
V10-1S5S-38B20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-3
V10-1S5S-38C20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-4
V10-1S5S-38D20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
503071-5
V10-1S5S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
503071-7
V10-1S5S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CCW
2500
3200 RPM
574644-2
V10-1P6P-12B20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-3
V10-1P6P-12C20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-4
V10-1P6P-12D20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574644-5
V10-1P6P-12A20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574644-7
V10-1P6P-12C20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574644-8
V10-1P6P-12D20-LH
13 Tooth SAE B Splined
NPT
1.19
06
9
CCW
2200
3000 RPM
574699-2
V10-1S4S-38B20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-3
V10-1S4S-38C20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-4
V10-1S4S-38D20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574699-5
V10-1S4S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574699-6
V10-1S4S-38B20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574699-7
V10-1S4S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CCW
2500
3400 RPM
574736-2
V10-1P2P-38B20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-3
V10-1P2P-38C20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-4
V10-1P2P-38D20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574736-5
V10-1P2P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
574736-7
V10-1P2P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CCW
2500
4500 RPM
574768-2
V10-1P1P-38B20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-3
V10-1P1P-38C20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-4
V10-1P1P-38D20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
574768-5
V10-1P1P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
574768-7
V10-1P1P-38C20-LH
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CCW
2500
4800 RPM
576291-3
V10-1P5P-38C20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
576291-4
V10-1P5P-38D20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
576291-5
V10-1P5P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
576291-6
V10-1P5P-38B20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
576291-7
V10-1P5P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CCW
2500
3200 RPM
579781-2
V10-1S6S-38B20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-3
V10-1S6S-38C20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-4
V10-1S6S-38D20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
579781-5
V10-1S6S-38A20-LH
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
579781-7
V10-1S6S-38C20-LH
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CCW
2200
3000 RPM
586405-2
V10-1P7P-38B20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
586405-4
V10-1P7P-38D20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
586405-5
V10-1P7P-38A20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-6
V10-1P7P-38B20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-7
V10-1P7P-38C20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
586405-8
V10-1P7P-38D20-LH
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CCW
2000
2800 RPM
588681-2
V10-1S1S-11B20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588681-4
V10-1S1S-11D20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588681-5
V10-1S1S-11A20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588681-7
V10-1S1S-11C20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588681-8
V10-1S1S-11D20-LH
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CCW
2500
4800 RPM
588684-2
V10-1S2S-38B20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-3
V10-1S2S-38C20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-4
V10-1S2S-38D20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
588684-5
V10-1S2S-38A20-LH
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
588684-7
V10-1S2S-38C20-LH
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CCW
2500
4500 RPM
591059-2
V10-1P4P-38B20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-3
V10-1P4P-38C20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-4
V10-1P4P-38D20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
591059-5
V10-1P4P-38A20-LH
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CCW
2500
3400 RPM
02-347564-1
V10-6S3S-12A20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
02-347567-1
V10-6S6S-12A20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
375655-1
V10-1P1P-1A20
3/4 Straight Keyed
NPT
0.2
01
1.55
CW
2500
4800 RPM
382061-1
V10-1P1P-11A20
9 Tooth SAE A Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
382062-1
V10-1P7P-11A20
9 Tooth SAE A Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
382063-1
V10-1S2S-1A20
3/4 Straight Keyed
SAE
0.4
02
3
CW
2500
4500 RPM
382065-1
V10-1S2S-11A20
9 Tooth SAE A Splined
SAE
0.4
02
3
CW
2500
4500 RPM
382067-1
V10-1S3S-1A20
3/4 Straight Keyed
SAE
0.6
03
4.5
CW
2500
4000 RPM
382069-1
V10-1S3S-11A20
9 Tooth SAE A Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
382071-1
V10-1S4S-1A20
3/4 Straight Keyed
SAE
0.8
04
6
CW
2500
3400 RPM
382073-1
V10-1S4S-12A20
13 Tooth SAE B Splined
SAE
0.8
04
6
CW
2500
3400 RPM
382074-1
V10-1S5S-1A20
3/4 Straight Keyed
SAE
1
05
7.5
CW
2500
3200 RPM
382077-1
V10-1P3P-1A20
3/4 Straight Keyed
NPT
0.6
03
4.5
CW
2500
4000 RPM
382079-1
V10-1P3P-11A20
9 Tooth SAE A Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382082-1
V10-1P4P-1A20
3/4 Straight Keyed
NPT
0.8
04
6
CW
2500
3400 RPM
382084-1
V10-1P5P-1A20
3/4 Straight Keyed
NPT
1
05
7.5
CW
2500
3200 RPM
382085-1
V10-1P5P-11A20
9 Tooth SAE A Splined
NPT
1
05
7.5
CW
2500
3200 RPM
382086-1
V10-1P6P-1A20
3/4 Straight Keyed
NPT
1.19
06
9
CW
2200
3000 RPM
382087-1
V10-1P7P-1A20
3/4 Straight Keyed
NPT
1.39
07
10.5
CW
2000
2800 RPM
382089-1
V10-1P3P-12A20
13 Tooth SAE B Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
382092-1
V10-1S5S-11A20
9 Tooth SAE A Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382093-1
V10-1S5S-12A20
13 Tooth SAE B Splined
SAE
1
05
7.5
CW
2500
3200 RPM
382094-1
V10-1S6S-11A20
9 Tooth SAE A Splined
SAE
1.19
06
9
CW
2200
3000 RPM
382095-1
V10-1S7S-1A20
3/4 Straight Keyed
SAE
1.39
07
10.5
CW
2000
2800 RPM
383515-1
V10-1P4P-11A20
9 Tooth SAE A Splined
NPT
0.8
04
6
CW
2500
3400 RPM
385857-1
V10-1S7S-11A20
9 Tooth SAE A Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
386496-1
V10-1S1S-1A20
3/4 Straight Keyed
SAE
0.2
01
1.55
CW
2500
4800 RPM
386931-1
V10-1P6P-11A20
9 Tooth SAE A Splined
NPT
1.19
06
9
CW
2200
3000 RPM
387500-1
V10-1S6S-1A20
3/4 Straight Keyed
SAE
1.19
06
9
CW
2200
3000 RPM
387516-1
V10-1S6S-12A20
13 Tooth SAE B Splined
SAE
1.19
06
9
CW
2200
3000 RPM
390099-1
V10-1S4S-11A20
9 Tooth SAE A Splined
SAE
0.8
04
6
CW
2500
3400 RPM
390102-1
V10-1P2P-1A20
3/4 Straight Keyed
NPT
0.4
02
3
CW
2500
4500 RPM
390902-1
V10-1P2P-11A20
9 Tooth SAE A Splined
NPT
0.4
02
3
CW
2500
4500 RPM
393720-1
V10-1P3P-38A20
3/4 - 11 Tooth Splined
NPT
0.6
03
4.5
CW
2500
4000 RPM
397926-1
V10-1S3S-12A20
13 Tooth SAE B Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
397945-1
V10-1P6P-38A20
3/4 - 11 Tooth Splined
NPT
1.19
06
9
CW
2200
3000 RPM
401055-1
V10-1S7S-12A20
13 Tooth SAE B Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
401086-1
V10-1P5P-12A20
13 Tooth SAE B Splined
NPT
1
05
7.5
CW
2500
3200 RPM
401938-1
V10-1P4P-12A20
13 Tooth SAE B Splined
NPT
0.8
04
6
CW
2500
3400 RPM
408629-1
V10-1P7P-12A20
13 Tooth SAE B Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
452099-1
V10-1P2P-12A20
13 Tooth SAE B Splined
NPT
0.4
02
3
CW
2500
4500 RPM
452380-1
V10-1S7S-38A20
3/4 - 11 Tooth Splined
SAE
1.39
07
10.5
CW
2000
2800 RPM
502495-1
V10-1S3S-38A20
3/4 - 11 Tooth Splined
SAE
0.6
03
4.5
CW
2500
4000 RPM
503071-1
V10-1S5S-38A20
3/4 - 11 Tooth Splined
SAE
1
05
7.5
CW
2500
3200 RPM
574644-1
V10-1P6P-12A20
13 Tooth SAE B Splined
NPT
1.19
06
9
CW
2200
3000 RPM
574699-1
V10-1S4S-38A20
3/4 - 11 Tooth Splined
SAE
0.8
04
6
CW
2500
3400 RPM
574736-1
V10-1P2P-38A20
3/4 - 11 Tooth Splined
NPT
0.4
02
3
CW
2500
4500 RPM
574768-1
V10-1P1P-38A20
3/4 - 11 Tooth Splined
NPT
0.2
01
1.55
CW
2500
4800 RPM
576291-1
V10-1P5P-38A20
3/4 - 11 Tooth Splined
NPT
1
05
7.5
CW
2500
3200 RPM
579781-1
V10-1S6S-38A20
3/4 - 11 Tooth Splined
SAE
1.19
06
9
CW
2200
3000 RPM
586405-1
V10-1P7P-38A20
3/4 - 11 Tooth Splined
NPT
1.39
07
10.5
CW
2000
2800 RPM
588681-1
V10-1S1S-11A20
9 Tooth SAE A Splined
SAE
0.2
01
1.55
CW
2500
4800 RPM
588684-1
V10-1S2S-38A20
3/4 - 11 Tooth Splined
SAE
0.4
02
3
CW
2500
4500 RPM
591059-1
V10-1P4P-38A20
3/4 - 11 Tooth Splined
NPT
0.8
04
6
CW
2500
3400 RPM
