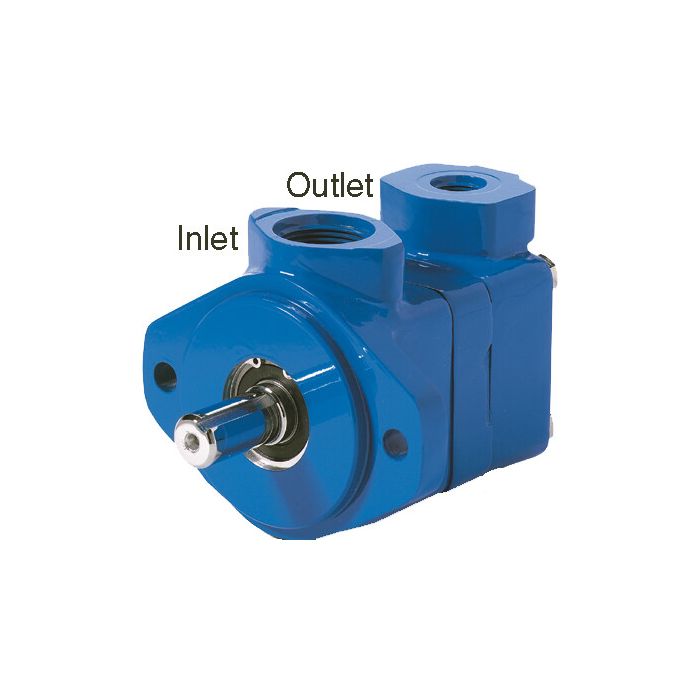

V10 Series Vane Pump, 07 Ring Size, 9 Tooth SAE A Splined Shaft, NPT Ports, Outlet 90° CCW from Inlet, CW Rotation

This V10 series vane pump works well in applications like metal cutting, plastic injection molding, dump trucks, and wheel loaders.

It matches a V10 Series single vane pump with a 9-tooth SAE A splined shaft and NPT porting. The NPT connections called out are a 1 inch NPT inlet and a 1/2 inch NPT outlet, with the outlet positioned 90 degrees CCW from the inlet, and the rotation is clockwise.

the outlet on this pump sits exactly 90 degrees counterclockwise from the inlet, so if your hydraulic connections is already laid out that way, you're in good shape. Porting is 1-inch NPT on the inlet and 1/2-inch NPT on the outlet, so make sure your lines match up before swapping it in. The mounting is 2-bolt SAE A or 2-bolt SAE B flange, and the shaft is a 9-tooth SAE A splined. Get those three things confirmed against your old pump and you should be bolting right in.
