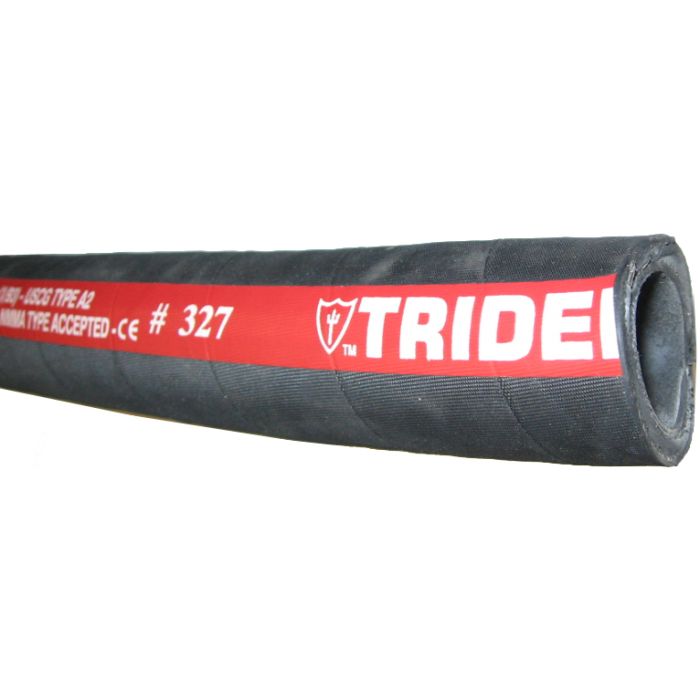

USCG Type A2 SAE J1527 Fuel Fill Hose
Application & Construction |
Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends) and diesel (including bio diesel blends). The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order and EPA Certified low permeation Type A1-15; and is NMMA Type Accepted & CE certified. This hose is built with the best fuel, fire and age resistant formulation and a unique ''Barrier Liner'' on inside surface of the tube, so fuel is not in direct contact with rubber. Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone. Also provides excellent bend-ability. |
Fittings |
Shank Type (Brass, Stainless Steel) |
Fittings & Fitting Attachment Suggestions |

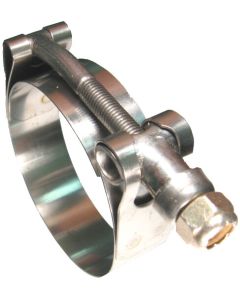

Shank type fittings attached with stainless steel T-Bolt clamps. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Minimum Bend Radius | Vacuum Service | Package Qty. | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| 327-1126 | 1.5 | 2 | 60 | 5.5 | 50 ft roll |
|
||
| 327-0346 | 0.75 | 1.2 | 100 | 2.5 | 50 ft roll |
|
||
| 327-1006 | 1 | 1.42 | 80 | 3 | 50 ft roll |
|
||
| 327-1146 | 1.25 | 1.7 | 70 | 4.5 | 50 ft roll |
|
||
| 327-2006 | 2 | 2.5 | 50 | 7 | 50 ft roll |
|
