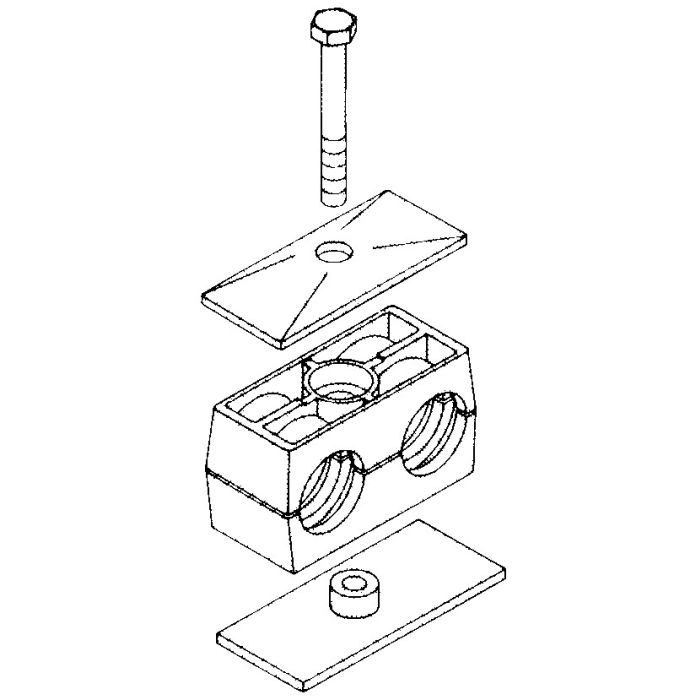

Twin Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 21.3 mm mm Size

B2 1.18	Body I.D. Profiled	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Group 3D	H2 2.17	H3 0.92	Hose O.D. 0.84	I1 2.64	Materials Polypropylene	Package Qty. 1	Pipe Size 0.50	Size 21.3 mm	Supplier Part Number 6100082084	Thread Sealant No	Alternate Part Numbers Alternate Part Number 6100082084, Alternate Part Number C1EU97, Alternate Part Number SP3213/213DPPGDAS-BAG/TAG STAUFF CLAMP, Alternate Part Number SP3213/213DPPGDAS-K STAUFF CLAMP, Alternate Part Number SP3213/213PPGDASUW10K, Alternate Part Number STNA12864	Product Weight 0.39 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 21.3 mm line, is this the right clamp size or am i thinkin about that backwards

Question by: Gary R on Dec 7, 2025, 8:01 AM

For a 21.3 mm outside diameter, the 21.3 mm size clamp is the match. The note on these clamps is that mm size times 0.03937 gives you the inch size, so 21.3 mm works out to about 0.84 inch OD.

Answer by: Customer Support on Dec 8, 2025, 8:19 PM

Similar Products

Model Number	Size	Pipe Size	Tube Size	Hose O.D.	Group	Materials	Body I.D.	Package Qty.	B2	H2	H3	I1
STNA12839	17.4 mm			0.685	3	Polypropylene	Smooth	1	1.18	1.93	0.92	2.64
STNA17378	12.7 mm		0.5		2	Polypropylene	Profiled	1	1.18	1.73	0.73	2.09
SP3213/213DPPGDA	21.3 mm	0.5		0.84	3D	Polypropylene	Profiled	1	1.18	2.17	0.92	2.64
6100081837	9.5 mm		0.375		2	Polypropylene	Profiled	1	1.18	1.73	0.73	2.09
STNA12801	13.4 mm	0.25		0.528	3	Polypropylene	Smooth	1	1.18	1.93	0.92	2.64
STNA12846	19 mm		0.75		3	Polypropylene	Profiled	1	1.18	1.93	0.93	2.64
STNA12897	28 mm			1.102	4	Polypropylene	Smooth	1	1.18	2.17	0.94	3.15
STNA12919	35.7 mm			1.406	5	Polypropylene	Smooth	1	1.18	2.72	1.22	4.17
