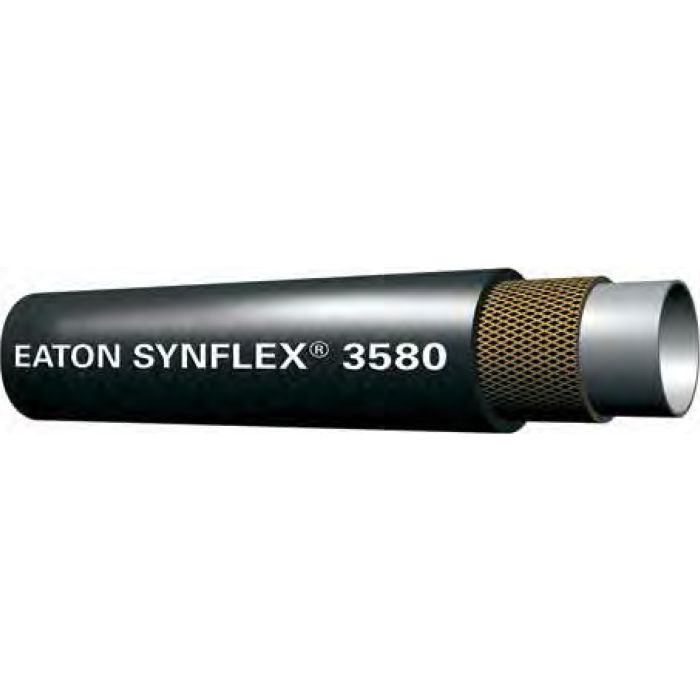

Thermoplastic Polyester Tube, Black Cover SAE 100R1/SAE 100R7 Hose, Up To 3250 PSI
Application |
Lubrication systems. General mobile hydraulics. Agriculture equipment. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
Polyester tube. Braided, bronze-coated steel wire reinforcement. Black non-perforated, polyurethane cover. |
Features |
Meets or exceeds SAE 100R1 and 100R7 performance specifications. Steel wire reinforcement. Cut resistant, heavy-duty design. Crush resistant. |
Fittings |
Synflex® Swage 3903 Series (Steel). Synflex® Swage 390A Series (Stainless Steel) |
Temperature Range |
-40°F to +225°F (-40°F to +140°F with water-based, or fire-resistant, fluids) |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| 3580-06004 | 0.38 | 0.65 | 3250 | 2.25 | 500 |
|
