TestMate Series Contamination Monitors

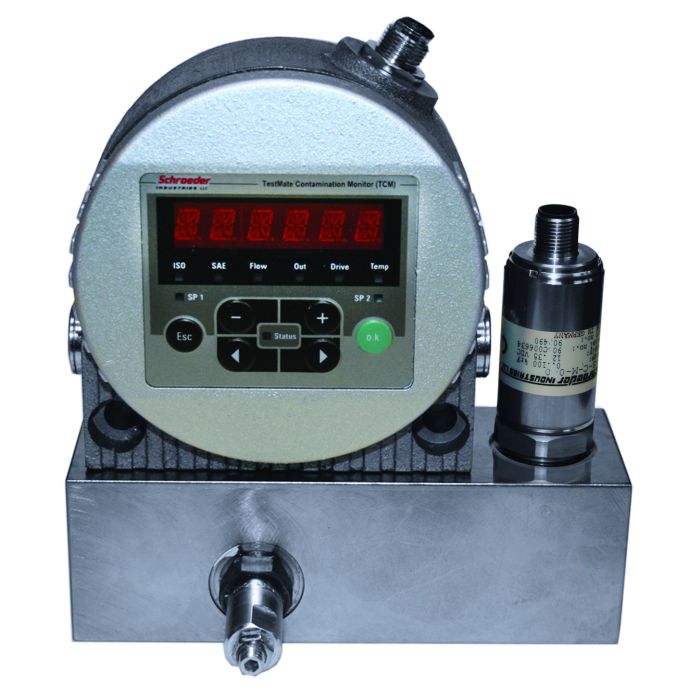

Group Description	The TestMate is among the newest generation of particle monitors that continuously measure solid contamination in fluid. Enclosed in a 4 inch diameter case, the TCM utilizes an optical sensor and measures particles in four sizes: >4, >6, >14 and >21 microns. Measurement results can be output as a contamination code according to ISO 4406 : 1999 or SAE AS 4059 (D).
Electrical Outputs	4 to 20mA Analog; 0 to 10V Analog (option) RS485 for communication with FluMos software
Electrical Specifications	4 to 20 mA Analog output (max. burden 300?); 0 to 10 V output (min. load resistor 820?) Limit switching output (Power MOSFET): max. current 1.5A
Features	Measures Particles In Four Sizes: >4, >6, >14, >21 microns. Pipe or Wall Mounting. ISO or SAE codes can be output in 4-20 mA analog signal. Compatible with Standard Mineral Fluids & Phosphate Esters. Display & Keypad can be rotated. Inlet & Outlet Ports are Interchangeable (bi-directional).
Power Consumption	3 Watt maximum
Power Supply Voltage	9 to 36 VDC residual ripple <10%
Sensor Flow Rate	30 to 300 ml/min

Products

Model Number	Product Description	Price	Buy Now
TCM-FC	SCHROEDER TESTMATE CONTAMINATION
