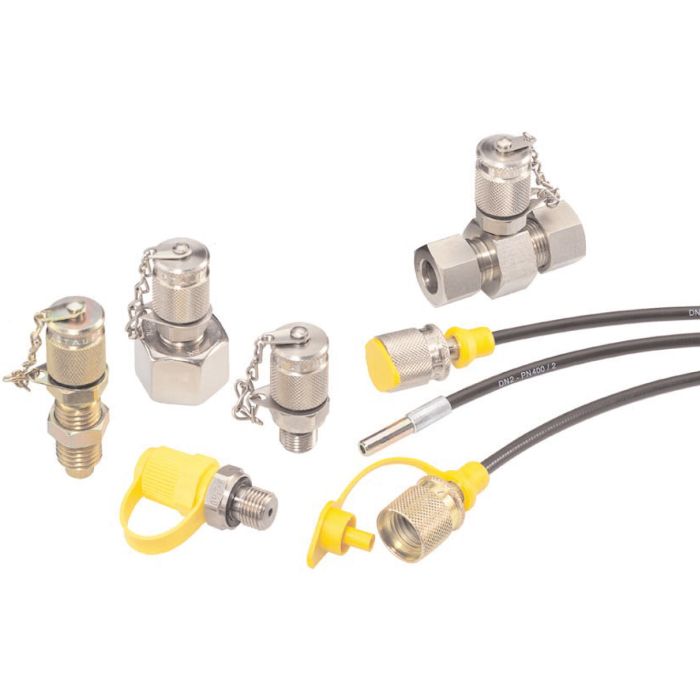

SMK-20-JIC3/8-V-K-W3

Alternate Part Numbers Alternate Part Number 1210026075, Alternate Part Number C1KU16, Alternate Part Number FMC103-1824, Alternate Part Number FMC3634660, Alternate Part Number SMK-20-JIC3/8-V-K-W3, Alternate Part Number SMK20-JIC3/8-VK-C6F, Alternate Part Number SMK20JIC3/8VKC6F, Alternate Part Number SMK20JIC3/8VKW3	Brand Stauff-Special Quotes	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Supplier Part Number 1210026075	Product Weight 0.20 lbs

Product Questions & Answers 5

Product Questions & Answers

got a rig that runs pretty hot sometimes. what kinda temps can the seals on these test fittings handle

Question by: Neil J on Dec 28, 2025, 7:57 PM

Depending on the exact seal material you choose, the heat tolerance varies. Viton seals give you the highest rating from -4 to 392 degrees Fahrenheit. Buna-N handles up to 195 degrees and EPDM is rated for up to 302 degrees.

Answer by: Customer Support on Dec 30, 2025, 2:23 PM

got a gauge and a little test hose setup, what’s this SMK-20-JIC3/8-V-K-W3 actually meant to do?

Question by: Terry A on Jul 28, 2025, 7:51 AM

Built for pressure test work, it’s used for monitoring and control of pressure, plus venting and sampling in hydraulic systems. It’s meant to let you hook up measurement, control, and switching devices while keeping the connection leakproof before the connection is opened.

Answer by: Customer Support on Jul 29, 2025, 6:46 PM

what's the pressure rating on this test hose, and can it handle live connections without shutting the system down?

Question by: Freddie B on Mar 16, 2026, 8:58 AM

Rated for a maximum working pressure of 5800 PSI, the SMK-20 series hose also supports connection under pressure up to 5800 PSI. That means you can hook up your gauges or monitoring equipment while the system is running without needing to depressurize first. The connection stays leakproof before it opens, so you're not spilling fluid or introducing air during the swap.

Answer by: Customer Support on Mar 17, 2026, 9:05 PM

What kind of fluids can I run through this thing?

Question by: Shawn R on Jan 29, 2026, 2:49 PM

This test point is suitable for hydraulic oils and other mineral-based fluids, but you'll want to double-check the seal material compatibility first. If you're thinking about using it with something other than typical hydraulic fluids, it's best to call and confirm the availability of alternate seals.

Answer by: Customer Support on Jan 31, 2026, 6:07 AM

got a gauge and need to check pressure without makin a mess, what’s this SMK-20 setup meant to do?

Question by: Freddie R on Sep 9, 2025, 7:40 PM

For pressure monitoring and control work, it gives you a test hose and test point style connection that stays leakproof before the connection is opened. It is also used for venting and sampling, and it lets you hook up measurement, control, or switching devices in a simple way.

Answer by: Customer Support on Sep 11, 2025, 7:08 PM
