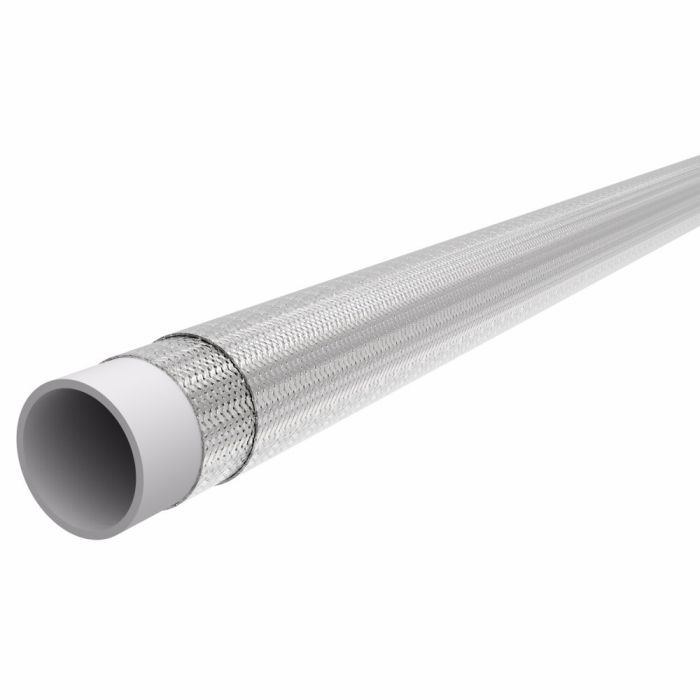

Teflon Tube, Stainless Steel Braid Hose, 0.14 Inch ID, Up to 3000.00 PSI

Color Blue	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 0.14	Hose O.D. 0.25	Maximum Operating Pressure 3000	Minimum Bend Radius 1.50	Reel Qty (ft) Rolls Only	Supplier Part Number 2807-3	Alternate Part Numbers Alternate Part Number C1BJ83, Alternate Part Number MI-00299030, Alternate Part Number MINO-00015F47460	Product Weight 0.73 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight little run on a machine, how sharp can i bend this hose without kinkin it up?

Question by: Dustin G on Aug 24, 2025, 8:51 AM

For routing, the minimum bend radius is 1.5 inches. Keeping your bend at or above that radius helps prevent kinking and protects the stainless single wire braid.

Answer by: Customer Support on Aug 25, 2025, 9:24 AM

What's the smallest radius I can bend this hose without messing it up?

Question by: Rhonda P on Jun 30, 2025, 2:27 PM

The minimum bend radius for this hose is 1.5 inches. Bending it tighter than that could damage it.

Answer by: Customer Support on Jul 2, 2025, 6:18 AM

Running this on a compressor discharge line that sees some pretty serious heat. What's the upper temp limit on this hose, and is it actually built for that kind of duty?

Question by: Lance H on May 25, 2025, 4:19 PM

Up to 500 degrees F is the rated ceiling on this one, so compressor discharge is well within its range. The extruded PTFE tube handles the heat without breaking down, and the stainless steel single wire braid keeps things from getting away from you pressure-wise. Rated to 3000 PSI, so thermal and pressure demands like that are exactly what it was built around.

Answer by: Customer Support on May 27, 2025, 8:15 AM

Similar Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2807-10	0.51	0.63	1500	6.5	28	Rolls Only
2807-3	0.14	0.25	3000	1.5	28	Rolls Only
2807-4	0.19	0.3	3000	2	28	Rolls Only
2807-20	1.12	1.29	625	16	12	Rolls Only
