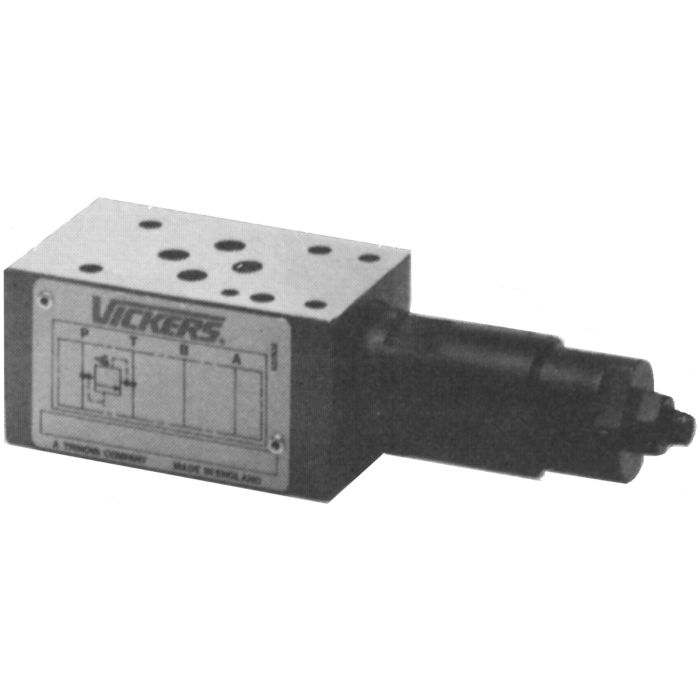

main product photo

Skip to the beginning of the images gallery

SystemStak Relief Valves, NFPA-D03 Size

Group Description	These pilot-operated adjustable pressure relief valves limit the maximum pressure in the line(s) controlled by the integral relief valve elements. Pressure adjustment of screw & locknut or control knob (with or without keylock) are available.
Stacking Height	1.57 inches.

Products

Part Number	Model Number	Key	Type	Function	Adjustable Range	Adjustment Style	Gauge Port	Price	Buy Now
871702	DGMC2-3-AT-GW-BT-GW-41	C	Dual Relief	A to T, B to T	75-4500	Screw & Locknut	No
02-108133	DGMC-3-BT-GW-41	D	Single Relief	B to T	725-4500	Screw & Locknut	No
694419	DGMC-3-PT-CW-41	A	Single Relief	P to T	145-2900	Screw & Locknut	No

Customers Who Bought This Item Also Bought

DG4V-3-8C-VM-U-H7-61
SKU: 02-145162
DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Float Center, HP Performance, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.
SKU: 859176
DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Float Center, HP Performance, 24VDC DIN 43650 Coil.
SKU: 565465

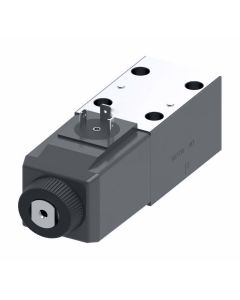

VICKERS DG4V30BMUH760
SKU: 859160
SystemStak Pilot-Operated Check Valve, NFPA-D03 Size, Dual Pilot Check, 14.5 PSI Cracking Pressure, 3:1 Pilot Ratio
SKU: 694400
SystemStak Flow Control Valve, NFPA-D03 Size, Dual Meter Out of Work Ports, Standard Needle Control, Screw & Locknut Adjustment
SKU: 694412

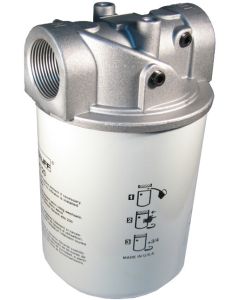

SSF120/160 Series Spin-On Suction / Return Filter, 1-1/4 NPT Ports, 6.63 inch 25 Micron Nominal Paper Element, 15.00 PSI Bypass Spring
