Swivel Jic X Swivel Jic Union

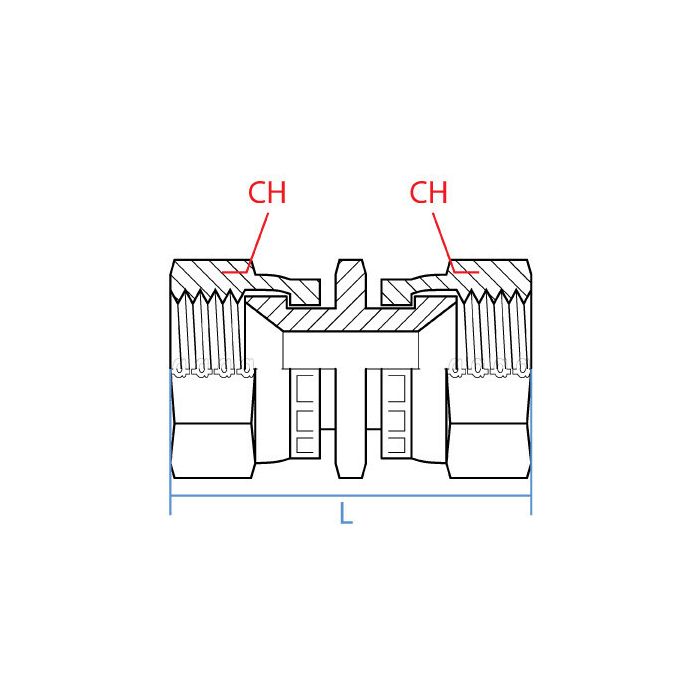

CH1 Width 22mm	CH2 Width 14mm	L Length 43mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9026-08-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line running 1/2" JIC on one end and 1/4" JIC on the other, this union gonna tie them two together without needing extra adapters in between?

Question by: Hubert S on Jan 31, 2026, 9:31 PM

That's exactly what this fitting handles. One side threads onto a 1/2" female JIC connection with a 3/4-16 UNF thread, and the other picks up a 1/4" female JIC at 7/16-20 UNF. Both ends swivel, so you get some rotational flexibility when you're making up the connection, which helps a lot when the lines aren't sitting perfectly aligned. No extra adapters needed for that size combination.

Answer by: Customer Support on Feb 2, 2026, 11:04 AM
