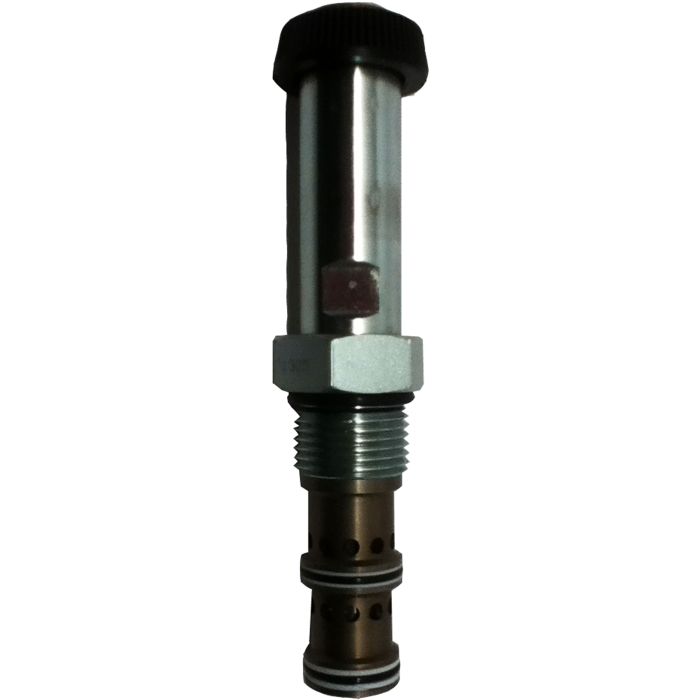

SV4B-12-3 Series 3-Way, 2-Position, Solenoid Cartridge Valves, Up To 11 GPM & 3000 PSI

Cartridge	Model SV4B-12-3*, sold separately.
Coil	R Series, sold separately, see
Group Description	The SV4B-12-3 is a 3-way, 2-position, spool-type, direct acting screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	11 GPM.
Housing	Cavity size C-12-3, sold separately, see
Internal Leakage	21.5 in³/min max @ 3000 psi
Operation	In the de-energized position, this valve allows flow from port 1 to port 2 while port 3 is blocked. In the energized position, flow is allowed from port 2 to port 3 while port 1 is blocked.
Pressure Rating	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 248°F

Products

Part Number	Model Number	Housing	Coil	Seal Material	Price	Buy Now
02-200192	SV4B-12-3P-0-00	None	Not Included	Buna-N
