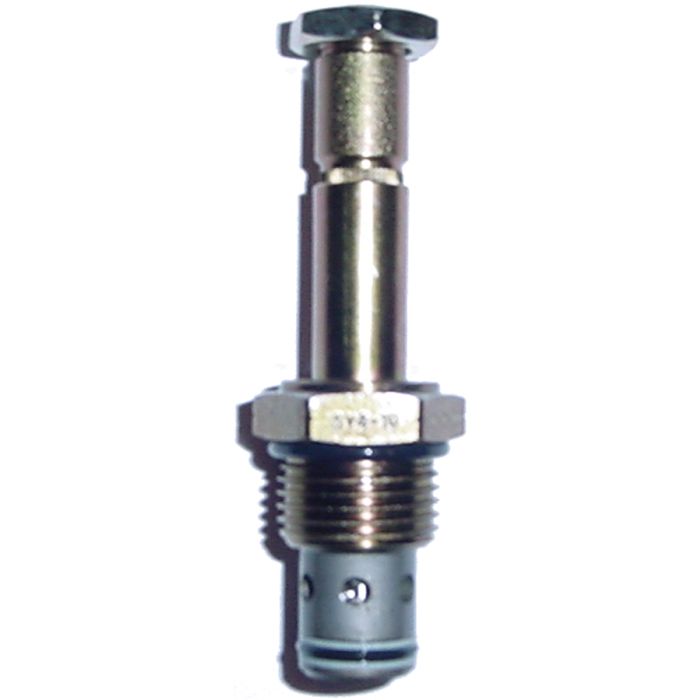

SV4-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valves, Up To 6 GPM & 3000 PSI

Cartridge	Model SV4-10-O*, sold separately.
Coil	J Series 20 Watt, sold separately, see
Group Description	The SV4-10-O is a 2-way, 2-position, spool-type, direct acting, normally open screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	6 GPM.
Housing	Cavity size C-10-2, sold separately, see
Internal Leakage	Port 2 to Port 1: 5 in³ per minute maximum @ 3000 PSI with valve energized.
Note	Performance data is typical with fluid at 105 SSU and 120°F.
Operation	In the de-energized position, this valve allows bi-directional flow between port 1 and port 2. In the energized position both ports are closed.
Pressure Rating	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Part Number	Model Number	Manual Override Option	Housing	Coil	Seal Material	Price	Buy Now
565542	SV4-10-O-0-00		None	Not Included	Buna-N
