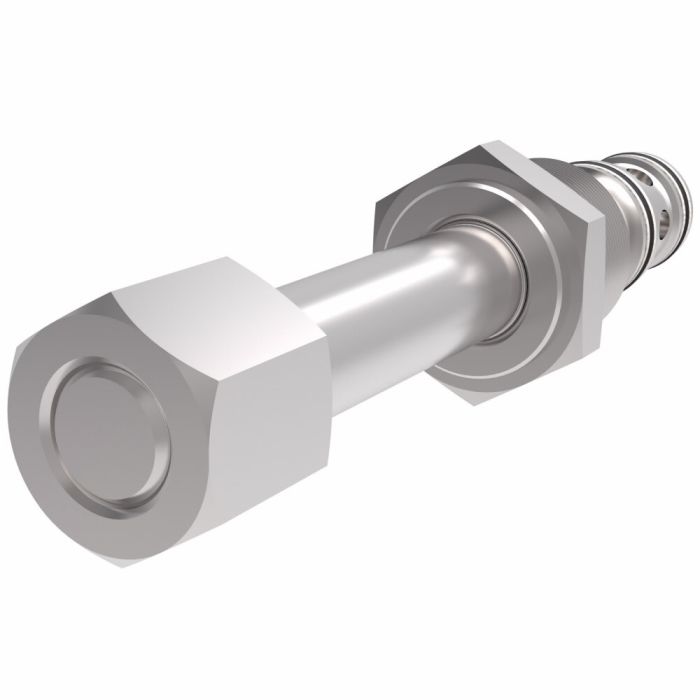

SV4-10-3 Series 3-Way, 2-Position Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Coil Not Included	Coil Series J series, 23 W coils	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage Standard	Manual Override Option No	Number of Housing Ports 3	Number of Valve Ports 3	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style 3-Way 2-Position	Supplier Part Number 566307	Switch Connector No	Valve Material Cartridge only	Voltage volt	Product Weight 0.40 lbs	Alternate Part Numbers Alternate Part Number C1BT60, Alternate Part Number SV4103000

Product Questions & Answers 3

Product Questions & Answers

Reckon this here valve will work okay without a housing or a coil?

Question by: Harold J on Mar 14, 2025, 8:03 AM

This solenoid cartridge valve requires both a separate housing and coil to function properly, as neither is included with the valve itself.

Answer by: Customer Support on Mar 16, 2025, 6:57 AM

How does the SV4-10-3 Series 3-way solenoid valve function without the housing and coil included?

Question by: Gene J on Jan 5, 2026, 6:19 PM

The SV4-10-3 Series 3-way, 2-position solenoid cartridge valve is designed to operate as part of a hydraulic system by controlling fluid flow. Without the housing and coil, it needs to be integrated into an existing setup where compatible components are present. The valve itself will manage the switching of fluid paths when a coil is attached and energized, but you'll need to ensure you have the appropriate coil and housing to complete the installation process.

Answer by: Customer Support on Jan 7, 2026, 8:03 AM

reckon this sv4-10-3 valve includes the coil or do i gotta get that separate

Question by: Gene E on Apr 29, 2025, 9:31 AM

The SV4-10-3 is a 3-way, 2-position solenoid cartridge valve without a coil included. You'll need to source the coil separately to make it operational.

Answer by: Customer Support on Apr 30, 2025, 11:06 AM

Similar Products

Part Number	Model Number	Manual Override Option	Housing	Coil	Seal Material	Price	Buy Now
02-167839	SV4-10-3-0-115AP		None	115VAC 1/2" NPT conduit	Buna-N
566307	SV4-10-3-0-00		None	Not Included	Buna-N
