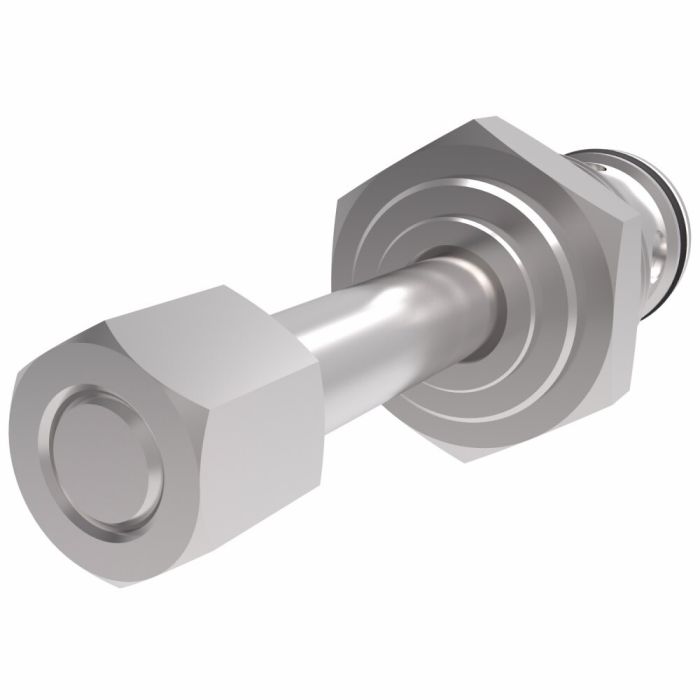

SV3-20-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Coil Not Included	Coil Series J series, 23 W	Coil Special Features None	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage Standard	Manual Override Option No	Number of Housing Ports 2	Number of Valve Ports 2	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style 2-Way 2-Position Normally Open	Supplier Part Number 565545	Switch Connector No	Valve Material Cartridge only	Product Weight 1.25 lbs	Alternate Part Numbers Alternate Part Number C1BT27, Alternate Part Number SV3200000

Product Questions & Answers 2

Product Questions & Answers

valve comes without a coil and housing, so what exactly do i need to get this thing up and running?

Question by: Jimmy B on May 13, 2025, 7:52 PM

The cartridge itself is what you're getting here, no coil, no housing included. For the coil, you'll want a J Series 20 Watt unit, sold separately. The housing requires a machined cavity sized for C-20-2, also sold separately. Without both of those pieces, the cartridge won't have anything to mount into or any way to receive an electrical signal. Once you have all three components together, it installs as a screw-in cartridge, so no exotic tooling is needed for the physical install.

Answer by: Customer Support on May 15, 2025, 1:35 PM

Will this valve work in a mobile hydraulic system on a harvester?

Question by: Cindy C on May 14, 2025, 11:26 AM

It sure will. This 2-way, 2-position valve is often used in harvesters, as well as refuse haulers and other mobile and industrial applications.

Answer by: Customer Support on May 16, 2025, 9:34 AM

Similar Products

Part Number	Model Number	Manual Override Option	Housing	Coil	Seal Material	Price	Buy Now
565545	SV3-20-O-0-00		None	Not Included	Buna-N
