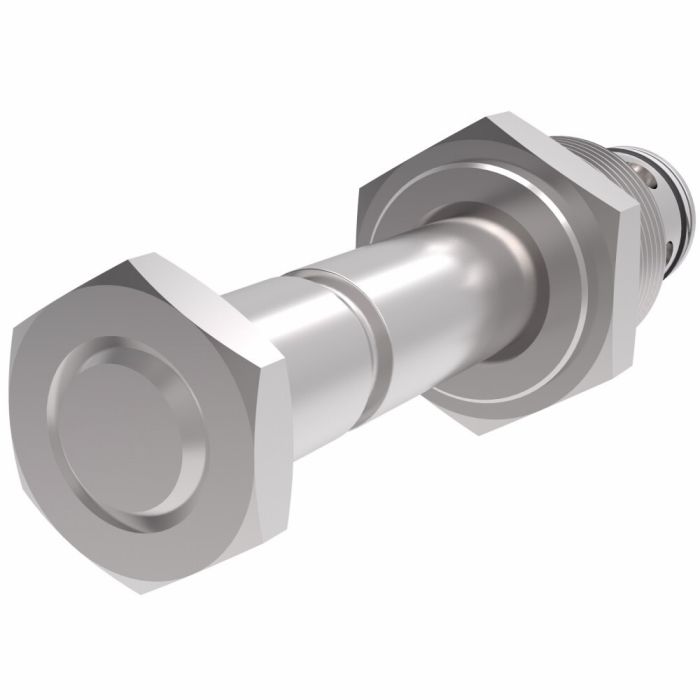

SV3-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Maintaining a filtration level of ISO 4406 18/16/13 or cleaner will help ensure proper operation and longevity of this valve.

In the de-energized state it blocks flow from port 2 to port 1, and it still allows free flow from port 1 to port 2. When you energize it, the poppet lifts and you get flow allowed in either direction.

Twelve GPM is the group flow rating for this cartridge. The broader spec sheet shows the valve series is built to handle up to 60 USgpm and 5000 psi at the design level, but the C-10-2 cavity configuration this cartridge fits into is rated for 12 GPM in that group. Running it at the rated flow keeps internal leakage in check, which is listed at less than 5 drops per minute max at 3000 PSI. Staying within that range is where you get reliable, repeatable shutoff behavior.

The cartridge itself is all you get with this one. No coil, no housing. Both need to be ordered separately. The housing requires a C-10-2 cavity, and the coil is a J Series 20 Watt unit. Worth making sure you have both lined up before you try to get this thing installed.

This cartridge valve fits a C-10-2 size cavity.

Fit comes down to the cavity, and this valve is built for cavity size C-10-2. It is a screw-in cartridge valve and it ships as cartridge only, so you will still need a compatible housing and the coil separately.
