SV13-16-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valves, Up To 35 GPM & 5000 PSI

Cartridge	Model SV13-16-C*, sold separately.
Coil	H series, sold separately, see
Group Description	The SV13-16-C is a 2-way, 2-position, pilot operated, poppet-type, normally closed screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	35 GPM
Housing	Cavity size C-16-2, sold separately, see
Internal Leakage	Less than 5 drops per minute maximum @ 5000 PSI.

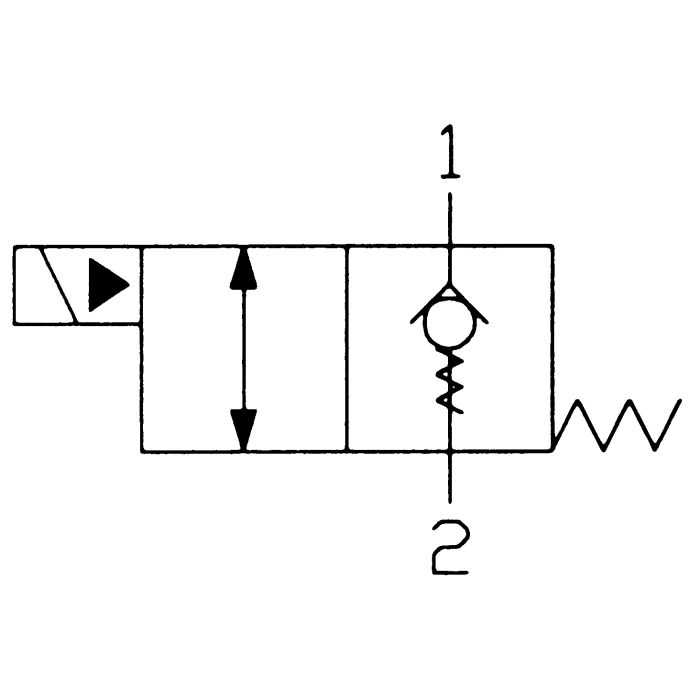

Operation	In the de-energized position, flow is blocked from port 2 to port 1 and free flow is allowed from port 1 to port 2. In the energized position, the poppet lifts to allow flow in either direction.
Pressure Rating	5000 PSI
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40° to 212°F

Products

Part Number	Model Number	Housing	Coil	Seal Material	Price	Buy Now
02-175823	SV13-16-C-0-00	None	Not Included	Buna-N
