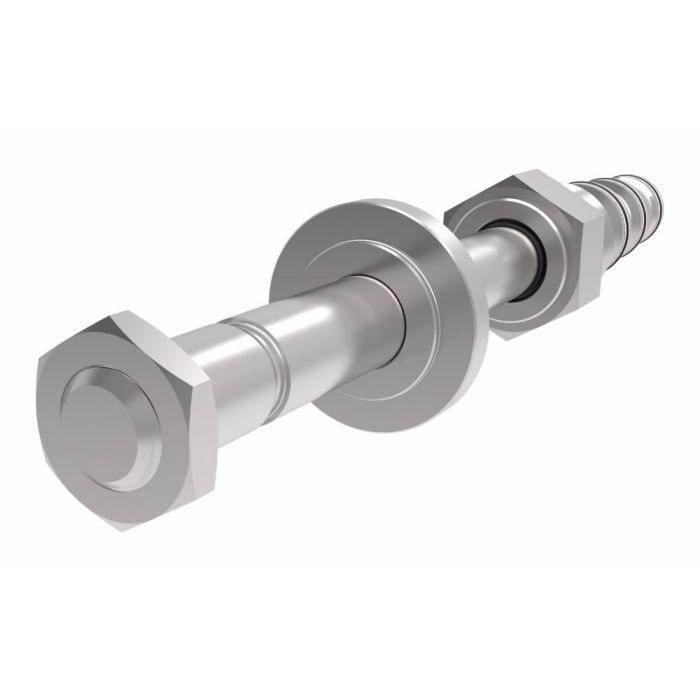

SV13-12-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Coil Not Included	Coil Series 10 series, 29 W	Coil Special Features None	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage Standard	Manual Override Option No	Number of Housing Ports 2	Number of Valve Ports 2	Operation Pilot Operated	Port Type Cartrige Only	Recommended Filtration Level 18/16/13	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Supplier Part Number 02-175825	Switch Connector No	Valve Material Cartridge only	Product Weight 0.62 lbs	Alternate Part Numbers Alternate Part Number C1MG18, Alternate Part Number SV13120000

Product Questions & Answers 2

Product Questions & Answers

got a valve bank that takes a C-12-2 cavity, is this the right cartridge or am i lookin at the wrong one

Question by: Duane T on Sep 24, 2025, 9:44 PM

The SV13-12-O series is a screw-in cartridge that uses cavity size C-12-2, and it does require a machined cavity or housing for installation. Keep in mind this SKU is the cartridge only, with no housing and no coil included.

Answer by: Customer Support on Sep 26, 2025, 6:59 AM

What coil do I need for this valve?

Question by: Curt W on Oct 5, 2025, 7:25 AM

This valve body is designed to work with a 10 series, 29 W coil, sold separately.

Answer by: Customer Support on Oct 7, 2025, 8:24 AM

Similar Products

Part Number	Model Number	Housing	Coil	Seal Material	Price	Buy Now
02-175825	SV13-12-0-0-00	None	Not Included	Buna-N
