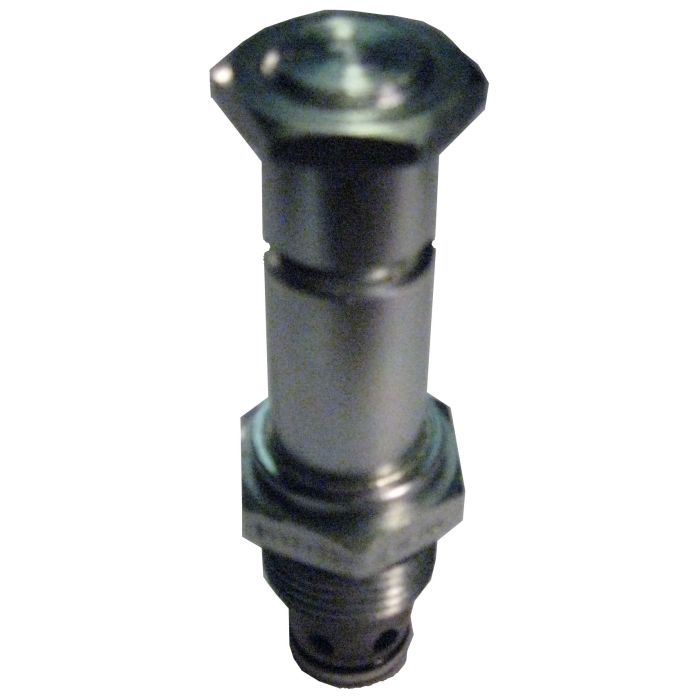

SV13-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valves, Up To 12 GPM & 5000 PSI

Cartridge	Model SV13-10-C*, sold separately.
Coil	H - 10 Series, 29 Watt, sold separately, see
Group Description	This is a 2-way, 2-position, poppet type, high pressure, pilot operated, normally closed solenoid valve. This valve is used in applications requiring low leakage, such as load holding applications or as a general purpose diverter or dump valve.
Flow Rating	12 GPM.
Housing	Cavity size C-10-2, sold separately, see
Internal Leakage	5 drops per minute maximum @ 5000 PSI.
Note	Performance data is typical with fluid at 105 SSU and 120°F.
Operation	In the de-energized position the valve blocks flow from port 2 to 1 and free flow is allowed from port 1 to 2. When the solenoid is energized the pilot poppet is pulled off the seat allowing the valve to open in both directions.
Pressure Rating	5000 PSI. (CAUTION: Pressures over 3000 PSI require steel housing or manifold).
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40° to 212°F (Extreme Limits).

Products

Part Number	Model Number	Housing	Coil	Seal Material	Price	Buy Now
02-175805	SV13-10-C-0-00	None	Not Included	Buna-N
