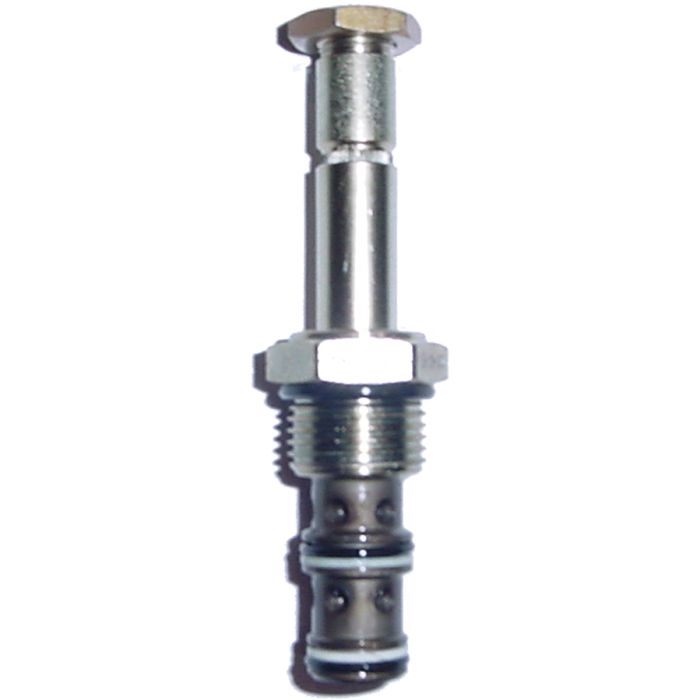

SV1-8-3 Series 3-Way, 2-Position, Solenoid Cartridge Valves, Up To 3 GPM & 3000 PSI

Cartridge	Model SV1-8-3*, sold separately.
Coil	S Series 16 Watt, sold separately, see
Group Description	The SV1-8-3 is a 3-way, 2-position, spool-type, direct acting screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation. This valve can be used in applications requiring separate pressure and tank lines, such as a single acting cylinder.
Flow Rating	3 GPM.
Housing	Cavity size C-8-3, sold separately, see
Internal Leakage	5 in³ per minute maximum @ 3000 PSI.
Note	Performance data is typical with fluid at 105 SSU and 120°F.
Operation	In the de-energized position, this valve allows flow from port 2 to port 1 while port 3 is blocked. In the energized position, flow is allowed from port 1 to port 3 while port 2 is blocked.
Pressure Rating	3000 PSI all ports.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Seal Kit	02-160755 (Buna-N), 02-160756 (Viton®).
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Part Number	Model Number	Manual Override Option	Housing	Coil	Seal Material	Price	Buy Now
02-160771	SV1-8-3-0-00		None	Not Included	Buna-N
