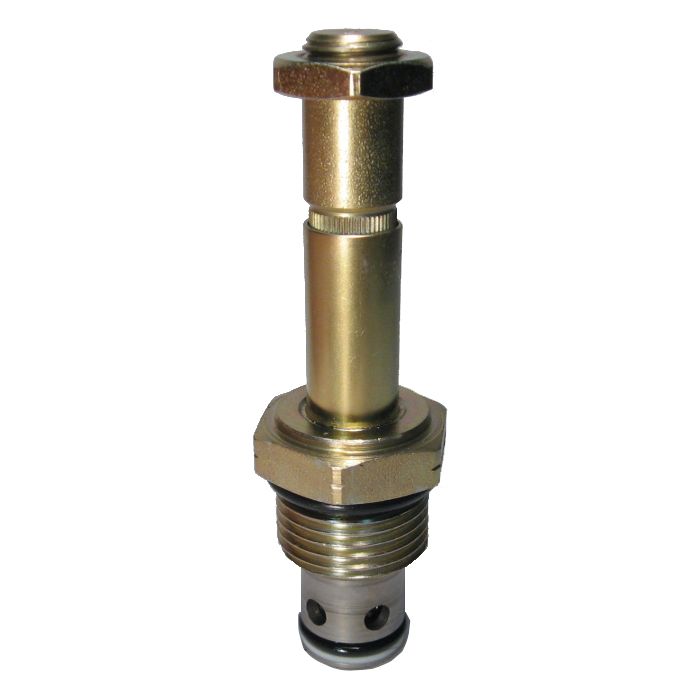

SV1-16-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valves, Up To 35 GPM & 3000 PSI

Cartridge	Model SV1-16-C*, sold separately.
Coil	J Series 20 Watt, sold separately, see
Group Description	The SV1-16-C is a 2-way, 2-position, pilot operated, poppet-type, normally closed screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	35 GPM.
Housing	Cavity size C-16-2, sold separately, see
Internal Leakage	Port 2 to Port 1: 5 drops per minute maximum @ 3000 PSI.
Note	Performance data is typical with fluid at 105 SSU and 120°F.
Operation	In the de-energized position, flow is blocked from port 2 to port 1 and free flow is allowed from port 1 to port 2. In the energized position, bi-directional flow is allowed between port 1 and port 2.
Pressure Rating	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Part Number	Model Number	Manual Override Option	Housing	Coil	Seal Material	Price	Buy Now
565538	SV1-16-C-0-00		None	Not Included	Buna-N
