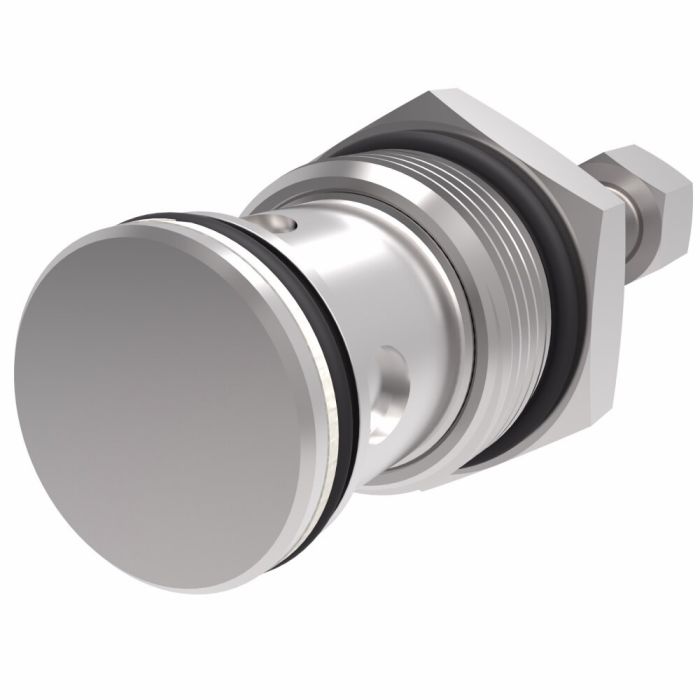

SV1-16-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Coil Not Included	Coil Series J series, 23 W	Coil Special Features None	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage Standard	Manual Override Option No	Number of Housing Ports 2	Number of Valve Ports 2	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style 2-Way 2-Position Normally Closed	Supplier Part Number 565538	Switch Connector No	Valve Material Cartridge only	Product Weight 0.72 lbs	Alternate Part Numbers Alternate Part Number C1BT23, Alternate Part Number SV116C000

Product Questions & Answers 6

Product Questions & Answers

Will this fit a standard C-16-2 cavity?

Question by: Phil A on Jul 2, 2025, 9:39 PM

You'll need a separate housing with a C-16-2 cavity for this cartridge valve to screw into. This particular product is just the cartridge itself.

Answer by: Customer Support on Jul 4, 2025, 12:16 PM

bought one of these a while back but never got around to installing it, does this thing come with a coil or do I need to order that separate?

Question by: Howard B on Aug 19, 2025, 9:55 AM

The coil is not included and has to be ordered separately. Same goes for the housing. What you're getting here is the cartridge valve itself, model SV1-16-C-0-00, which screws into a C-16-2 cavity. The coil you'll want is from the J series, rated at 20 watts. Both the coil and the housing are sold as separate items, so make sure you've got all three pieces before you go to install it.

Answer by: Customer Support on Aug 20, 2025, 1:55 PM

got a SV1-16-C-0-00 on the bench, does this one come with the coil and the housing or am I buying those separate?

Question by: Dean T on Mar 28, 2025, 8:22 PM

Coil and housing are not included with this valve. It is a screw-in cartridge only for a C-16-2 cavity, and the J series coil (listed as 23 W) is a separate item.

Answer by: Customer Support on Mar 30, 2025, 8:13 PM

Will this valve work alright in a hydraulic system on a combine?

Question by: Stan J on Dec 24, 2025, 3:54 PM

It's suitable for harvesters, so it should function properly in your combine's hydraulic system, assuming the system's requirements align with its 35 GPM flow rate and 3000 PSI pressure rating.

Answer by: Customer Support on Dec 26, 2025, 9:35 AM

does this thing come with the coil or do I have to buy that separate

Question by: Kirk J on Apr 13, 2025, 4:46 PM

The coil is sold separately. You'll need a J Series 20 Watt coil to go with it, and the housing is also a separate purchase since this listing is for the cartridge valve only. The cavity size you're looking for is C-16-2 if you're sourcing the housing on your own.

Answer by: Customer Support on Apr 14, 2025, 9:51 PM

got a cavity block already, what does this one need for mounting

Question by: Lynn K on May 2, 2025, 9:58 PM

For installation it needs a machined cavity, specifically cavity size C-16-2, since it is a screw-in cartridge valve and the housing is not included.

Answer by: Customer Support on May 4, 2025, 8:16 AM

Similar Products

Part Number	Model Number	Manual Override Option	Housing	Coil	Seal Material	Price	Buy Now
565538	SV1-16-C-0-00		None	Not Included	Buna-N
