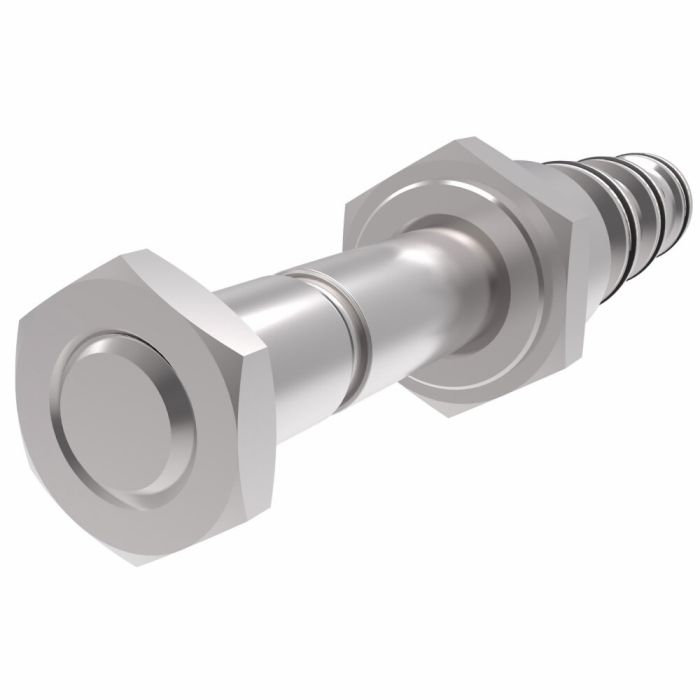

SV1-10-4 Series 4-Way, 2-Position Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Coil Not Included	Coil Series J series, 23 W	Coil Special Features None	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage Standard	Manual Override Option No	Number of Housing Ports 4	Number of Valve Ports 4	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style 4-Way 2-Position	Supplier Part Number 565547	Switch Connector No	Valve Material Cartridge only	Product Weight 1.00 lbs	Alternate Part Numbers Alternate Part Number C1BT29, Alternate Part Number SV1104000

Product Questions & Answers 2

Product Questions & Answers

Will this valve work with a J Series 20 Watt coil?

Question by: Jean J on Dec 30, 2025, 6:26 AM

This valve is indeed compatible with J Series 20 Watt coils, which are sold separately.

Answer by: Customer Support on Dec 31, 2025, 3:34 PM

Running this on a refuse hauler setup and need to know if it'll hold up to the pressure we're throwing at it. What's the max PSI this thing is rated for?

Question by: Gene W on Aug 31, 2025, 6:31 PM

At 3000 PSI, it handles the kind of working pressures you'd typically see in refuse hauler hydraulics without breaking a sweat. The body is hardened and ground steel, so it's built to hold up under sustained load, not just occasional spikes. Keep in mind the internal leakage spec is 10 cubic inches per minute maximum at that 3000 PSI mark, which is worth factoring in if your circuit is sensitive to bypass losses.

Answer by: Customer Support on Sep 2, 2025, 9:52 AM

Similar Products

Part Number	Model Number	Manual Override Option	Housing	Coil	Seal Material	Price	Buy Now
565547	SV1-10-4-0-00		None	Not Included	Buna-N
