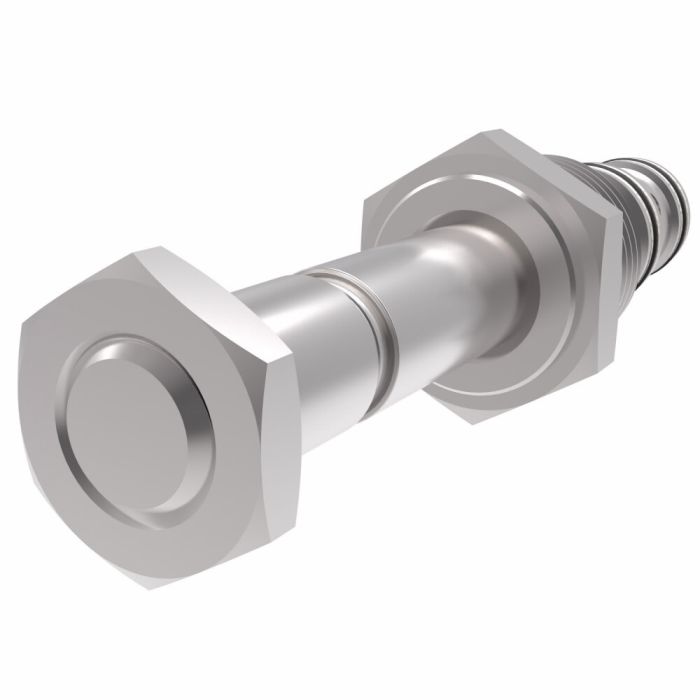

SV1-10-3 Series 3-Way, 2-Position Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Coil Not Included	Coil Special Features None	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage Standard	Manual Override Option No	Number of Housing Ports 3	Number of Valve Ports 3	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style 3-Way 2-Position	Supplier Part Number 565546	Switch Connector No	Valve Material Cartridge only	Product Weight 1.00 lbs	Alternate Part Numbers Alternate Part Number C1BT28, Alternate Part Number SV1103000

Product Questions & Answers 4

Product Questions & Answers

Will this fit in a standard C-10-3 cavity?

Question by: Wes S on Mar 7, 2026, 1:40 PM

This solenoid cartridge valve requires a C-10-3 cavity. Housings are sold separately.

Answer by: Customer Support on Mar 9, 2026, 7:17 AM

got a 3-way circuit and need to know how it shifts. when it aint powered up, which ports are open on this SV1-10-3?

Question by: Duane H on Feb 15, 2026, 9:41 AM

With the coil de-energized, flow goes from port 2 to port 1 and port 3 is blocked. When you energize the solenoid, it switches so flow goes from port 1 to port 3 and port 2 is blocked.

Answer by: Customer Support on Feb 16, 2026, 11:39 AM

Bought the cartridge but realized after the fact the coil ain't included. What series coil am I gonna need to get this thing workin?

Question by: Neal R on Apr 25, 2025, 6:23 PM

You'll want a J Series 20 Watt coil, sold separately. The cartridge itself is just the valve body, so the coil has to be ordered on its own. If your setup uses a DIN 43650 connector, you'll also need the matching solenoid connector since that's required on models using that connector style. Make sure you're sourcing the right coil for your voltage requirements before you put the order in.

Answer by: Customer Support on Apr 27, 2025, 6:25 AM

Will this here valve work on a refuse truck?

Question by: Howard K on Jun 24, 2025, 6:18 PM

Designed for mobile and industrial applications like harvesters and refuse haulers, this valve should be suitable for your truck.

Answer by: Customer Support on Jun 26, 2025, 6:04 PM

Similar Products

Part Number	Model Number	Manual Override Option	Housing	Coil	Seal Material	Price	Buy Now
565546	SV1-10-3-0-00		None	Not Included	Buna-N
