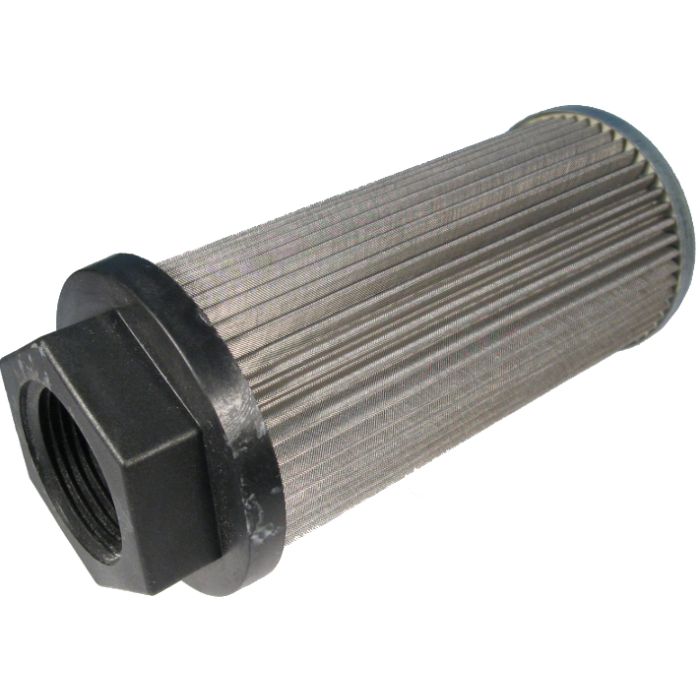

SUS Series Suction Strainers, Up To 100 GPM

Application	Used submerged in reservoir to protect hydraulic pumps from larger solid contaminants. An access opening should be provided so strainer can be removed for cleaning. Strainers are usually mounted horizontally with the top of the strainer at least 3 inches below the lowest oil level (to prevent cavitation). (For larger sizes use 1-1/2 pipe diameters instead of 3 inches).
Features	Nylon head (Most models). Aluminum head (Certain Stauff models, see table). Cleanable. Standard 100 mesh (150 micron) pleated stainless steel wire screen epoxy-bonded to head.

Products

Model Number	Size	Rated Flow	Mesh Size	Screen Area	Diameter (in)	Length	Features
1910001908	1 NPT	13	120	144	2.68	5.51	Glass Fiber Reinforced Polyamide Head
1910001909	1-1/4 NPT	16.9	120	162	3.40	5.50	Glass Fiber Reinforced Polyamide Head
1910001915	2 NPT	59.8	120	504	4.02	10.24	Glass Fiber Reinforced Polyamide Head
221084	2-1/2 NPT	75	100	400	5.17	10.10	Nylon Head
1910001910	1-1/2 NPT	36.4	120	182	3.46	5.51	Glass Fiber Reinforced Polyamide Head
SUSP131N48F27212	3 NPT	104	100	500	5.90	10.70	Glass Fiber Reinforced Polyamide Head
