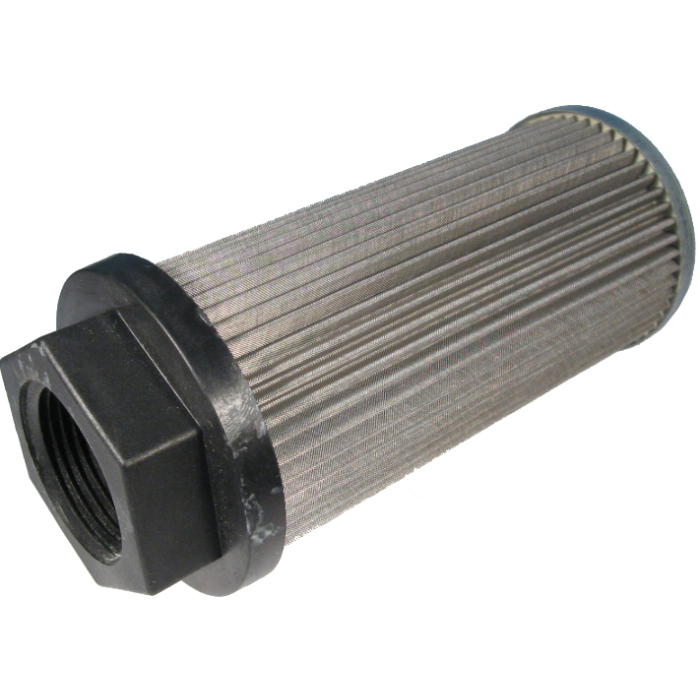

SUS Series Suction Strainer, 2 NPT Port, 120.0 Mesh, Up To 59.80 GPM

Alternate Part Numbers Alternate Part Number C1MC73, Alternate Part Number C1MJ12, Alternate Part Number C1ZS70, Alternate Part Number MI-08763684, Alternate Part Number MINO-02491X84120, Alternate Part Number SUS-102-N32-260-125-P-O, Alternate Part Number SUS-P-102-N32F-260-125-0, Alternate Part Number SUS102N32260125PO, Alternate Part Number SUSP102N32F26012, Alternate Part Number SUSP102N32F2601250, Alternate Part Number TFS-200-0-P	Diameter (in) 4.02	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Features Glass Fiber Reinforced Polyamide Head	Length 10.24	Mesh Size 120	Rated Flow 59.80	Rated Flow 59.8	Screen Area 504	Size 2 NPT	Supplier Part Number 1910001915	Product Weight 1.10 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tank setup where the suction line comes in from the side. does this strainer need to be mounted a certain way?

Question by: Wade W on Jan 8, 2026, 7:21 PM

For a typical install, it is mounted horizontally and you want the top of the strainer sitting at least 3 inches below the lowest oil level to help prevent cavitation. It is meant to run submerged in the reservoir, and it also helps to plan an access opening so you can pull it out for cleaning.

Answer by: Customer Support on Jan 10, 2026, 6:00 AM

strainer's gotta go in horizontal, right? what's the minimum depth it needs to be below the oil level so I ain't running into cavitation problems?

Question by: Darryl H on Mar 24, 2025, 9:20 PM

Horizontal mounting is correct. The top of the strainer needs to sit at least 3 inches below the lowest oil level in the reservoir. That clearance keeps air from getting pulled into the pump and causing cavitation. On larger port sizes the general rule shifts to 1.5 pipe diameters instead of the fixed 3 inches, but for this 2 NPT unit, 3 inches is your number. Make sure you've also got an access opening in the reservoir so you can pull the strainer out for cleaning without a major teardown.

Answer by: Customer Support on Mar 26, 2025, 9:38 AM

Reckon this'd keep the big chunks outta my pump if I sit it right in the hydraulic reservoir?

Question by: Terry P on Sep 7, 2025, 6:09 AM

That's exactly what it's for. Submerge it at least 3 inches below the oil level, and it'll keep those solids from messing up your pump.

Answer by: Customer Support on Sep 8, 2025, 12:30 PM

Similar Products

Model Number	Size	Rated Flow	Mesh Size	Screen Area	Diameter (in)	Length	Features
1910001908	1 NPT	13	120	144	2.68	5.51	Glass Fiber Reinforced Polyamide Head
1910001909	1-1/4 NPT	16.9	120	162	3.40	5.50	Glass Fiber Reinforced Polyamide Head
1910001915	2 NPT	59.8	120	504	4.02	10.24	Glass Fiber Reinforced Polyamide Head
221084	2-1/2 NPT	75	100	400	5.17	10.10	Nylon Head
1910001910	1-1/2 NPT	36.4	120	182	3.46	5.51	Glass Fiber Reinforced Polyamide Head
SUSP131N48F27212	3 NPT	104	100	500	5.90	10.70	Glass Fiber Reinforced Polyamide Head
