Style 1600 Glass-Filled PTFE Piston Seals

Materials	15% glass filled PTFE seal. Rubber energizer.
Note	Piston diameter F dimensions are given for pistons without wear rings.
Pressure Range	0 to 5,000 PSI.
Temperature Range	-40°F to 220°F.

Products

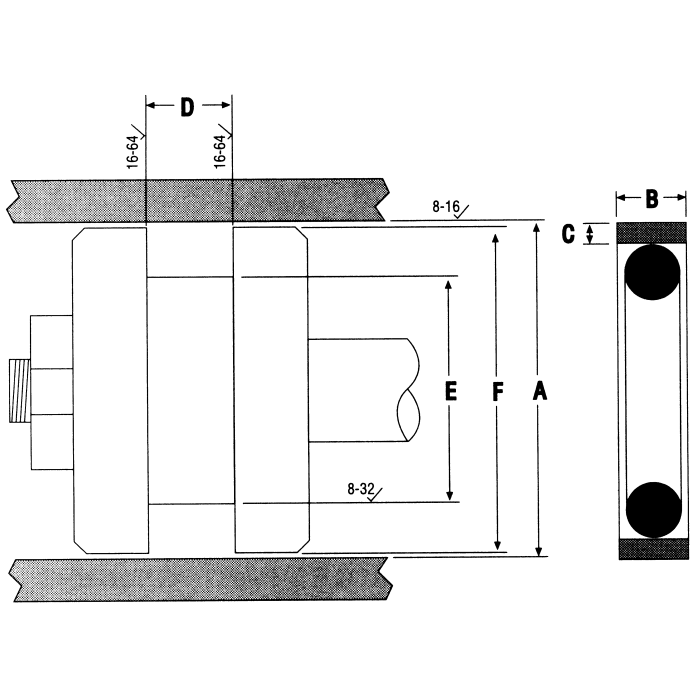

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Bore Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)
PS1600-32	2	0.12	0.055	1.723	1.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-36	2.25	0.12	0.055	1.937	2.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-40	2.5	0.12	0.055	2.223	2.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-44	2.75	0.15	0.085	2.348	2.749	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-48	3	0.15	0.085	2.603	2.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-52	3.25	0.15	0.085	2.853	3.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-56	3.5	0.15	0.085	3.103	3.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-64	4	0.15	0.085	3.6	3.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-68	4.25	0.15	0.085	3.853	4.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
