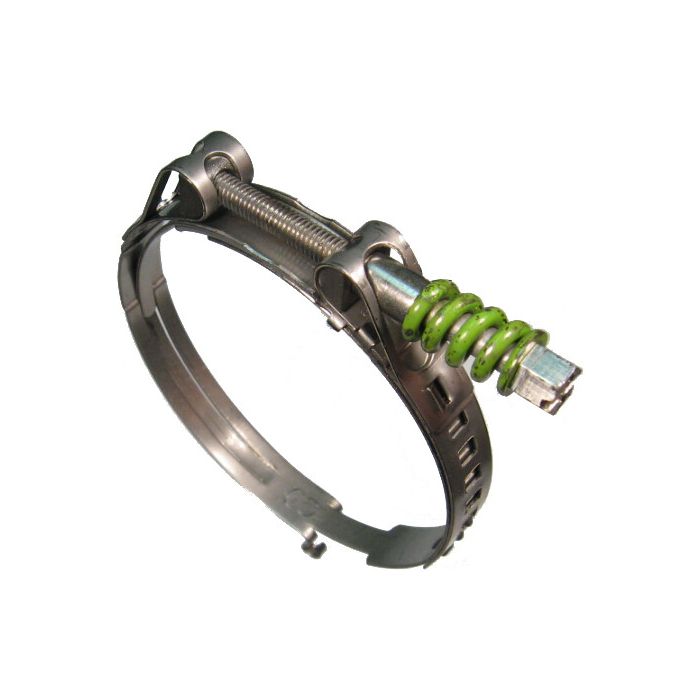

Stepless Spring Clamp For Thermal Cycle Applications, 3.125 - 3.50 Inch Clamping Range, 0.35 Inch Width

Clamping Range (in)
3.125 - 3.50
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Supplier Part Number
17800186
Torque Rating
12-18 lb-in
Torque Rating
12-18 lb-in
Product Weight
0.06 lbs
Alternate Part Numbers
Alternate Part Number C1ZU27, Alternate Part Number MI-08703103, Alternate Part Number MINO-00691X98645

Product Questions & Answers

What size range of hose will this clamp work on?
Question by: Billy R on Jan 16, 2026, 4:38 PM
This clamp fits hoses with an outer diameter between 3.125 and 3.5 inches.
Answer by: Customer Support on Jan 17, 2026, 9:54 PM
does this clamp work on silicone hoses without tearing em up during install? those things can be real finicky if you crank down too hard
Question by: Ronnie H on Apr 19, 2025, 1:56 PM
Silicone hoses are exactly what this clamp was built around. The installation torque requirement is intentionally low, which keeps you from stressing or damaging the hose material during tightening. You tighten the screw until the spring is fully compressed, then add three more full turns. At that point there should be a small gap of at least 1/8 inch between the two D-Nuts, which tells you the torque is right and the hose is not being overloaded. The torque range is 12 to 18 lb-in, so nothing excessive.
Answer by: Customer Support on Apr 20, 2025, 4:41 PM

Similar Products

Model Number Clamping Range (in) Torque Rating Width (in) Price Buy Now
17800178 1.6875 - 1.9375 12-18 lb-in 0.35
17800182 2.375 - 2.75 12-18 lb-in 0.35
17800184 2.75 - 3.125 12-18 lb-in 0.35
17800185 2.9375 - 3.3125 12-18 lb-in 0.35
17800186 3.125 - 3.50 12-18 lb-in 0.35
