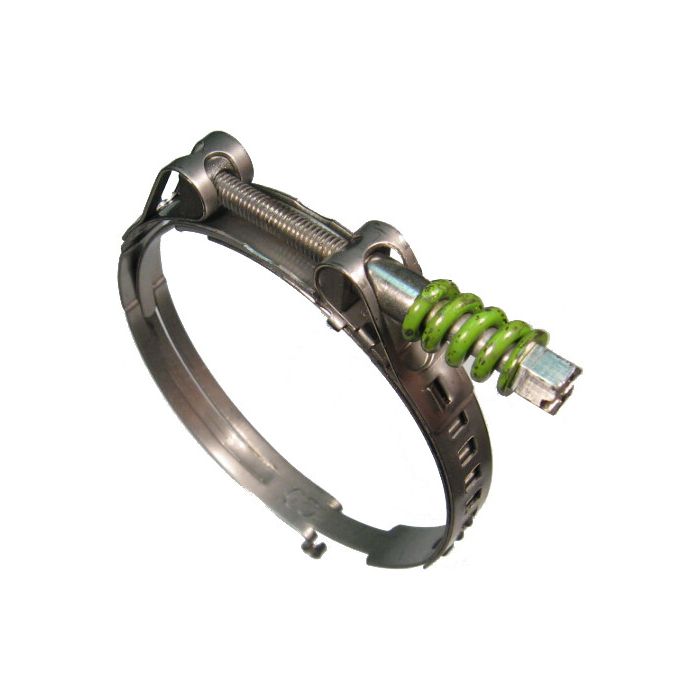

Stepless Spring Clamp For Thermal Cycle Applications, 2.375 - 2.75 Inch Clamping Range, 0.35 Inch Width

Clamping Range (in)
2.375 - 2.75
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Supplier Part Number
17800182
Torque Rating
12-18 lb-in
Torque Rating
12-18 lb-in
Product Weight
0.06 lbs
Alternate Part Numbers
Alternate Part Number C1ZU30, Alternate Part Number MI-06960089, Alternate Part Number MINO-00691X45844

Product Questions & Answers

What size range of hose will this clamp fit on?
Question by: Billy K on Nov 10, 2025, 9:00 PM
It's designed for hoses with an outside diameter between 2.375 and 2.75 inches.
Answer by: Customer Support on Nov 12, 2025, 4:24 PM
got a radiator hose that measures right around 2-1/2 inches, is this clamp in the right ballpark?
Question by: Duane M on Aug 2, 2025, 2:16 PM
Fit comes down to the clamping range, and this one covers 2.375 to 2.75 inches. A hose sitting around 2-1/2 inches falls inside that range, so it is the right size range for that diameter.
Answer by: Customer Support on Aug 4, 2025, 8:57 AM
does this clamp work on silicone hoses or is it gonna be too tight and mess up the hose material
Question by: Joyce C on Jun 30, 2025, 8:17 AM
Low installation torque is one of the things that makes this clamp a good fit for silicone hoses. The torque range runs 12 to 18 lb-in, which keeps stress on the hose material low during installation. The spring action also means it adjusts continuously as the hose expands and contracts with heat cycles, so you're not dealing with a fixed clamp that either loosens up or bites in too hard over time. Just make sure your hose falls somewhere in the 2.375 to 2.75 inch range before ordering.
Answer by: Customer Support on Jul 2, 2025, 6:12 AM

Similar Products

Model Number Clamping Range (in) Torque Rating Width (in) Price Buy Now
17800178 1.6875 - 1.9375 12-18 lb-in 0.35
17800182 2.375 - 2.75 12-18 lb-in 0.35
17800184 2.75 - 3.125 12-18 lb-in 0.35
17800185 2.9375 - 3.3125 12-18 lb-in 0.35
17800186 3.125 - 3.50 12-18 lb-in 0.35
