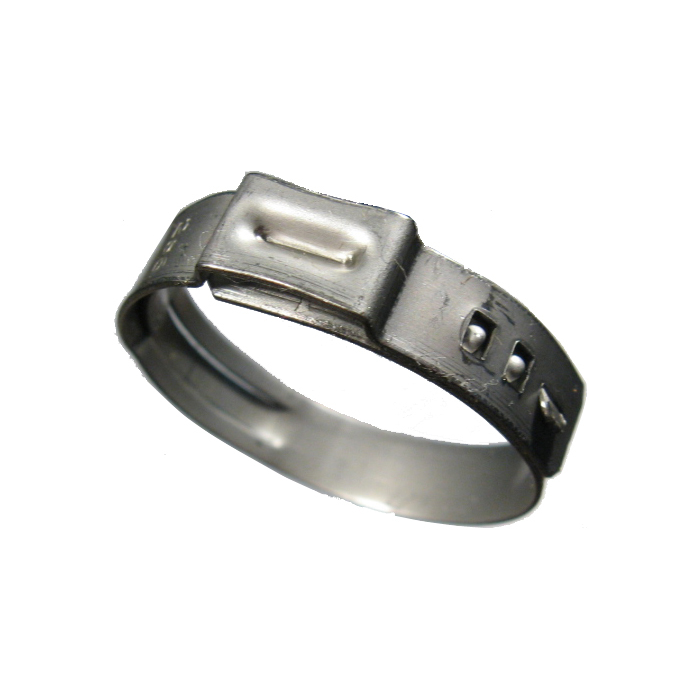

Stepless Ear Pinch Clamp, Stainless, 1.004 - 1.126 Inch Clamping Range, 0.276 Inch Width

Clamping Range (in)
1.004 - 1.126
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Stainless
Nominal Size
1.13
Size
28.6 mm
Supplier Part Number
16700035
Product Weight
0.09 lbs
Alternate Part Numbers
Alternate Part Number C1ES63, Alternate Part Number MI-01555310, Alternate Part Number MINO-00691J50997

Product Questions & Answers

Got some thin-wall silicone hose running about 1.06 inches outside diameter, this clamp gonna fit that alright?
Question by: Sherry C on Mar 8, 2026, 8:04 PM
A 1.06 inch diameter falls right in the middle of the clamping range on this one, which runs from 1.004 up to 1.126 inches, so you're in good shape there. Silicone is also exactly the kind of material this clamp is built around. The smooth inner band keeps it from biting into soft or flexible hose walls, and the tongue-in-groove design seals the full 360 degrees around the line. Just make sure when you crimp it down there's still roughly a 1/16 inch gap showing at the ear. That little bit of leftover tension is what gives it a spring-like grip to hold against pressure swings and hose shrinkage over time.
Answer by: Customer Support on Mar 10, 2026, 6:22 PM
trying to clamp a 1-1/8 inch hose, is this the right size or am i gonna be fighting it?
Question by: Patty C on Jun 22, 2025, 8:33 AM
Go by the clamping range. This clamp covers 1.004 to 1.126 inches, with a nominal size of 1.125 inch, so a hose around 1-1/8 inch OD is right in its window.
Answer by: Customer Support on Jun 23, 2025, 1:51 PM
What size range of hose will this clamp fit securely? I'm using some thick-walled silicone, and want to make sure it's snug.
Question by: Kurt W on Aug 13, 2025, 1:17 PM
This stepless ear pinch clamp is designed for hoses and tubing with an outer diameter between 1.004 and 1.126 inches. It's best suited for low durometer and thin-walled options like silicone, vinyl, and polyurethane.
Answer by: Customer Support on Aug 14, 2025, 5:30 PM

Similar Products

Model Number Materials Size Nominal Size Clamping Range (in) Width (in) Price Buy Now
16700010 Stainless 13.3 mm 0.5 0.425 - 0.524 0.276
16700013 Stainless 14.5 mm 0.5625 0.472 - 0.571 0.276
16700016 Stainless 15.7 mm 0.625 0.520 - 0.618 0.276
16700020 Stainless 18.5 mm 0.719 0.602 - 0.728 0.276
16700026 Stainless 22.6 mm 0.875 0.764 - 0.890 0.276
16700031 Stainless 25.6 mm 1 0.882 - 1.008 0.276
16700035 Stainless 28.6 mm 1.125 1.004 - 1.126 0.276
16701009 Stainless (Degreased) 17.0 mm 0.6875 0.571 - 0.669 0.276
