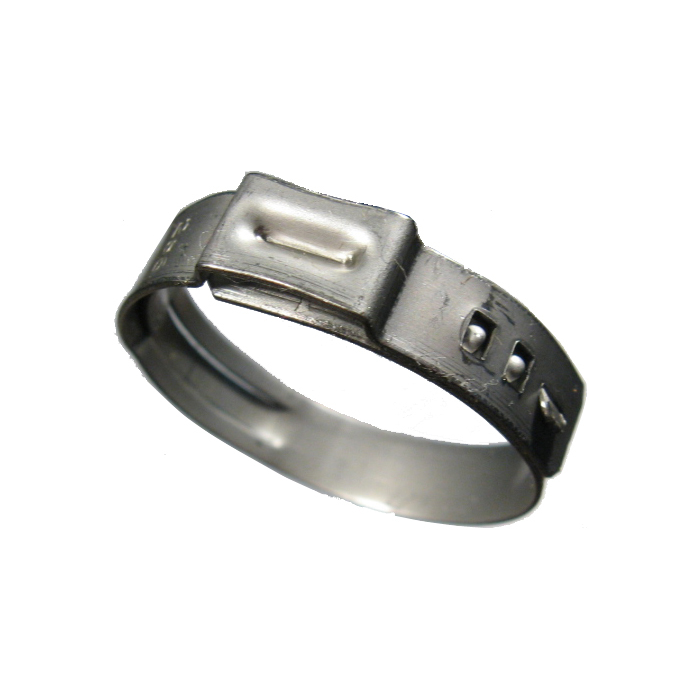

Stepless Ear Pinch Clamp, Stainless, 0.764 - 0.890 Inch Clamping Range, 0.276 Inch Width

Clamping Range (in)
0.764 - 0.890
Brand
Oetiker Inc.
Brand
Oetiker
Pack Size
1.00
UOM
EA
Materials
Stainless
Nominal Size
0.88
Size
22.6 mm
Supplier Part Number
16700026
Product Weight
0.08 lbs
Alternate Part Numbers
Alternate Part Number C1ES61, Alternate Part Number MI-01555308, Alternate Part Number MINO-00691J50995

Product Questions & Answers

been trying to track down the right size clamp for a vinyl coolant line on a small engine setup, the hose OD runs right around .840 inches. this one gonna work or is that pushing the limits of the range?
Question by: Keith G on Dec 11, 2025, 5:55 PM
That measurement falls comfortably within the clamping range on this one, which runs from 0.764 to 0.890 inches. At .840 you have got room on both ends, so it should seat well. One thing worth knowing on the install side: when you crimp it down, you want to see roughly a 1/16 inch gap remaining in the ear after pinching. That little bit of tension is what gives it a spring-like grip against pressure, vibration, and any shrinkage the hose sees over time from heat cycles.
Answer by: Customer Support on Dec 13, 2025, 8:04 AM
trying to clamp a silicone line right around 7/8, is this the right size or am i gonna fight it?
Question by: Stan T on Jun 13, 2025, 7:22 AM
For a 7/8 inch line, the key is the actual outside diameter. This clamp’s working clamping range is 0.764 to 0.890 inches, with a nominal size of 0.875 inch, so it fits as long as your hose or tubing OD lands in that range.
Answer by: Customer Support on Jun 14, 2025, 6:55 PM
What size tool do I need to get these clamps on right?
Question by: Lynn A on Nov 25, 2025, 7:59 AM
Oetiker recommends using their own pincers or a similar style approved by them to make sure these clamps get a proper grip.
Answer by: Customer Support on Nov 27, 2025, 6:32 AM

Similar Products

Model Number Materials Size Nominal Size Clamping Range (in) Width (in) Price Buy Now
16700010 Stainless 13.3 mm 0.5 0.425 - 0.524 0.276
16700013 Stainless 14.5 mm 0.5625 0.472 - 0.571 0.276
16700016 Stainless 15.7 mm 0.625 0.520 - 0.618 0.276
16700020 Stainless 18.5 mm 0.719 0.602 - 0.728 0.276
16700026 Stainless 22.6 mm 0.875 0.764 - 0.890 0.276
16700031 Stainless 25.6 mm 1 0.882 - 1.008 0.276
16700035 Stainless 28.6 mm 1.125 1.004 - 1.126 0.276
16701009 Stainless (Degreased) 17.0 mm 0.6875 0.571 - 0.669 0.276
