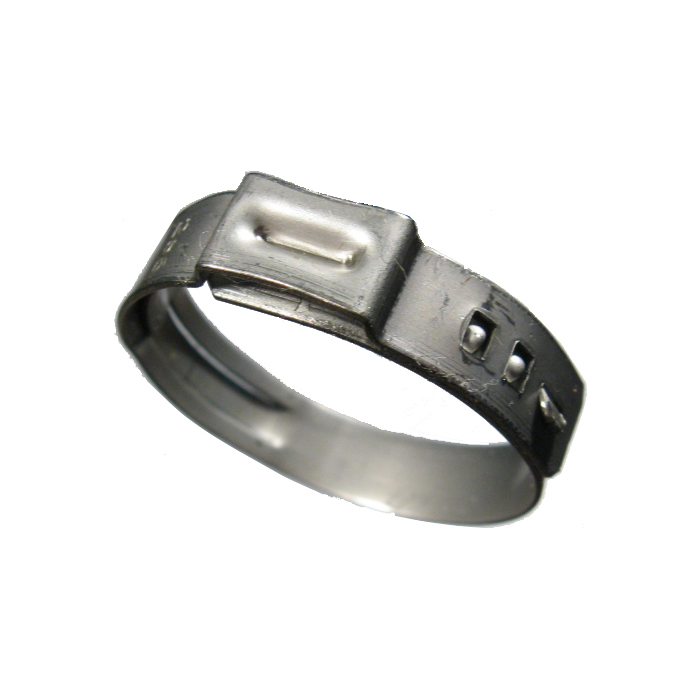

Stepless Ear Pinch Clamp, Stainless, 0.472 - 0.571 Inch Clamping Range, 0.276 Inch Width

Clamping Range (in) 0.472 - 0.571	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Stainless	Nominal Size 0.56	Size 14.5 mm	Supplier Part Number 16700013	Product Weight 0.05 lbs	Alternate Part Numbers Alternate Part Number C1ES58, Alternate Part Number MI-01555305, Alternate Part Number MINO-00691J50992

Product Questions & Answers 1

Product Questions & Answers

these work on silicone hose? got some thin-wall tubing i need to clamp down and dont want to tear it up

Question by: Duane E on Aug 9, 2025, 11:06 AM

Silicone and thin-walled tubing is exactly what these are built for. The inner band is smooth all the way around, so it won't bite into soft material the way a worm gear clamp can. Works well on vinyl and polyurethane lines too. Just make sure your hose outer diameter falls somewhere between 0.472 and 0.571 inches before ordering.

Answer by: Customer Support on Aug 11, 2025, 6:24 AM

Similar Products

Model Number	Materials	Size	Nominal Size	Clamping Range (in)	Width (in)
16700010	Stainless	13.3 mm	0.5	0.425 - 0.524	0.276
16700013	Stainless	14.5 mm	0.5625	0.472 - 0.571	0.276
16700016	Stainless	15.7 mm	0.625	0.520 - 0.618	0.276
16700020	Stainless	18.5 mm	0.719	0.602 - 0.728	0.276
16700026	Stainless	22.6 mm	0.875	0.764 - 0.890	0.276
16700031	Stainless	25.6 mm	1	0.882 - 1.008	0.276
16700035	Stainless	28.6 mm	1.125	1.004 - 1.126	0.276
16701009	Stainless (Degreased)	17.0 mm	0.6875	0.571 - 0.669	0.276
