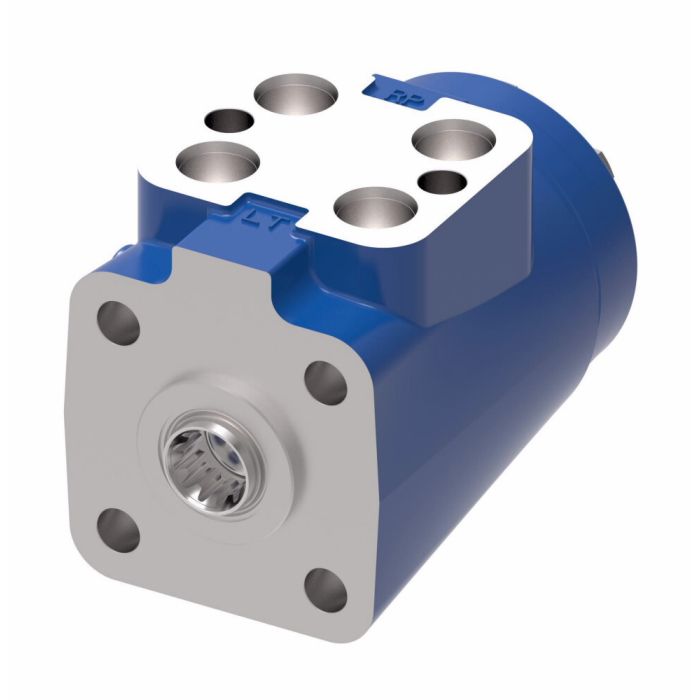

DANFOSS / EATON CHAR-LYNN 10 SERIES STEERING CONTR

Additional Ports None	Design Code 2	Brand Central Hydraulics Inc	Brand Central Hydraulics	Pack Size 1.00	UOM EA	Flow Amplification None	Flow Rate1 30-45 LPM [8.00-12.00 GPM] Open Center, Closed Center, Load Sensing	Identification Eaton Product Number On Nameplate	Inlet Load Sense Valve Sett 0 b	Inlet Pressure Rating 207	Input Torque Standard	Integral Valves Yes	Load Circuit Non Reaction	Maximum Back Pressure 21	Mechanical Interface Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa	Mounting Threads 2X M12 X 1.75-6H X 24.1 [.95] Min Depth Port Face 4X M10X1.5-6H Mounting Face	Recommended Filtration Level ISO 18/13 Cleanliness	Return Pressure Rating 10	Special Features None	Supplier Part Number 200-0039-002	Valve Options Manual Steering Check Valve	Product Weight 17.77 lbs	Alternate Part Numbers Alternate Part Number 200-0039-002, Alternate Part Number C1JX53

Product Questions & Answers 1

Product Questions & Answers

Hey, will this thing bolt right up where my old Char-Lynn unit was? Gotta get this tractor back running soon.

Question by: Hank M on Apr 26, 2025, 6:03 PM

Mounting this steering control unit involves using 2X M12 X 1.75-6H bolts with a minimum depth of 24.1mm [.95 inches] on the port face, along with 4X M10X1.5-6H bolts on the mounting face. Ensure these match your existing setup for proper fit.

Answer by: Customer Support on Apr 28, 2025, 7:14 AM
