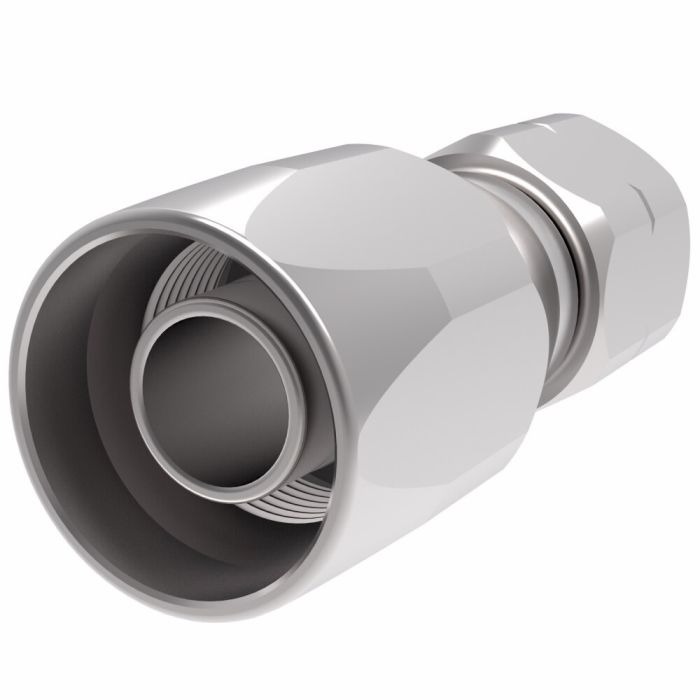

Steel Reusable 2 Wire Braid Skive Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, Straight

It matches an -08 hose size and has a 3/4-16 female SAE 37 degree (JIC) flare swivel on the end. The style is straight, and it is a reusable steel fitting built for 2 wire braid skive hose.

That's what this one is built for. It's a reusable skive-style fitting sized for -08 hose with 2-wire braid construction. The skive process means you'll be removing the outer cover of the hose before assembly, which is standard for this fitting type. Reusable means no crimping required, so it can be disassembled and put back on if needed.

This fitting is designed for use with -08 size hose.

Yes, this fitting is designed for use with two-wire braid hydraulic hose. It's a skive-type fitting, so it requires removing the outer cover of the hose before installation.

Reusable here means you can disassemble the fitting from a hose without destroying it, then reassemble it onto a new hose of the same size. The skive process removes the outer cover of the hose before installation, and since no crimping is involved, the fitting stays intact after removal. That makes it practical for field repairs or situations where you need to reuse hardware rather than cut and crimp a new assembly every time. Just make sure the replacement hose is the correct dash 8 size to match what this fitting is built for.

It’s a 4721 Series steel reusable fitting made for 2 wire braid hose in a -08 size. The thread/connection end is a 3/4-16 female JIC 37 degree flare swivel, so it mates to a matching 37 degree JIC male flare.
