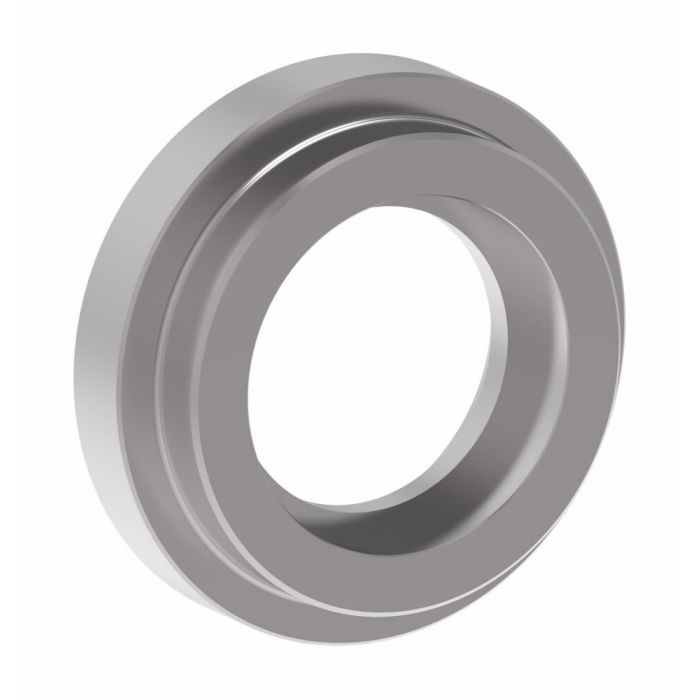

Steel Adapter, 1.00 Inch O-Ring Face Seal Shoulder Internal Braze

A 0.56	Alternate Part Numbers Alternate Part Number C1EP87	B 0.50	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	F 1	Supplier Part Number FC1229-1616S	Thread Sealant No	Tube O.D. 1	Tube O.D. 1	Product Weight 0.07 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that needs a 1.00 inch ORFS shoulder, is this the right adapter or am i mixin stuff up

Question by: Johnny G on Dec 11, 2025, 7:01 PM

The key identifier on this part is the 1.00 inch O-Ring Face Seal (ORFS) shoulder with an internal braze connection. It is an Eaton Aeroquip FC1229 series steel adapter (SKU FC1229-1616S, also known as C1EP87), and the listed dimensions are A 0.56 inch and B 0.5 inch.

Answer by: Customer Support on Dec 12, 2025, 9:47 PM

Wondering if this adapter will hold up in a hydraulic system running at pretty high pressure?

Question by: Sherry W on Oct 10, 2025, 5:52 PM

Constructed from premium-grade steel, this adapter is designed to offer exceptional resistance to wear and corrosion, making it suitable for demanding hydraulic systems.

Answer by: Customer Support on Oct 12, 2025, 8:10 AM

Similar Products

Model Number	Tube O.D.	A	B	F
FC1229-0606S	0.38	0.29	0.25	0.38
FC1229-0808S	0.5	0.42	0.38	0.5
FC1229-1010S	0.63	0.42	0.38	0.63
FC1229-1212S	0.75	0.44	0.38	0.75
FC1229-1616S	1	0.56	0.5	1
