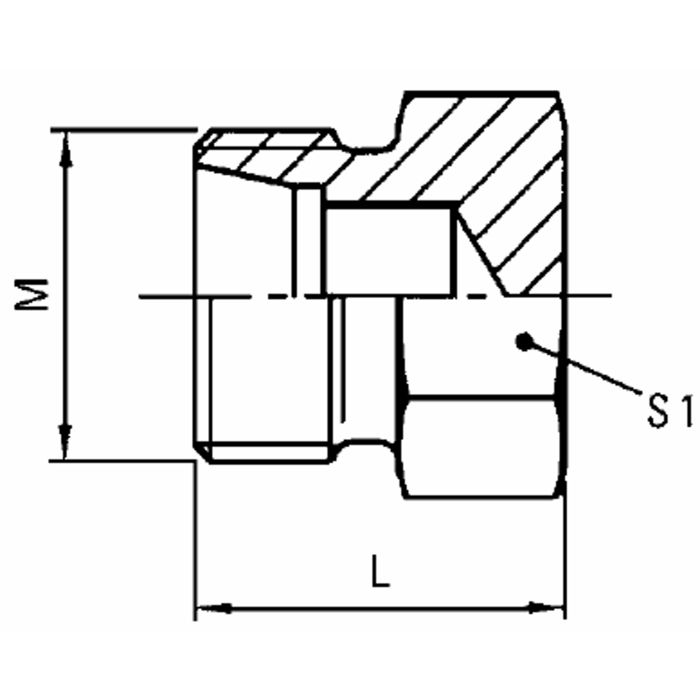

Steel Metric Flareless Fitting, 16.00 mm S Series Tube Plug, M 24x1.5

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	L 24	Maximum Operating Pressure 630	Series S	Supplier Part Number WAL063859	Thread 1 M 24x1.5	Tube O.D. 16	Tube O.D. 16	Alternate Part Numbers Alternate Part Number C1MC88	Product Weight 0.10 lbs

Product Questions & Answers

Reckon this'll hold up okay in a hydraulic system pushing close to that max pressure they list?

Question by: Kirk Y on Sep 27, 2025, 5:59 PM

The S Series designation means it's designed to handle those higher pressure ratings, up to 630 bar, with a solid safety factor built in.

Answer by: Customer Support on Sep 28, 2025, 6:54 PM

got a 16mm tube line i need to cap off, is this the right plug for that?

Question by: Chad O on Dec 30, 2025, 6:51 PM

For a 16.00 mm tube O.D. in the S Series, this part is a tube plug sized for that tube diameter, with an M 24x1.5 threaded end.

Answer by: Customer Support on Jan 1, 2026, 10:18 AM

Model Number	Tube O.D.	Series	Maximum Operating Pressure	Thread 1	L
WAL061866	18	L	400	M 26x1.5	21
WAL024051	12	S	630	M 20x1.5	21
WAL063859	16	S	630	M 24x1.5	24
WAL609766	8	L	500	M 14x1.5	17
WAL609768	22	L	250	M 30x2.0	23
