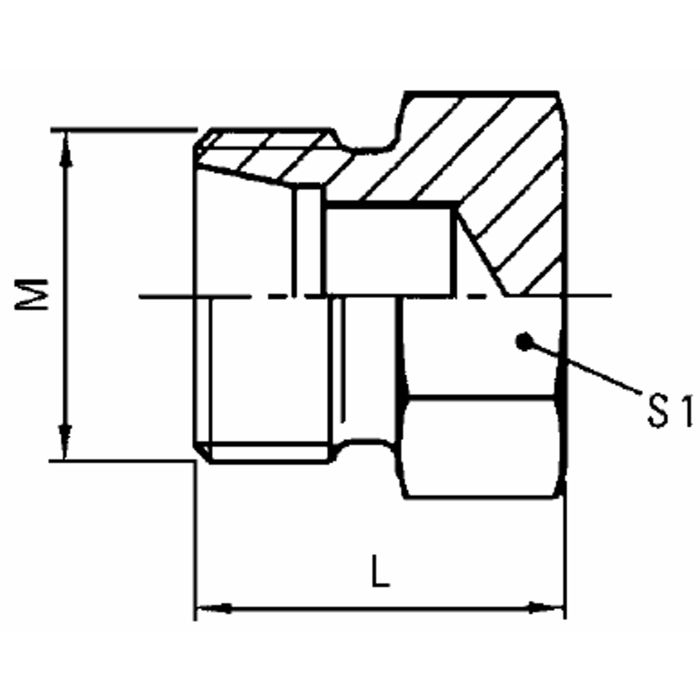

Steel Metric Flareless Fitting, 18.00 mm L Series Tube Plug, M 26x1.5

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	L 21	Maximum Operating Pressure 400	Series L	Supplier Part Number WAL061866	Thread 1 M 26x1.5	Tube O.D. 18	Tube O.D. 18	Alternate Part Numbers Alternate Part Number C1LD21	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of temperatures can this plug handle?

Question by: Terry B on Dec 29, 2025, 6:54 PM

This steel tube plug is engineered to maintain its integrity in temperatures up to 120 degrees Celsius.

Answer by: Customer Support on Dec 31, 2025, 11:06 AM

fitting says M 26x1.5 thread -- does that match up with an 18mm tube line or is that the port size on the equipment side?

Question by: Johnny B on Jul 7, 2025, 8:49 PM

The M 26x1.5 is the thread size on the fitting itself, and the 18mm refers to the outer diameter of the tube it's meant to plug. So you'd be looking at an 18mm OD tube line paired with that M 26x1.5 threaded connection. Both specs work together on the same fitting, not on opposite ends.

Answer by: Customer Support on Jul 9, 2025, 6:07 AM

got an 18mm tube line i need to cap off. is this the plug that matches that size, or am i lookin at it wrong

Question by: Diane G on Oct 24, 2025, 9:43 PM

For an 18.00 mm outside diameter tube in the L Series, this part is the matching tube plug. It’s specified as an 18 mm L Series tube plug with an M 26x1.5 thread.

Answer by: Customer Support on Oct 26, 2025, 7:48 AM

Similar Products

Model Number	Tube O.D.	Series	Maximum Operating Pressure	Thread 1	L
WAL061866	18	L	400	M 26x1.5	21
WAL024051	12	S	630	M 20x1.5	21
WAL063859	16	S	630	M 24x1.5	24
WAL609766	8	L	500	M 14x1.5	17
WAL609768	22	L	250	M 30x2.0	23
