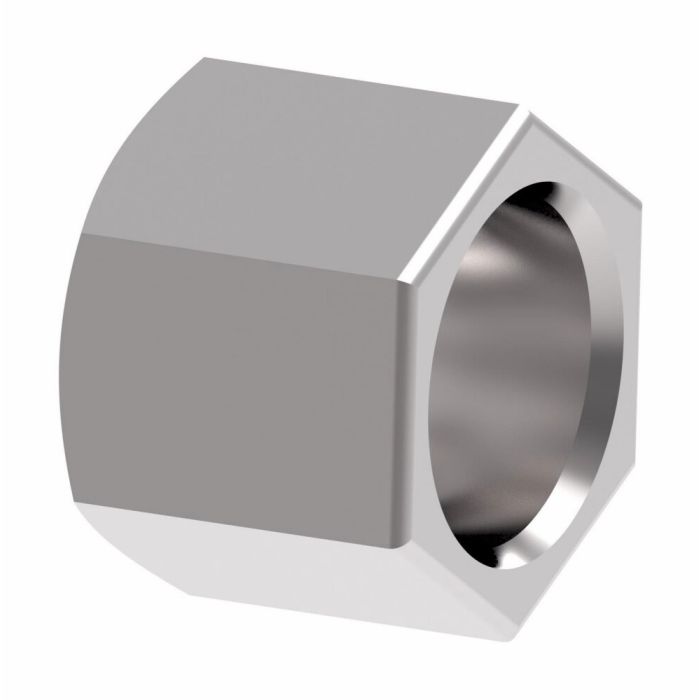

Steel Metric Flareless Fitting, 22.00 mm WALpro Series Nut

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Maximum Operating Pressure 250	Series WALpro	Supplier Part Number WAL039848	Thread 1 M 30x2.0	Tube O.D. 22	Tube O.D. 22	Alternate Part Numbers Alternate Part Number C1KX16, Alternate Part Number MI-01675320, Alternate Part Number MINO-04854Q05317	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

thread on this nut is M 30x2.0 -- will that work with a 22mm OD tube on a standard metric flareless fitting setup?

Question by: Cindy K on Jun 27, 2025, 12:04 PM

that pairing is exactly what this nut is built around. The M 30x2.0 thread and 22 mm outer diameter tube sizing go hand in hand in the WALpro metric flareless system, so if your tube and mating body are both spec'd to those dimensions, it'll fit right in without any modification.

Answer by: Customer Support on Jun 29, 2025, 6:27 AM

Will this nut work with standard metric hydraulic tubing?

Question by: Pete T on Mar 31, 2026, 6:37 PM

This Eaton Aeroquip WALpro Series nut fits 22 mm outer diameter tubes, so if your tubing matches that, you should be good to go.

Answer by: Customer Support on Apr 2, 2026, 4:18 PM

got a 22mm tube and a nut with M30x2.0 threads, is this the right replacement or am i off a size?

Question by: Rick R on Jun 21, 2025, 8:13 PM

Match it up on two points and you are in the right lane. This is a WALpro series union nut with an M 30x2.0 thread and it is meant for 22 mm outer diameter tube.

Answer by: Customer Support on Jun 22, 2025, 9:43 PM

Similar Products

Model Number	Tube O.D.	Series	Maximum Operating Pressure	Thread 1
WAL039843	8	WALpro	500	M 14x1.5
WAL039844	10	WALpro	500	M 16x1.5
WAL039857	16	WALpro	630	M 24x1.5
WAL039859	25	WALpro	420	M 36x2.0
WAL039860	30	WALpro	420	M 42x2.0
WAL039840	6	LL	100	M 10x1.0
WAL039842	6	WALpro	500	M 12x1.5
WAL039845	12	WALpro	400	M 18x1.5
WAL039846	15	WALPro	400	M 22x1.5
WAL039847	18	WALpro	400	M 26x1.5
WAL039848	22	WALpro	250	M 30x2.0
WAL039852	6	WALPro	800	M 14x1.5
WAL039853	8	WALPro	800	M 16x1.5
WAL039854	10	WALPro	800	M 18x1.5
WAL039855	12	WALPro	630	M 20x1.5
WAL039858	20	WALpro	420	M 30x2.0
