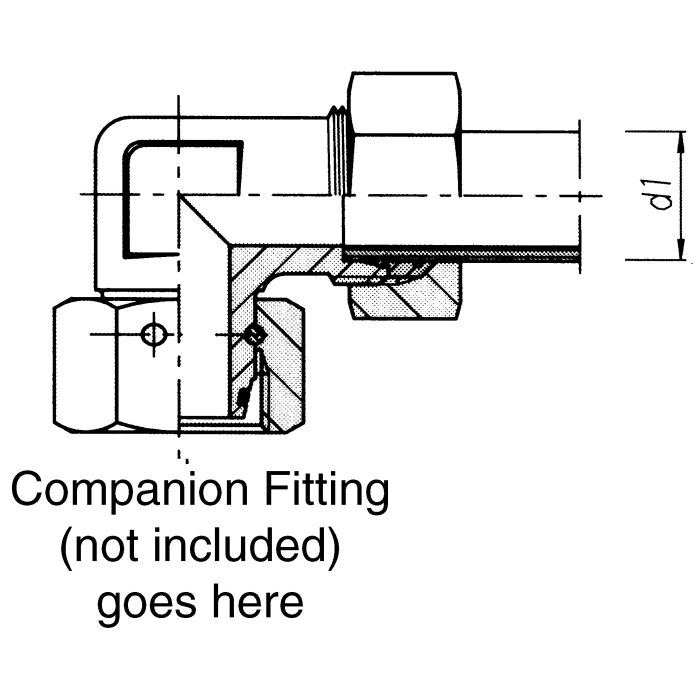

Steel Metric Flareless Fitting, 22.00 mm L Series 90 deg Swivel Elbow

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Maximum Operating Pressure 250	Series L	Supplier Part Number WAL374560	Tube O.D. 22	Tube O.D. 22	Alternate Part Numbers Alternate Part Number C1KY83, Alternate Part Number MI-08752985, Alternate Part Number MINO-04854X98477	Product Weight 0.74 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the max temp this fitting can handle? running a hydraulic line near some heat sources and want to make sure it ain't gonna cause problems

Question by: Donna S on Oct 24, 2025, 9:18 AM

Up to 120°C is the rated temperature limit for this fitting. As long as your system stays within that range, you're in good shape. It's forged or drawn high-quality steel, so it holds up well under the kind of heat typical hydraulic systems generate near machinery or engines.

Answer by: Customer Support on Oct 25, 2025, 3:22 PM

trying to swap out an elbow on a metric tube run, is this the 22 mm one in the L series with a swivel?

Question by: Frank M on Jan 30, 2026, 7:04 PM

For a 22.00 mm tube outside diameter in the L Series, this part is a 90 degree swivel elbow in Eaton Aeroquip’s metric steel flareless line, built to DIN design and dimension standards.

Answer by: Customer Support on Feb 1, 2026, 5:54 PM

What kind of temperatures can this elbow fitting handle?

Question by: Ricky R on Feb 11, 2026, 6:33 PM

It's rated to handle temperatures up to 120°C.

Answer by: Customer Support on Feb 13, 2026, 6:43 AM
