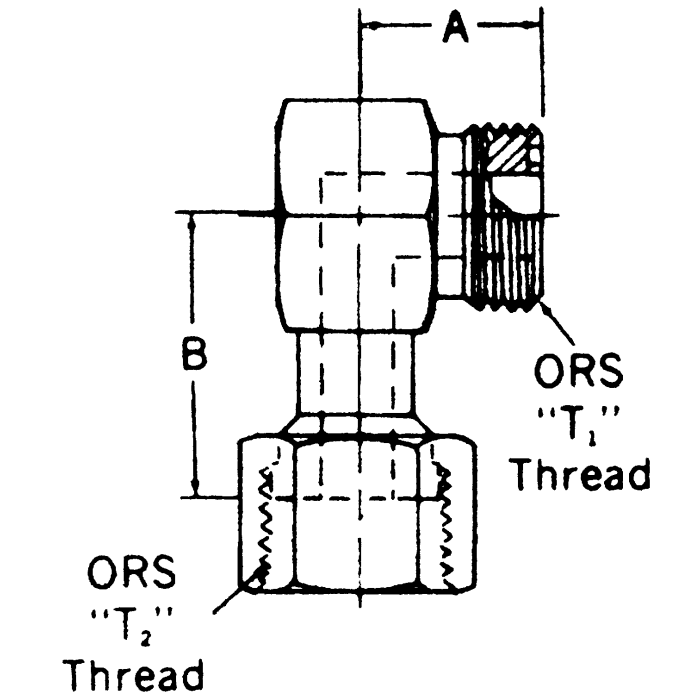

Steel Adapters, Male SAE O-Ring Face Seal To Female SAE O-Ring Face Seal, 90 deg Elbow
Products
| Model Number | Tube O.D. | Thread 1 | Thread 2 | A | B | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| FF2098T1616S | 1 | 1-7/16-12 | 1-7/16-12 | 1.64 | 2.1 |
|
|
| FF2098T0404S | 0.25 | 9/16-18 | 9/16-18 | 0.85 | 1.04 |
|
|
| FF2098T0606S | 0.38 | 11/16-16 | 11/16-16 | 0.98 | 1.15 |
|
|
| FF2098T0808S | 0.5 | 13/16-16 | 13/16-16 | 1.1 | 1.49 |
|
|
| FF2098T1010S | 0.63 | 1-14 | 1-14 | 1.31 | 1.62 |
|
|
| FF2098T1212S | 0.75 | 1-3/16-12 | 1-3/16-12 | 1.47 | 1.82 |
|
