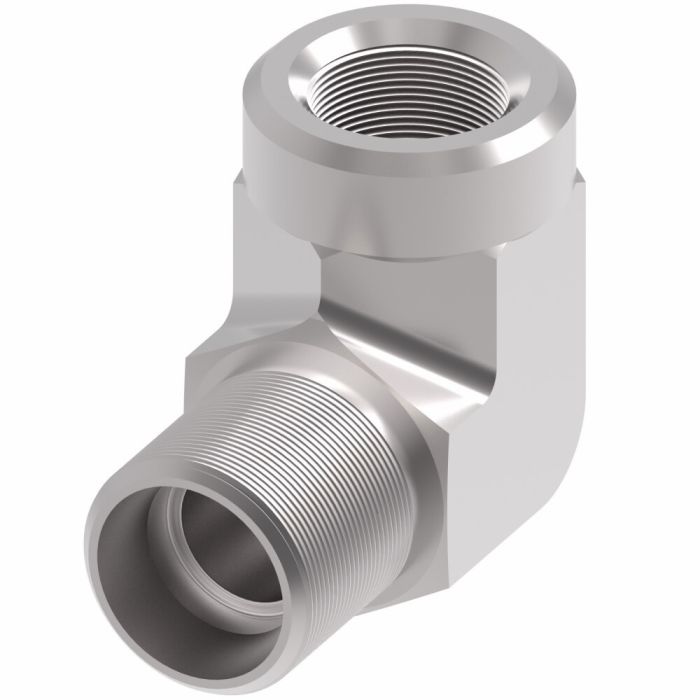

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-7/16-12 Female SAE O-Ring Face Seal, 90 deg Elbow

A 1.64	Alternate Part Numbers Alternate Part Number C1FR90, Alternate Part Number MI-00362306, Alternate Part Number MINO-00015F96766	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 2.10	Drop Dimension 2.10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Type 1 ORS	End Type 2 ORS	Hex Size 2 1.62	Minimum Working Temperature -65	Seal Part if Included FF9446-21	Supplier Part Number FF2098T1616S	Thread 1 1-7/16-12	Thread 2 1-7/16-12	Thread Sealant No	Tube O.D. 1	Tube O.D. 1	Product Weight 1.83 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this here adapter will hold up okay in a chemical plant environment?

Question by: Rick S on Sep 22, 2025, 4:13 PM

Its applications include chemical processing, so it should be suitable for that environment.

Answer by: Customer Support on Sep 24, 2025, 8:31 AM

trying to replace an elbow on a line, how do i know if this one matches what ive got?

Question by: Shane M on Mar 30, 2025, 1:20 PM

Match the thread and end style on both sides. This adapter is a 90 degree elbow with a 1-7/16-12 male SAE O-Ring Face Seal on one end and a 1-7/16-12 female SAE O-Ring Face Seal on the other, so it is meant for ORS to ORS connections with that same 1-7/16-12 thread size.

Answer by: Customer Support on Apr 1, 2025, 8:45 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
FF2098T1616S	1	1-7/16-12	1-7/16-12	1.64	2.1
FF2098T0404S	0.25	9/16-18	9/16-18	0.85	1.04
FF2098T0606S	0.38	11/16-16	11/16-16	0.98	1.15
FF2098T0808S	0.5	13/16-16	13/16-16	1.1	1.49
FF2098T1010S	0.63	1-14	1-14	1.31	1.62
FF2098T1212S	0.75	1-3/16-12	1-3/16-12	1.47	1.82
