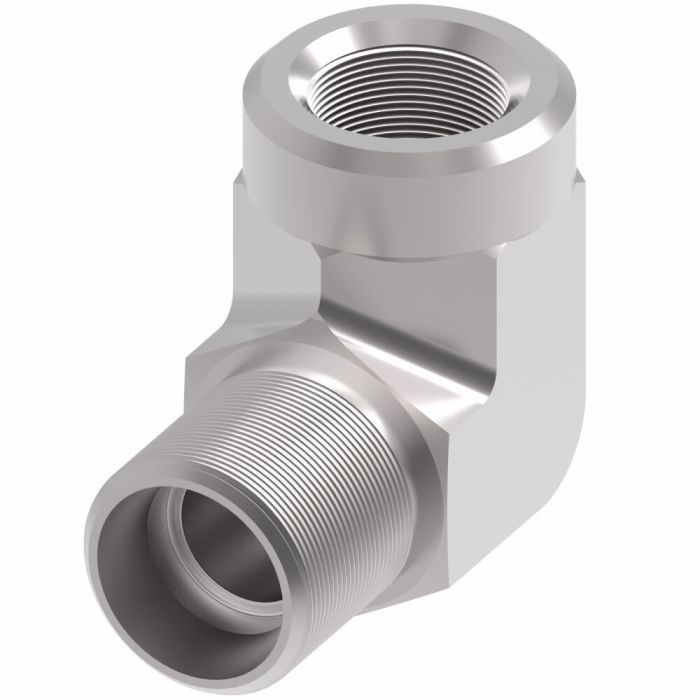

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-14 Female SAE O-Ring Face Seal, 90 deg Elbow

A 1.31	Alternate Part Numbers Alternate Part Number C1HX81, Alternate Part Number MI-04895431, Alternate Part Number MINO-00015X51294	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 1.62	Drop Dimension 1.62	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 1 1	End Size 2 1	End Type 1 ORS	End Type 2 ORS	Hex Size 2 1.12	Minimum Working Temperature -65	Seal Part if Included FF9446-16	Supplier Part Number FF2098T1010S	Thread 1 1-14	Thread 2 1-14	Thread Sealant No	Tube O.D. 0.63	Tube O.D. 0.63	Product Weight 0.54 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap out an elbow on a line, is this one ORS on both sides with 1-14 threads?

Question by: Floyd P on Mar 3, 2026, 3:47 PM

For an ORS to ORS elbow connection, this adapter matches 1-14 male SAE O-ring face seal on one end and 1-14 female SAE O-ring face seal on the other, in a 90 degree elbow.

Answer by: Customer Support on Mar 5, 2026, 12:44 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
FF2098T1616S	1	1-7/16-12	1-7/16-12	1.64	2.1
FF2098T0404S	0.25	9/16-18	9/16-18	0.85	1.04
FF2098T0606S	0.38	11/16-16	11/16-16	0.98	1.15
FF2098T0808S	0.5	13/16-16	13/16-16	1.1	1.49
FF2098T1010S	0.63	1-14	1-14	1.31	1.62
FF2098T1212S	0.75	1-3/16-12	1-3/16-12	1.47	1.82
