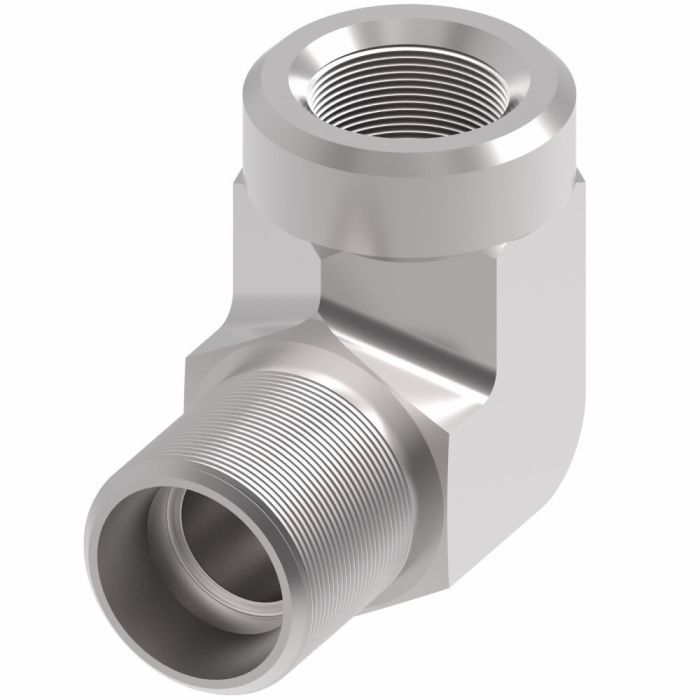

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 13/16-16 Female SAE O-Ring Face Seal, 90 deg Elbow

Ask A Question
A
1.10
Alternate Part Numbers
Alternate Part Number C1GG81, Alternate Part Number MI-02030372, Alternate Part Number MINO-00015J26310
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.49
Drop Dimension
1.49
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.81
End Size 2
0.81
End Type 1
ORS
End Type 2
ORS
Hex Size 2
0.94
Minimum Working Temperature
-65
Supplier Part Number
FF2098T0808S
Thread 1
13/16-16
Thread 2
13/16-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
1.41 lbs
Product Questions & Answers 1

Product Questions & Answers

got a tight spot in a hydraulic line where I need to redirect flow without adding a bunch of extra fittings, would this 90-degree elbow adapter work for that kind of situation?
Question by: Cody M on Feb 8, 2026, 10:24 AM
That's the kind of job this fitting handles well. The 90-degree elbow configuration lets you redirect your hydraulic line in a confined space without needing additional couplings or extensions. Both ends are 13/16-16 SAE O-Ring Face Seal connections, so as long as your existing lines are using the same ORS thread size and style on both sides, this should drop right in and give you a clean, secure connection.
Answer by: Customer Support on Feb 10, 2026, 6:11 AM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Buy Now
FF2098T1616S 1 1-7/16-12 1-7/16-12 1.64 2.1
FF2098T0404S 0.25 9/16-18 9/16-18 0.85 1.04
FF2098T0606S 0.38 11/16-16 11/16-16 0.98 1.15
FF2098T0808S 0.5 13/16-16 13/16-16 1.1 1.49
FF2098T1010S 0.63 1-14 1-14 1.31 1.62
FF2098T1212S 0.75 1-3/16-12 1-3/16-12 1.47 1.82
