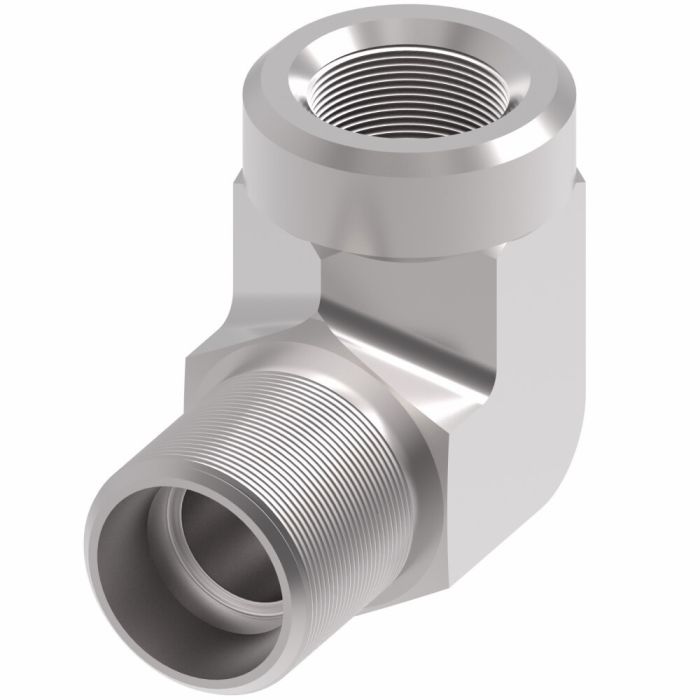

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 11/16-16 Female SAE O-Ring Face Seal, 90 deg Elbow

A 0.98	Alternate Part Numbers Alternate Part Number C1CV16, Alternate Part Number MI-02030410, Alternate Part Number MINO-00015J26348	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 1.15	Drop Dimension 1.15	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 1 0.69	End Size 2 0.75	End Type 1 ORS	End Type 2 ORS	Hex Size 2 0.81	Minimum Working Temperature -65	Seal Part if Included FF9446-12	Supplier Part Number FF2098T0606S	Thread 1 11/16-16	Thread 2 11/16-16	Thread Sealant No	Tube O.D. 0.38	Tube O.D. 0.38	Product Weight 0.18 lbs

Product Questions & Answers 1

Product Questions & Answers

got a tight corner on a hydraulic line run near the pump outlet and need a 90-degree ORFS fitting that won't take up a ton of room. this one work for that kind of thing?

Question by: Rod E on Feb 24, 2026, 3:32 PM

Tight spots are exactly what this fitting is built around. The 90-degree elbow lets you redirect a hydraulic line at a right angle without needing extra clearance for a straight adapter and a separate bend. Both ends are 11/16-16 SAE O-Ring Face Seal, so as long as your port and your hose end match that thread and connection type, it drops right in. The ORFS design also gives you a reliable metal-to-face seal with an O-ring, which holds up well in high-pressure hydraulic circuits where leak paths need to be tight.

Answer by: Customer Support on Feb 26, 2026, 10:31 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
FF2098T1616S	1	1-7/16-12	1-7/16-12	1.64	2.1
FF2098T0404S	0.25	9/16-18	9/16-18	0.85	1.04
FF2098T0606S	0.38	11/16-16	11/16-16	0.98	1.15
FF2098T0808S	0.5	13/16-16	13/16-16	1.1	1.49
FF2098T1010S	0.63	1-14	1-14	1.31	1.62
FF2098T1212S	0.75	1-3/16-12	1-3/16-12	1.47	1.82
