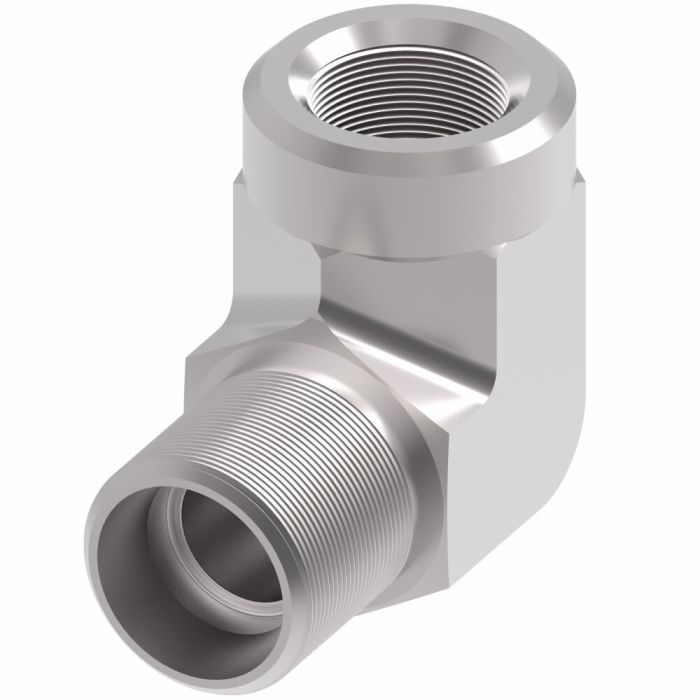

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Female SAE O-Ring Face Seal, 90 deg Elbow

A 0.85	Alternate Part Numbers Alternate Part Number C1JA81, Alternate Part Number MI-02030371, Alternate Part Number MINO-00015J26309	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 1.04	Drop Dimension 1.04	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 1 0.56	End Size 2 0.56	End Type 1 ORS	End Type 2 ORS	Hex Size 2 0.69	Minimum Working Temperature -65	Supplier Part Number FF2098T0404S	Thread 1 9/16-18	Thread 2 9/16-18	Thread Sealant No	Tube O.D. 0.25	Tube O.D. 0.25	Product Weight 0.23 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an elbow on a line, is this one 9/16-18 ORFS on both ends or am i reading it wrong

Question by: Wayne J on Mar 4, 2026, 7:27 AM

You’re reading it right. It’s a 90 degree steel elbow adapter with a 9/16-18 male SAE O-Ring Face Seal on one side and a 9/16-18 female SAE O-Ring Face Seal on the other.

Answer by: Customer Support on Mar 5, 2026, 3:33 PM

what industries is this elbow adapter actually built for? got one going into a pretty rough setup and want to make sure it ain't overkill or underkill

Question by: Lance D on Feb 14, 2026, 7:59 AM

Marine and military environments, chemical processing, pulp and paper, food and beverage, and offshore drilling are all listed applications for this adapter. That covers a wide range of demanding conditions, so a tough or corrosive setup is exactly what this part is made to handle.

Answer by: Customer Support on Feb 15, 2026, 8:35 AM

Will this here fitting hold up okay in a food processing plant, or is it more for heavy industry?

Question by: Kirk G on Aug 16, 2025, 11:59 AM

This Eaton Aeroquip adapter is suitable for use in food and beverage processing, along with applications like marine/military, chemical processing, pulp and paper industries, and even off-shore drilling. So it should be right at home in a food processing environment.

Answer by: Customer Support on Aug 18, 2025, 9:58 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
FF2098T1616S	1	1-7/16-12	1-7/16-12	1.64	2.1
FF2098T0404S	0.25	9/16-18	9/16-18	0.85	1.04
FF2098T0606S	0.38	11/16-16	11/16-16	0.98	1.15
FF2098T0808S	0.5	13/16-16	13/16-16	1.1	1.49
FF2098T1010S	0.63	1-14	1-14	1.31	1.62
FF2098T1212S	0.75	1-3/16-12	1-3/16-12	1.47	1.82
