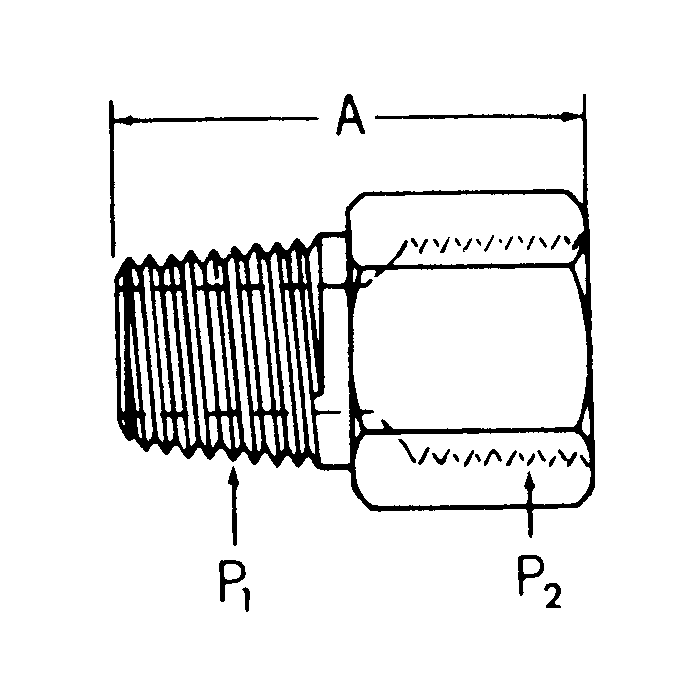

Steel Adapter, 1/2-14 Male NPT To 1-11-1/2 Female NPT, Straight

A 2.18	Alternate Part Numbers Alternate Part Number 2040-8-16S, Alternate Part Number A2040-8-16S, Alternate Part Number C1DX67, Alternate Part Number MI-00328116, Alternate Part Number MINO-00028F68869	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 5405-08-16	Thread 1 1/2-14	Thread 2 1-11-1/2	Thread Sealant No	Product Weight 0.61 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this'll hold up okay in a hydraulic system running pretty high pressure?

Question by: Diane J on Feb 19, 2026, 7:41 PM

Constructed from high-quality steel, this adapter is designed for robust performance in demanding high-pressure hydraulic systems. You can count on it for reliable connections in those environments.

Answer by: Customer Support on Feb 21, 2026, 9:32 AM

what's the thread size difference between the two ends on this adapter? trying to step up from a half inch line to a bigger female port and want to make sure i got the right part

Question by: Patty P on Dec 27, 2025, 8:35 PM

One end is a 1/2-14 male NPT and the other is a 1-1/2 inch 11-1/2 female NPT. So yes, you're stepping up from a smaller male thread to a larger female port, which is exactly what this adapter is built for. Straight configuration, no angle to it, so your lines stay in line with each other.

Answer by: Customer Support on Dec 29, 2025, 6:52 AM

Similar Products

Model Number	Thread 1	Thread 2	A
2040-2-4S	1/8-27	1/4-18	1.21
2040-4-8S	1/4-18	1/2-14	1.68
2040-12-12S	3/4-14	3/4-14	1.93
2040-12-16S	3/4-14	1-11-1/2	2.18
2040-16-16S	1-11-1/2	1-11-1/2	2.37
2040-16-20S	1-11-1/2	1-1/4-11-1/2	2.46
2040-2-2S	1/8-27	1/8-27	1.04
2040-4-4S	1/4-18	1/4-18	1.39
2040-4-6S	1/4-18	3/8-18	1.44
2040-6-6S	3/8-18	3/8-18	1.44
2040-6-8S	3/8-18	1/2-14	1.68
2040-8-12S	1/2-14	3/4-14	1.93
2040-8-8S	1/2-14	1/2-14	1.87
5405-06-04	3/8-18	1/4-18	1.44
5405-08-06	1/2-14	3/8-18	1.85
5405-08-16	1/2-14	1-11-1/2	2.18
5405-12-06	3/4-14	3/8-18	1.63
5405-12-08	3/4-14	1/2-14	1.94
5405-16-12	1-11-1/2	3/4-14	2.12
